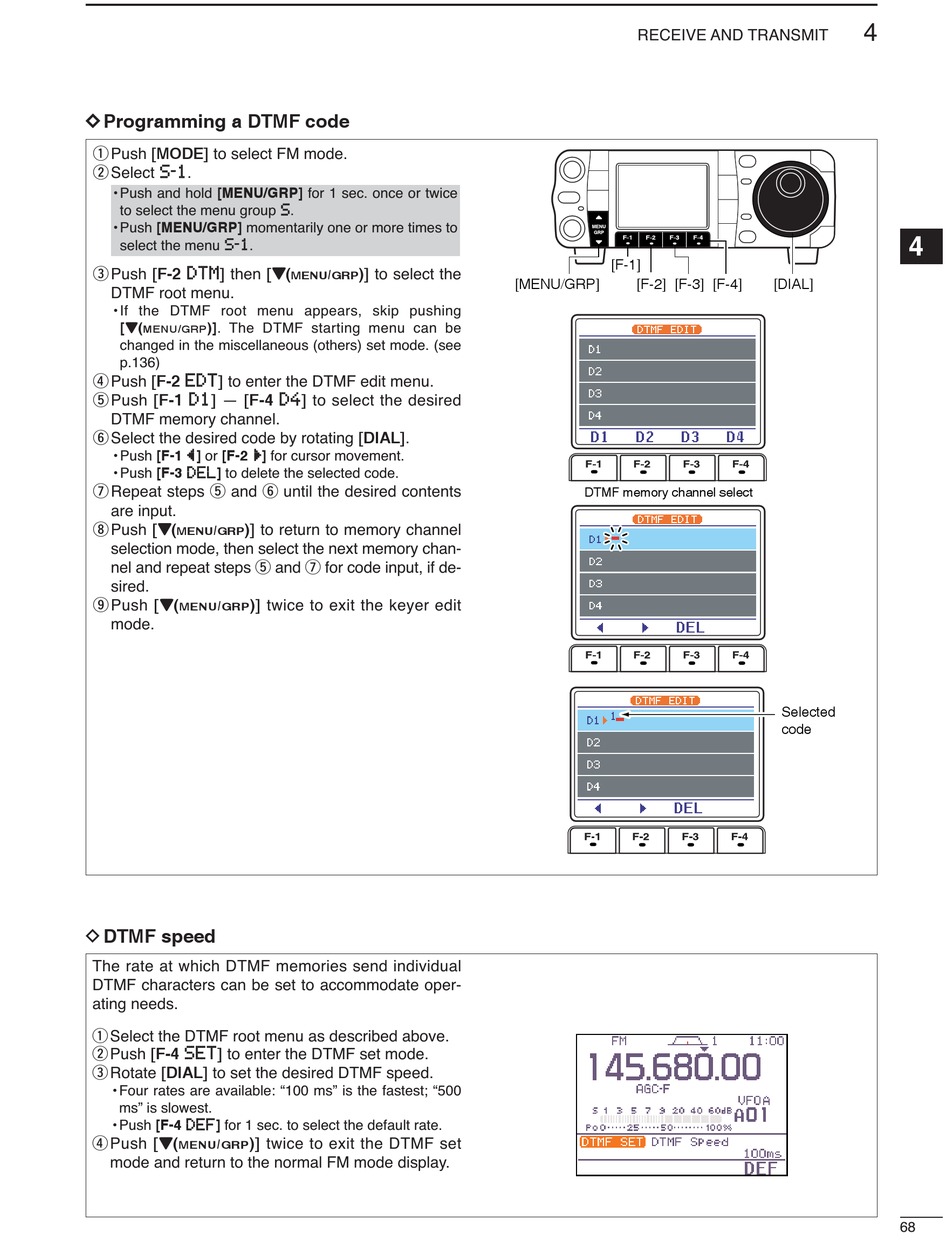

D Programming a DTMF code

q Push [MODE] to select FM mode.
w Select S-1.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group S.
• Push [MENU/GRP] momentarily one or more times to
select the menu S-1.
e Push [F-2 DTM] then [Z(
DTMF root menu.
• If the DTMF root menu appears, skip pushing
[Z( )]. The DTMF starting menu can be
/
MENU GRP
changed in the miscellaneous (others) set mode. (see
p.136)
r Push [F-2 EDT] to enter the DTMF edit menu.
t Push [F-1 D1] — [F-4 D4] to select the desired
DTMF memory channel.
y Select the desired code by rotating [DIAL].
• Push [F-1 Å] or [F-2 Ç] for cursor movement.
• Push [F-3 DEL] to delete the selected code.
u Repeat steps t and y until the desired contents
are input.
i Push [Z( )] to return to memory channel
/
MENU GRP
selection mode, then select the next memory chan-
nel and repeat steps t and u for code input, if de-
sired.
o Push [Z( )] twice to exit the keyer edit
/
MENU GRP
mode.

D DTMF speed

The rate at which DTMF memories send individual
DTMF characters can be set to accommodate oper-
ating needs.
q Select the DTMF root menu as described above.
w Push [F-4 SET] to enter the DTMF set mode.
e Rotate [DIAL] to set the desired DTMF speed.
• Four rates are available: "100 ms" is the fastest; "500
ms" is slowest.
• Push [F-4 DEF] for 1 sec. to select the default rate.
r Push [Z(
)] twice to exit the DTMF set
/
MENU GRP
mode and return to the normal FM mode display.
)] to select the
/
MENU GRP
RECEIVE AND TRANSMIT
[F-1]
[MENU/GRP] [F-2] [F-3] [F-4]
DTMF memory channel select
4
4
[DIAL]
Selected
code
