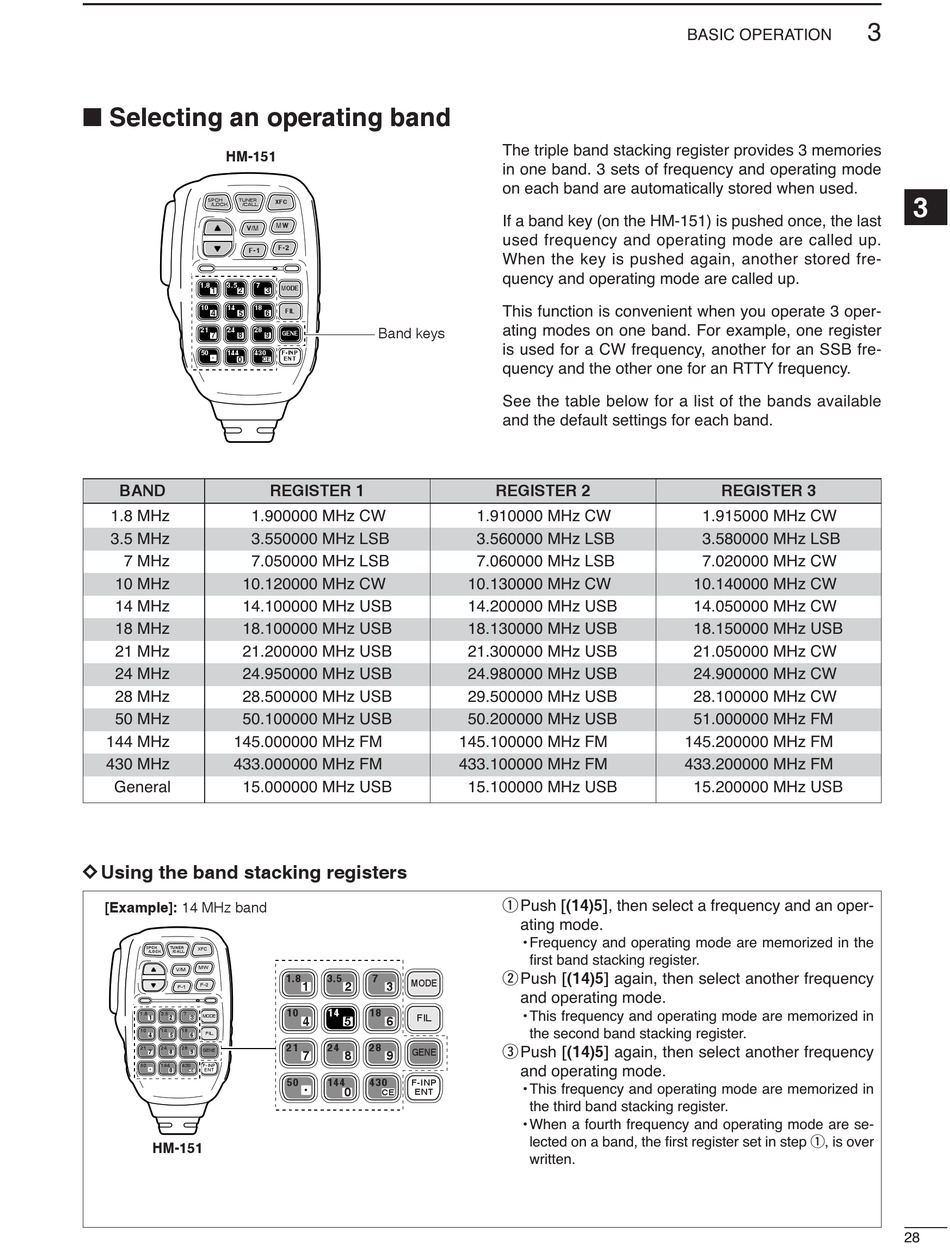

■ Selecting an operating band

HM-151
SPCH TUNER
/LOCK /CALL
V/M
F-1
1.8 3.5 7
1 2
10 14 18
4 5
21 24 28
7 8
50 144 430
.
0
CE
BAND
1.8 MHz 1.900000 MHz CW
3.5 MHz 3.550000 MHz LSB
7 MHz 7.050000 MHz LSB
10 MHz 10.120000 MHz CW
14 MHz 14.100000 MHz USB
18 MHz 18.100000 MHz USB
21 MHz 21.200000 MHz USB
24 MHz 24.950000 MHz USB
28 MHz 28.500000 MHz USB
50 MHz 50.100000 MHz USB
144 MHz 145.000000 MHz FM
430 MHz 433.000000 MHz FM
General 15.000000 MHz USB

D Using the band stacking registers

[Example]: 14 MHz band
SPCH TUNER
XFC
/LOCK /CALL
MW
V/M
F-2
F-1
1.8 3.5 7
MODE
1 2 3
10 14 18
FIL
4 5 6
21 24 28
7 8 9 GENE
50 144 430
. F-INP
0 ENT
CE
HM-151
XFC
MW
F-2
MODE
3
FIL
6
Band keys
GENE
9
F-INP
ENT
REGISTER 1
1.8 3.5 7
MODE
1 2 3
10 14 18
FIL
4 5 6
21 24 28
GENE
7 8 9
50 144 430
. F-INP
0
ENT
CE
The triple band stacking register provides 3 memories
in one band. 3 sets of frequency and operating mode
on each band are automatically stored when used.
If a band key (on the HM-151) is pushed once, the last
used frequency and operating mode are called up.
When the key is pushed again, another stored fre-
quency and operating mode are called up.
This function is convenient when you operate 3 oper-
ating modes on one band. For example, one register
is used for a CW frequency, another for an SSB fre-
quency and the other one for an RTTY frequency.
See the table below for a list of the bands available
and the default settings for each band.
REGISTER 2
1.910000 MHz CW
3.560000 MHz LSB
7.060000 MHz LSB
10.130000 MHz CW
14.200000 MHz USB
18.130000 MHz USB
21.300000 MHz USB
24.980000 MHz USB
29.500000 MHz USB
50.200000 MHz USB
145.100000 MHz FM
433.100000 MHz FM
15.100000 MHz USB
q Push [(14)5], then select a frequency and an oper-
ating mode.
• Frequency and operating mode are memorized in the
first band stacking register.
w Push [(14)5] again, then select another frequency
and operating mode.
• This frequency and operating mode are memorized in
the second band stacking register.
e Push [(14)5] again, then select another frequency
and operating mode.
• This frequency and operating mode are memorized in
the third band stacking register.
• When a fourth frequency and operating mode are se-
lected on a band, the first register set in step q, is over
written.
