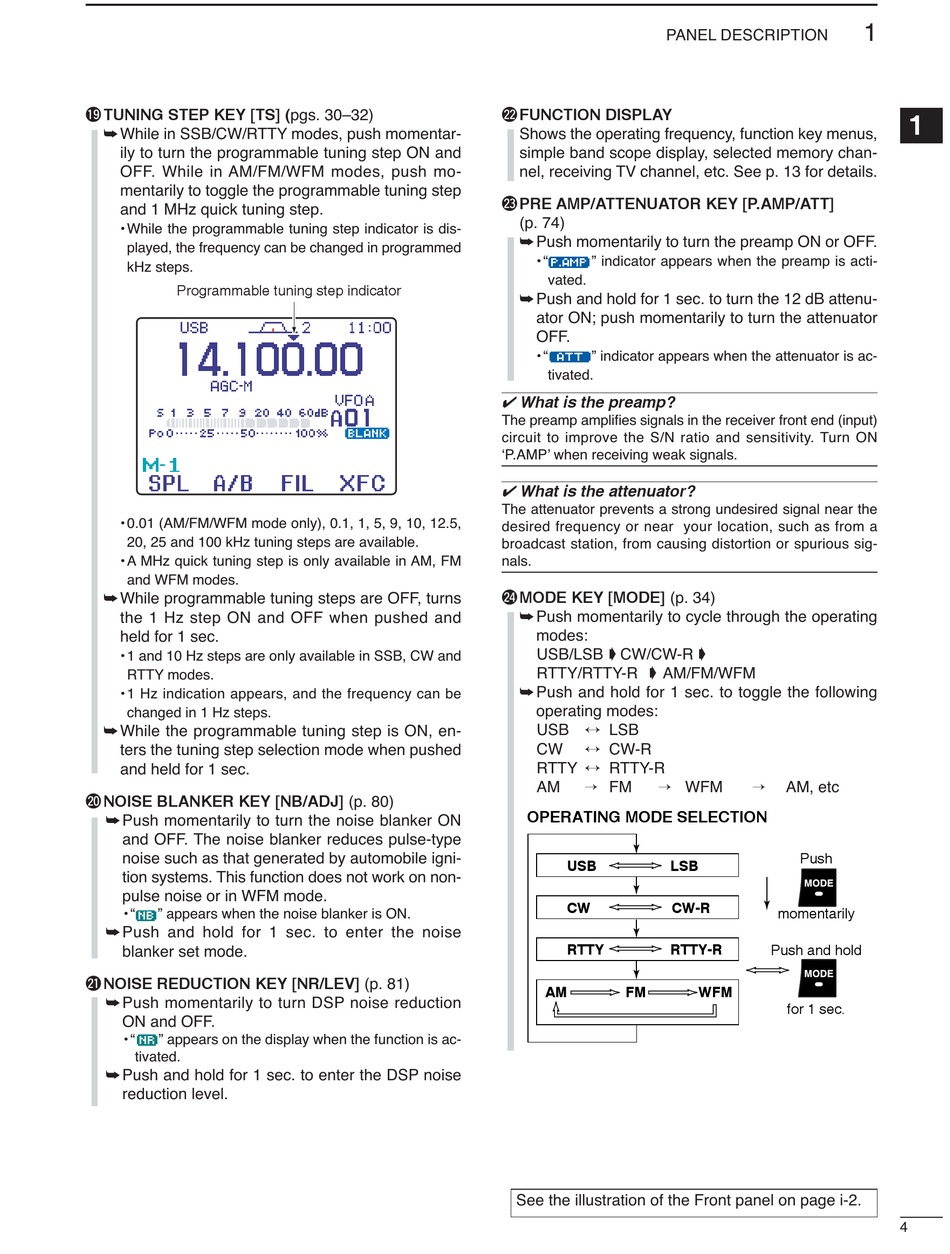

!9 TUNING STEP KEY [TS] (pgs. 30–32)
➥ While in SSB/CW/RTTY modes, push momentar-
ily to turn the programmable tuning step ON and
OFF. While in AM/FM/WFM modes, push mo-
mentarily to toggle the programmable tuning step
and 1 MHz quick tuning step.
• While the programmable tuning step indicator is dis-
played, the frequency can be changed in programmed
kHz steps.
Programmable tuning step indicator
• 0.01 (AM/FM/WFM mode only), 0.1, 1, 5, 9, 10, 12.5,
20, 25 and 100 kHz tuning steps are available.
• A MHz quick tuning step is only available in AM, FM
and WFM modes.
➥ While programmable tuning steps are OFF, turns
the 1 Hz step ON and OFF when pushed and
held for 1 sec.
• 1 and 10 Hz steps are only available in SSB, CW and
RTTY modes.
• 1 Hz indication appears, and the frequency can be
changed in 1 Hz steps.
➥ While the programmable tuning step is ON, en-
ters the tuning step selection mode when pushed
and held for 1 sec.

@0 NOISE BLANKER KEY [NB/ADJ] (p. 80)

➥ Push momentarily to turn the noise blanker ON
and OFF. The noise blanker reduces pulse-type
noise such as that generated by automobile igni-
tion systems. This function does not work on non-
pulse noise or in WFM mode.
• " " appears when the noise blanker is ON.
➥ Push and hold for 1 sec. to enter the noise
blanker set mode.

@1 NOISE REDUCTION KEY [NR/LEV] (p. 81)

➥ Push momentarily to turn DSP noise reduction
ON and OFF.
• " " appears on the display when the function is ac-
tivated.
➥ Push and hold for 1 sec. to enter the DSP noise
reduction level.
PANEL DESCRIPTION
@2 FUNCTION DISPLAY
Shows the operating frequency, function key menus,
simple band scope display, selected memory chan-
nel, receiving TV channel, etc. See p. 13 for details.
@3 PRE AMP/ATTENUATOR KEY [P.AMP/ATT]
(p. 74)
➥ Push momentarily to turn the preamp ON or OFF.
• " " indicator appears when the preamp is acti-
vated.
➥ Push and hold for 1 sec. to turn the 12 dB attenu-
ator ON; push momentarily to turn the attenuator
OFF.
• " " indicator appears when the attenuator is ac-
tivated.
✔ What is the preamp?
The preamp amplifies signals in the receiver front end (input)
circuit to improve the S/N ratio and sensitivity. Turn ON
'P.AMP' when receiving weak signals.
✔ What is the attenuator?
The attenuator prevents a strong undesired signal near the
desired frequency or near your location, such as from a
broadcast station, from causing distortion or spurious sig-
nals.

@4 MODE KEY [MODE] (p. 34)

➥ Push momentarily to cycle through the operating
modes:
USB/LSB ➧ CW/CW-R ➧
RTTY/RTTY-R ➧ AM/FM/WFM
➥ Push and hold for 1 sec. to toggle the following
operating modes:
USB ↔ LSB
↔ CW-R
CW
RTTY ↔ RTTY-R
→ FM → WFM
AM
OPERATING MODE SELECTION
USB LSB
CW CW-R
RTTY
RTTY-R
AM FM
See the illustration of the Front panel on page i-2.
1
→
AM, etc
Push
momentarily
Push and hold
WFM
for 1 sec.
1
4
