1

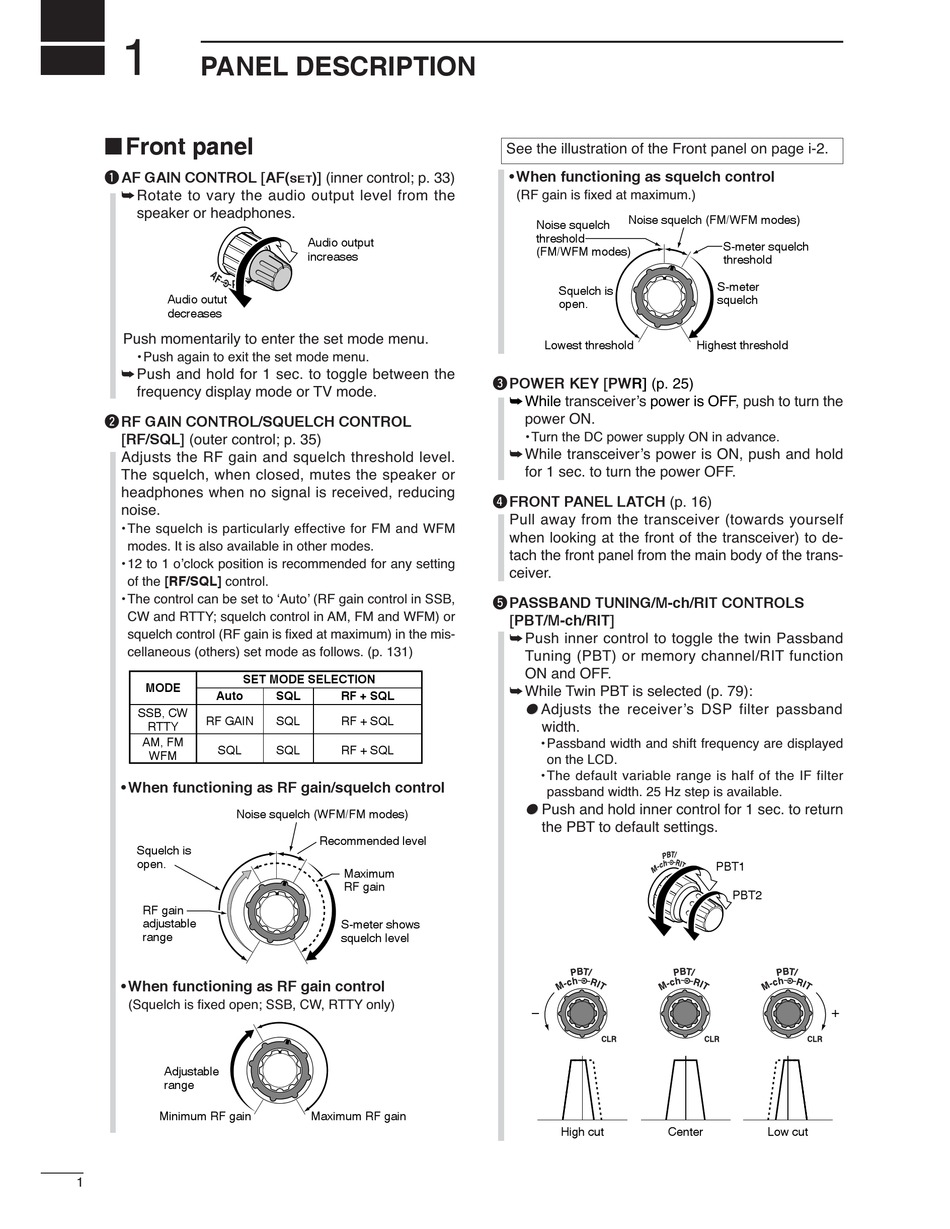

PANEL DESCRIPTION

■ Front panel

q AF GAIN CONTROL [AF(
➥ Rotate to vary the audio output level from the
speaker or headphones.
Audio outut
decreases
Push momentarily to enter the set mode menu.
• Push again to exit the set mode menu.
➥ Push and hold for 1 sec. to toggle between the
frequency display mode or TV mode.
w RF GAIN CONTROL/SQUELCH CONTROL

[RF/SQL] (outer control; p. 35)

Adjusts the RF gain and squelch threshold level.
The squelch, when closed, mutes the speaker or
headphones when no signal is received, reducing
noise.
• The squelch is particularly effective for FM and WFM
modes. It is also available in other modes.
• 12 to 1 o'clock position is recommended for any setting
of the [RF/SQL] control.
• The control can be set to 'Auto' (RF gain control in SSB,
CW and RTTY; squelch control in AM, FM and WFM) or
squelch control (RF gain is fixed at maximum) in the mis-
cellaneous (others) set mode as follows. (p. 131)
SET MODE SELECTION
MODE
Auto
SSB, CW
RF GAIN
RTTY
AM, FM
SQL
WFM
• When functioning as RF gain/squelch control
Noise squelch (WFM/FM modes)
Squelch is
open.
RF gain
adjustable
range
• When functioning as RF gain control
(Squelch is fixed open; SSB, CW, RTTY only)
Adjustable
range
Minimum RF gain
1
)] (inner control; p. 33)
SET
Audio output
increases
SQL RF + SQL
SQL RF + SQL
SQL RF + SQL
Recommended level
Maximum
RF gain
S-meter shows
squelch level
Maximum RF gain
See the illustration of the Front panel on page i-2.
• When functioning as squelch control
(RF gain is fixed at maximum.)
Noise squelch (FM/WFM modes)
Noise squelch
threshold
(FM/WFM modes)
Squelch is
open.
Lowest threshold
e POWER KEY [PWR] (p. 25)
➥ While
transceiver's power is
power ON.
• Turn the DC power supply ON in advance.
➥ While transceiver's power is ON, push and hold
for 1 sec. to turn the power OFF.

r FRONT PANEL LATCH (p. 16)

Pull away from the transceiver (towards yourself
when looking at the front of the transceiver) to de-
tach the front panel from the main body of the trans-
ceiver.
t PASSBAND TUNING/M-ch/RIT CONTROLS
[PBT/M-ch/RIT]
➥ Push inner control to toggle the twin Passband
Tuning (PBT) or memory channel/RIT function
ON and OFF.
➥ While Twin PBT is selected (p. 79):
● Adjusts the receiver's DSP filter passband
●
width.
• Passband width and shift frequency are displayed
on the LCD.
• The default variable range is half of the IF filter
passband width. 25 Hz step is available.
● Push and hold inner control for 1 sec. to return ●
the PBT to default settings.
–
High cut Center
S-meter squelch
threshold
S-meter
squelch
Highest threshold
OFF, push to turn the
PBT1
PBT2
+
Low cut
