4
RECEIVE AND TRANSMIT

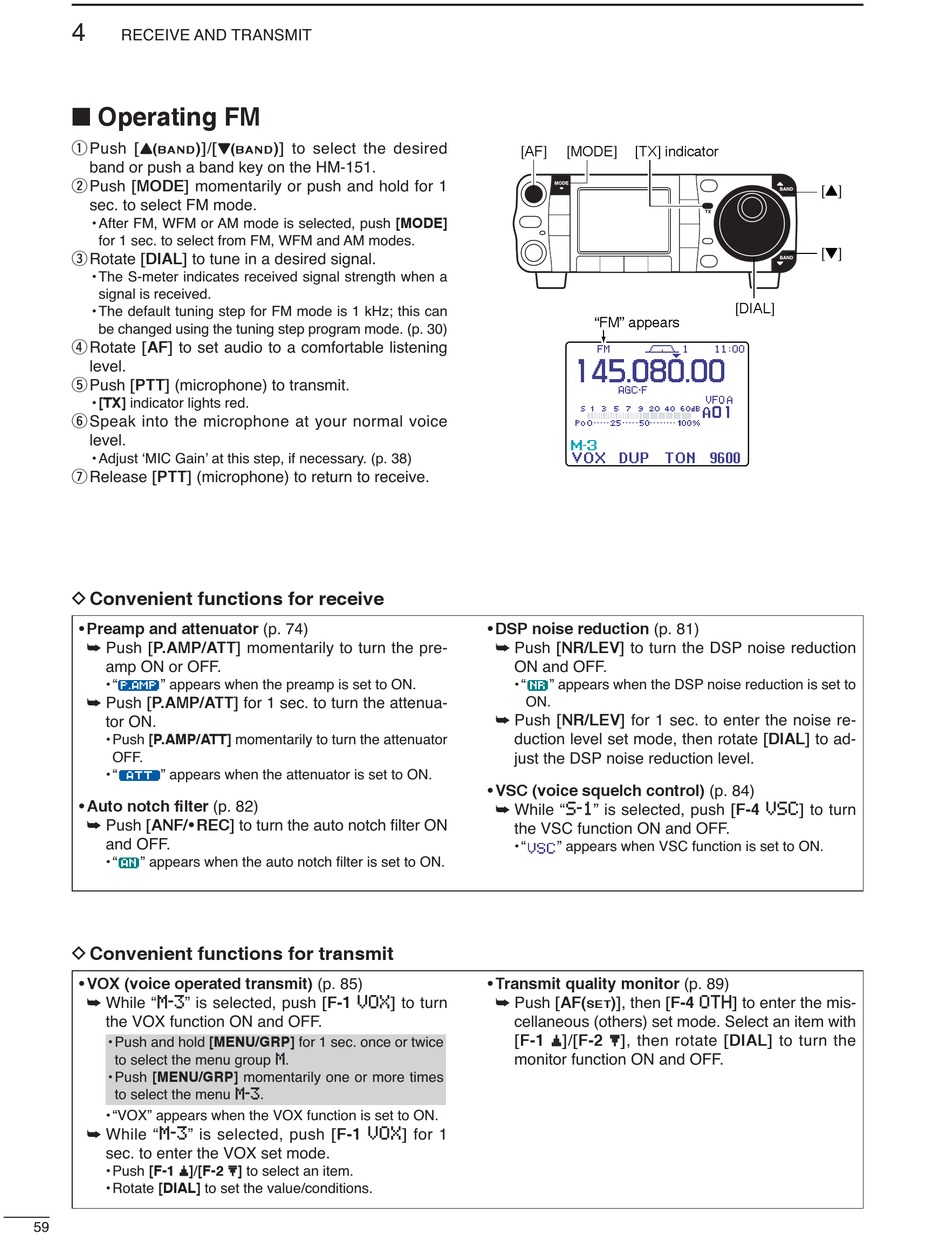

■ Operating FM

q Push [
)]/[
Y(
BAND
band or push a band key on the HM-151.
w Push [MODE] momentarily or push and hold for 1
sec. to select FM mode.
• After FM, WFM or AM mode is selected, push [MODE]
for 1 sec. to select from FM, WFM and AM modes.
e Rotate [DIAL] to tune in a desired signal.
• The S-meter indicates received signal strength when a
signal is received.
• The default tuning step for FM mode is 1 kHz; this can
be changed using the tuning step program mode. (p. 30)
r Rotate [AF] to set audio to a comfortable listening
level.
t Push [PTT] (microphone) to transmit.
• [TX] indicator lights red.
y Speak into the microphone at your normal voice
level.
• Adjust 'MIC Gain' at this step, if necessary. (p. 38)
u Release [PTT] (microphone) to return to receive.

D Convenient functions for receive

• Preamp and attenuator (p. 74)
➥ Push [P.AMP/ATT] momentarily to turn the pre-
amp ON or OFF.
• " " appears when the preamp is set to ON.
➥ Push [P.AMP/ATT] for 1 sec. to turn the attenua-
tor ON.
• Push [P.AMP/ATT] momentarily to turn the attenuator
OFF.
• " " appears when the attenuator is set to ON.
• Auto notch filter (p. 82)
➥ Push [ANF/• REC] to turn the auto notch filter ON
and OFF.
• " " appears when the auto notch filter is set to ON.

D Convenient functions for transmit

• VOX (voice operated transmit) (p. 85)
➥ While "M-3" is selected, push [F-1 VOX] to turn
the VOX function ON and OFF.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group M.
• Push [MENU/GRP] momentarily one or more times
to select the menu M-3.
• "VOX" appears when the VOX function is set to ON.
➥ While "M-3" is selected, push [F-1 VOX] for 1
sec. to enter the VOX set mode.
• Push [F-1 ≤]/[F-2 ≥] to select an item.
• Rotate [DIAL] to set the value/conditions.
59
)] to select the desired
Z(
BAND [AF] [MODE] [TX] indicator
"FM" appears
• DSP noise reduction (p. 81)
➥ Push [NR/LEV] to turn the DSP noise reduction
ON and OFF.
• " " appears when the DSP noise reduction is set to
ON.
➥ Push [NR/LEV] for 1 sec. to enter the noise re-
duction level set mode, then rotate [DIAL] to ad-
just the DSP noise reduction level.
• VSC (voice squelch control) (p. 84)
➥ While "S-1" is selected, push [F-4 VSC] to turn
the VSC function ON and OFF.
• " " appears when VSC function is set to ON.
• Transmit quality monitor (p. 89)
➥ Push [AF( )], then [F-4 OTH] to enter the mis-
SET
cellaneous (others) set mode. Select an item with
[F-1 ≤]/[F-2 ≥], then rotate [DIAL] to turn the
monitor function ON and OFF.
[Y]
[Z]
[DIAL]
