1
PANEL DESCRIPTION

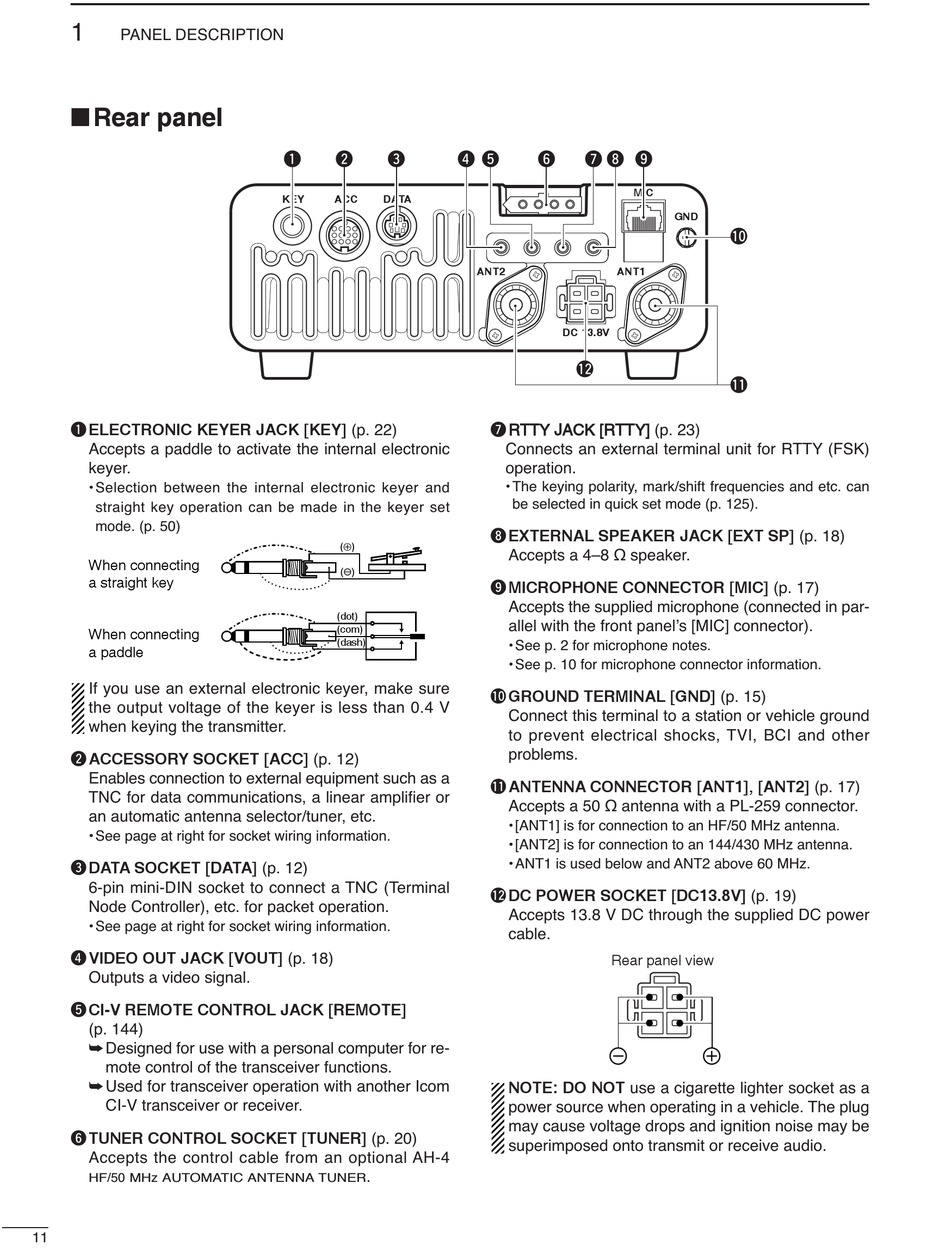

■ Rear panel

q ELECTRONIC KEYER JACK [KEY] (p. 22)
Accepts a paddle to activate the internal electronic
keyer.
• Selection between the internal electronic keyer and
straight key operation can be made in the keyer set
mode. (p. 50)
When connecting
a straight key
When connecting
a paddle
If you use an external electronic keyer, make sure
the output voltage of the keyer is less than 0.4 V
when keying the transmitter.
w ACCESSORY SOCKET [ACC] (p. 12)
Enables connection to external equipment such as a
TNC for data communications, a linear amplifier or
an automatic antenna selector/tuner, etc.
• See page at right for socket wiring information.
e DATA SOCKET [DATA] (p. 12)
6-pin mini-DIN socket to connect a TNC (Terminal
Node Controller), etc. for packet operation.
• See page at right for socket wiring information.
r VIDEO OUT JACK [VOUT] (p. 18)
Outputs a video signal.
t CI-V REMOTE CONTROL JACK [REMOTE]
(p. 144)
➥ Designed for use with a personal computer for re-
mote control of the transceiver functions.
➥ Used for transceiver operation with another Icom
CI-V transceiver or receiver.
y TUNER CONTROL SOCKET [TUNER] (p. 20)
Accepts the control cable from an optional AH-4
HF /50 MH z AUTOMATIC ANTENNA TUNER
11
q w e r t
KEY ACC DATA
( )
(dot)
(com)
(dash)
.
y u i o
MIC
ANT2 ANT1
DC 13.8V
!2
u RTTY JACK [RTTY] (p. 23)
Connects an external terminal unit for RTTY (FSK)
operation.
• The keying polarity, mark/shift frequencies and etc. can
be selected in quick set mode (p. 125).
i EXTERNAL SPEAKER JACK [EXT SP] (p. 18)
Accepts a 4–8 speaker.
o MICROPHONE CONNECTOR [MIC] (p. 17)
Accepts the supplied microphone (connected in par-
allel with the front panel's [MIC] connector).
• See p. 2 for microphone notes.
• See p. 10 for microphone connector information.
!0 GROUND TERMINAL [GND] (p. 15)
Connect this terminal to a station or vehicle ground
to prevent electrical shocks, TVI, BCI and other
problems.
!1 ANTENNA CONNECTOR [ANT1], [ANT2] (p. 17)
Accepts a 50 antenna with a PL-259 connector.
• [ANT1] is for connection to an HF/50 MHz antenna.
• [ANT2] is for connection to an 144/430 MHz antenna.
• ANT1 is used below and ANT2 above 60 MHz.
!2 DC POWER SOCKET [DC13.8V] (p. 19)
Accepts 13.8 V DC through the supplied DC power
cable.
Rear panel view
NOTE: DO NOT use a cigarette lighter socket as a
power source when operating in a vehicle. The plug
may cause voltage drops and ignition noise may be
superimposed onto transmit or receive audio.
GND
!0
!1
