Duplex Paper Top Assembly (D-Top Unit And D-Lower Unit) Removal - Lexmark C720 Service Manual

5024-001
Duplex Paper Top Assembly (D-Top Unit and
D-Lower Unit) Removal
1. Remove cover low (R and L). See
(R) Removal" on page 4-105
(L) Removal" on page
2. Remove the solenoid connector and harness from the clamp.
3. Remove fan connector and the harness from the clamp.
4. Remove the set screws M4X8 (2) from the support pin at both
sides (left & right).

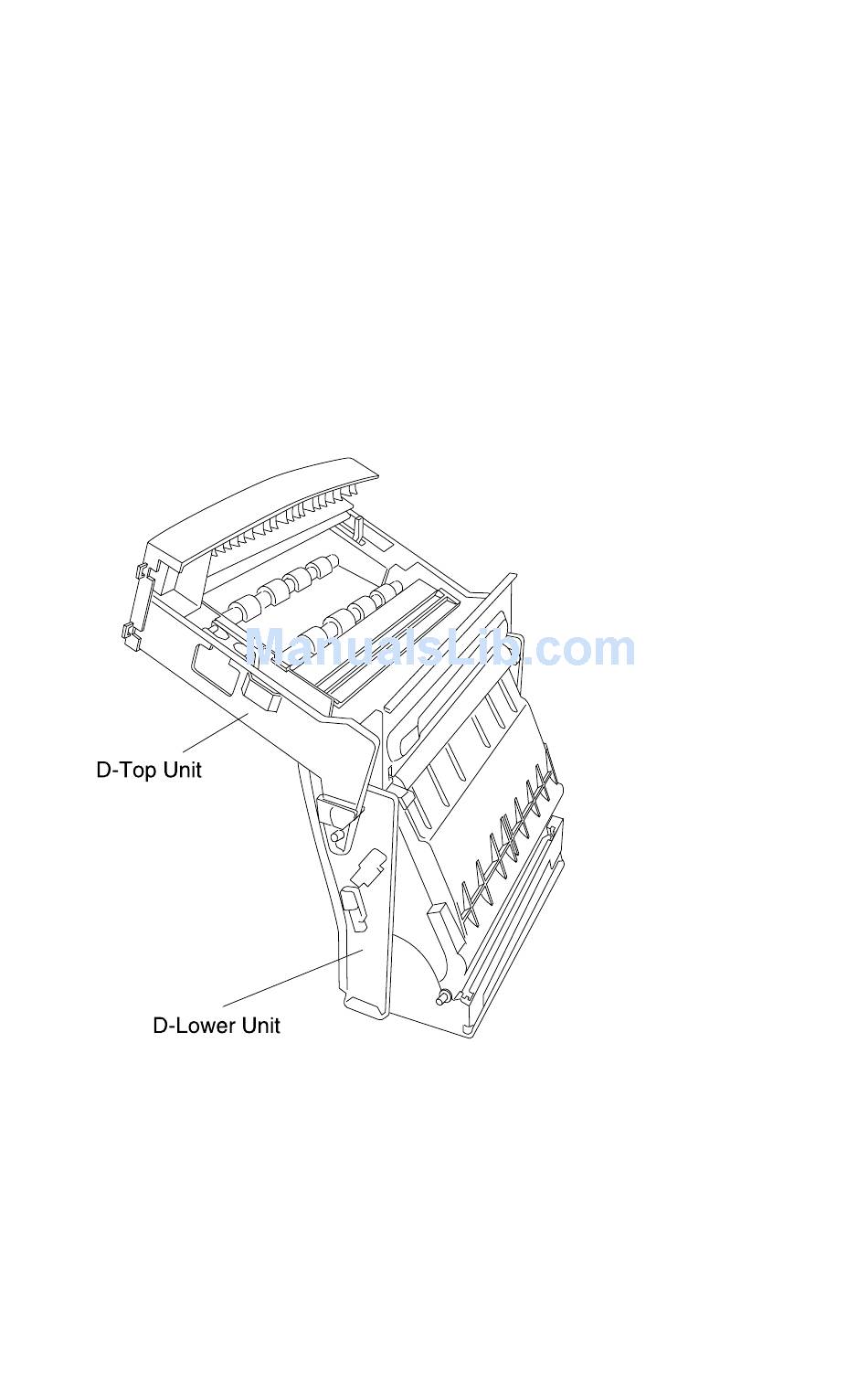

5. Separate D top unit and D lower unit.
"Duplex Side Cover Low
and "Duplex Side Cover Low
4-106, for more information.
Repair Information
4-121
