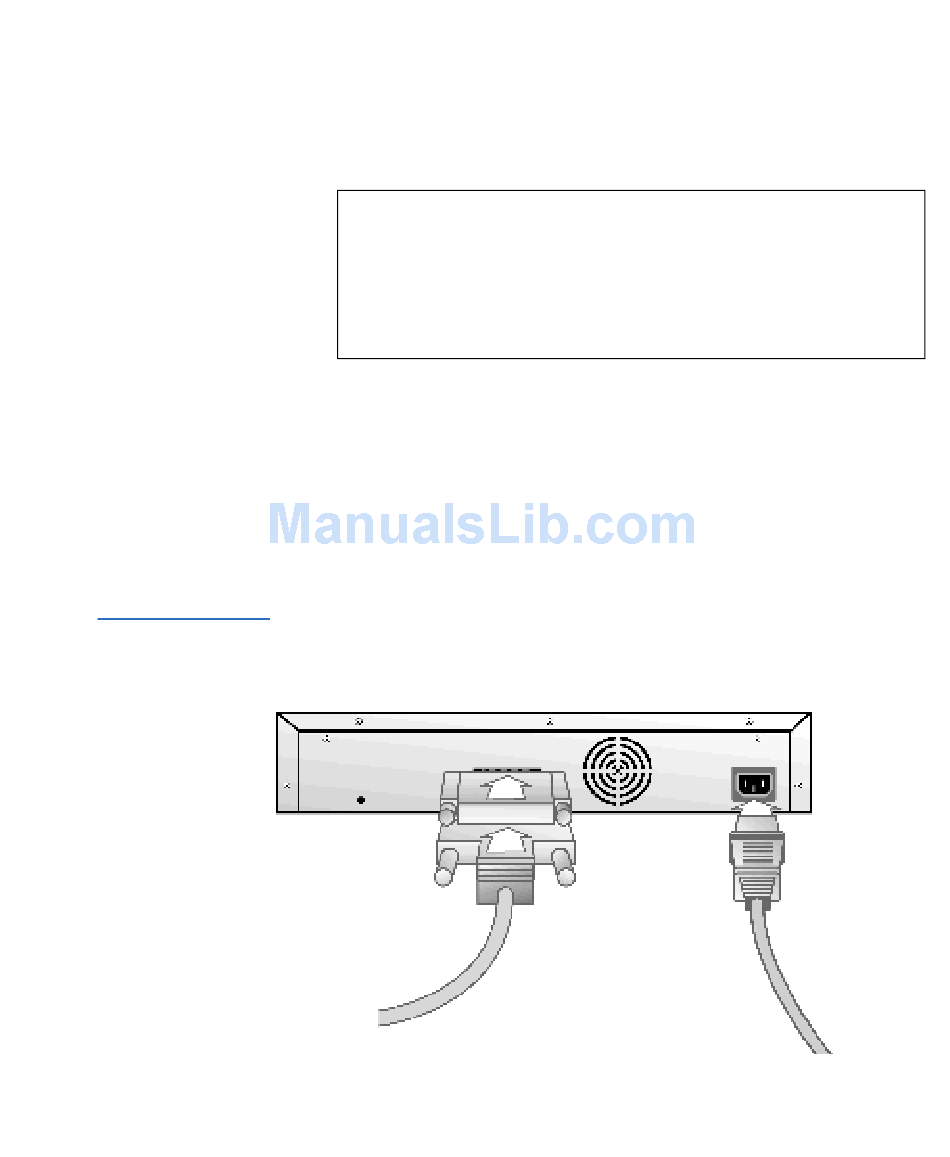

Figure 8 Attaching
SCSI and Power
Cables
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Attach the other end of the SCSI cable to the connector on the
3
SCSI host adapter or to the connector on the previous device on
the SCSI bus.
If the supplied SCSI cable does not fit the connector
Note:
on your SCSI host adapter, you either have an
incompatible SCSI host adapter or you need to
purchase a cable adapter. Contact your service
representative or your SCSI host adapter
manufacturer for information.
Attach the terminator to the remaining SCSI connector on the
4
rear panel of the ValueLoader (if the ValueLoader is the last or
only device on the SCSI bus). Otherwise, attach the cable to the
next device on the SCSI bus. Make sure that the last device on
the SCSI bus is properly terminated.
Attach the female connector on the power cable to the power
5
connector on the rear panel of the ValueLoader.
Installing the ValueLoader
Connecting the SCSI and Power Cables
13
