Note: Figure 2-3 does not show a terminator because none of the three drives are at the
end of the SCSI bus.
5. Secure the SCSI cable connectors by tightening the screws until snug.
Note: If the supplied SCSI cable does not fit the connector on your SCSI host adapter, you
either have an incompatible SCSI host adapter or you need to purchase a cable adapter.
Contact Benchmark Storage Innovations or your SCSI host adapter manufacturer for
information.
6. Make sure the power switch on the rear panel of your DLT-VS80esDesktop Drive is in
the OFF position. Attach the female connector on the power cable to the power
connector on the rear panel of the drive.
Use caution when plugging the power cord into an electrical outlet. Hazardous voltages
are present in the sockets of the outlet.
7. Plug in the power cable to a nearby power outlet.
Terminator
(or cable to
next SCSI
device)
FC Tw DLTVS80 e
SCSI Cable
To computer or
previous SCSI
device

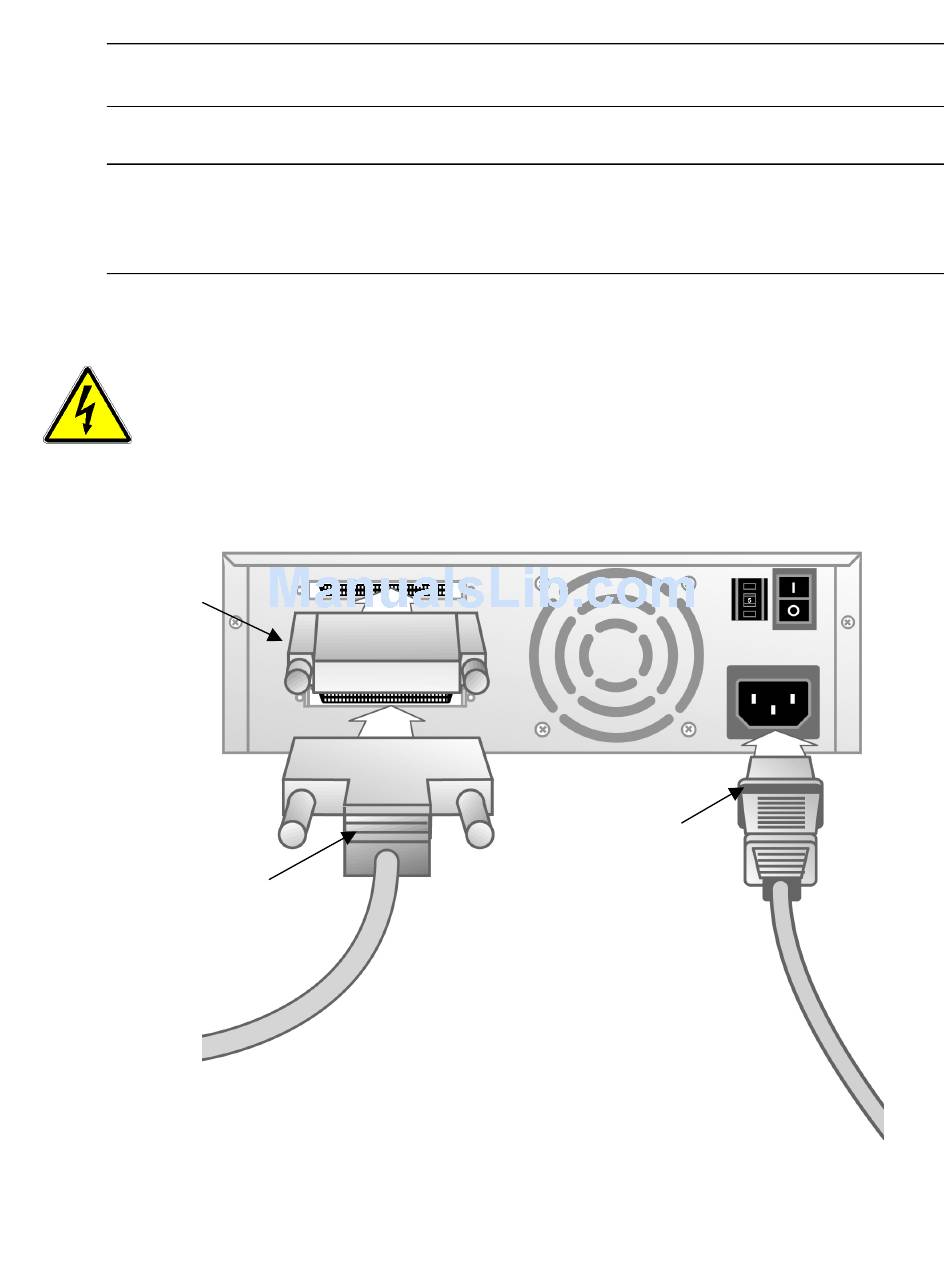

Figure 2-4: Attach Terminator if necessary, SCSI, and Power Cables to your Drive

8. Attach the power cables to the host server or workstation and all attached devices.
Power Cable
2-7
