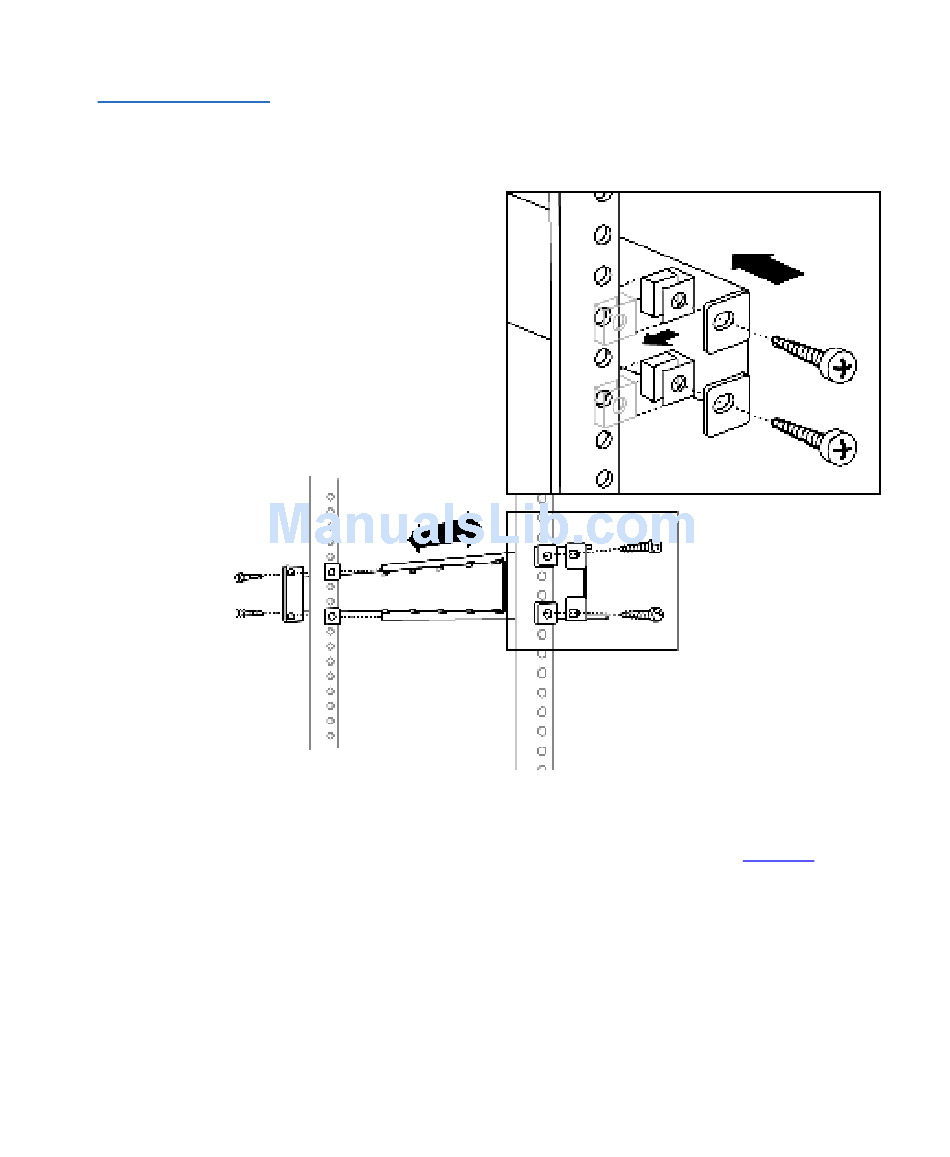

Figure 6 Installing
Rails on Rack (Left
Side Shown)
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Slide the ValueLoader onto the rails and secure the mounting
4
bracket to the rack using the screws and clip nuts from the
rackmount hardware package, as shown in
Installing the ValueLoader
Installing the ValueLoader into a Rack
figure 7.
11
