Installing the ValueLoader
Installing the ValueLoader into a Rack

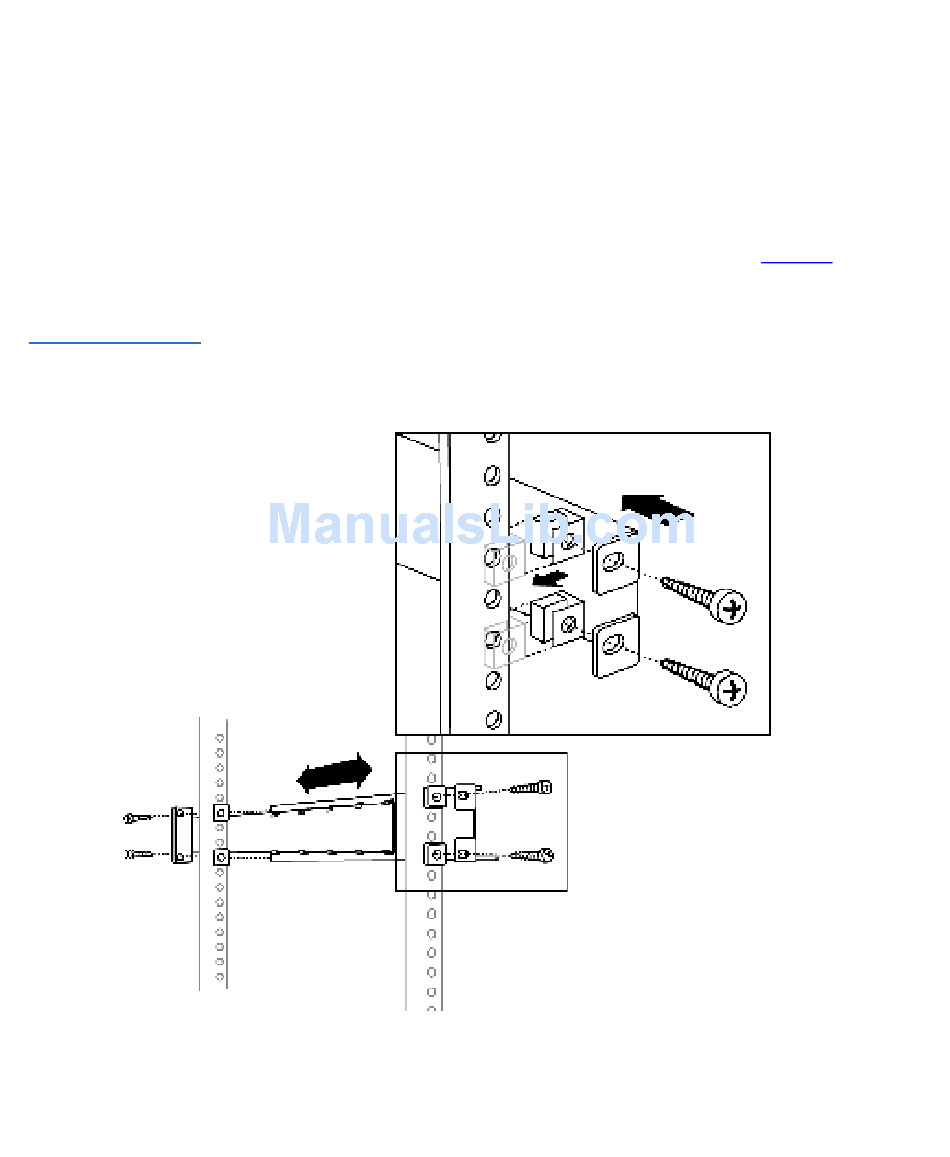

Figure 6 Installing
Rails in the Rack (Left
Side Shown)
12
Using screws and clip nuts from the rackmount hardware
3
package, secure one rail to each side of the rack in the location
where you plan to install the ValueLoader.
• Be sure to secure both the front and rear of each rail. The
rails extend to fit a variety of rack depths.
• The correct orientation of the left rail is shown in
Repeat for the right rail.
ValueLoader LTO Tape Autoloader User Manual
figure 6.
