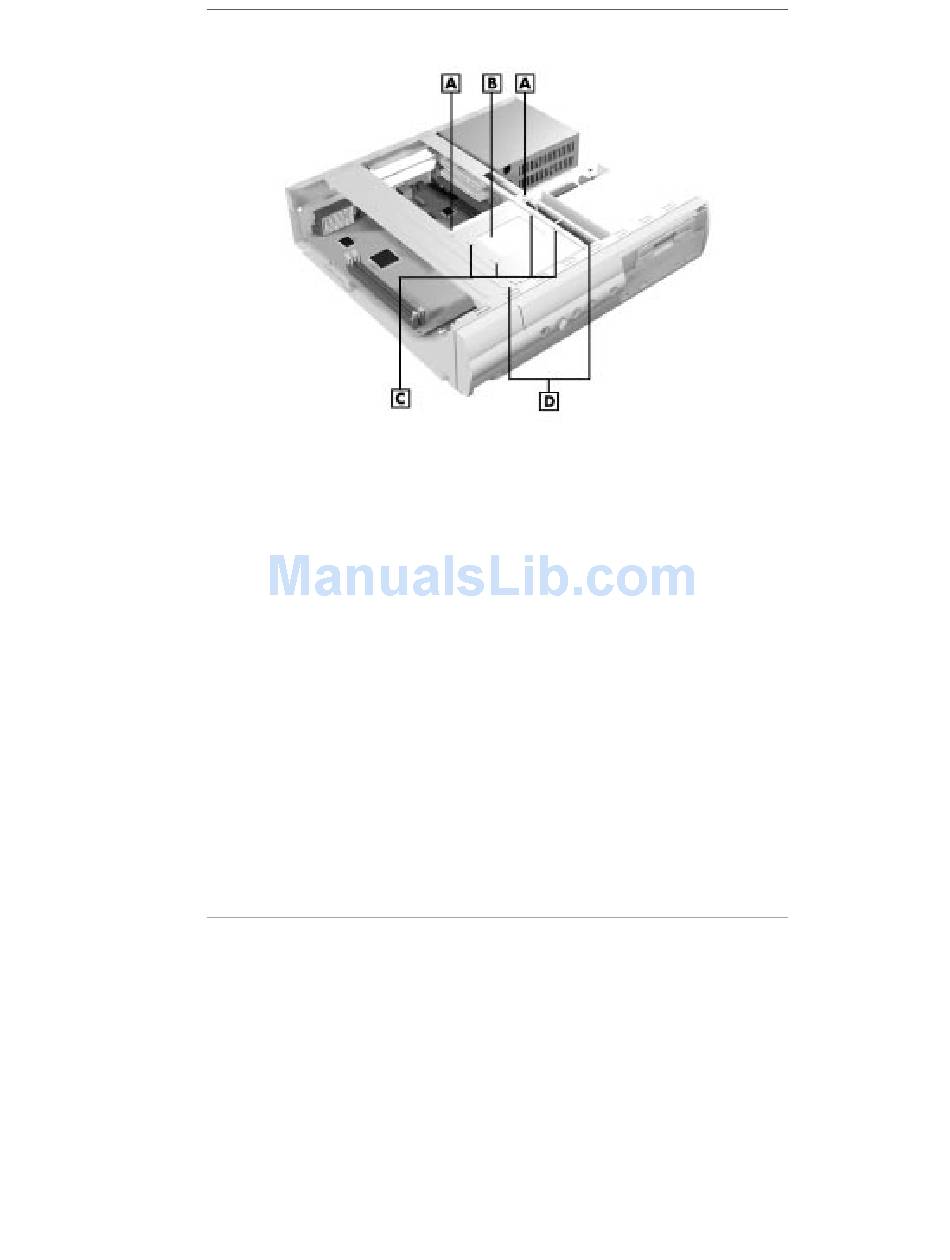

Internal hard drive screws — small desktop
A – Bracket Screw
B – Hard Drive
6. With the cable connectors toward the rear of the system,
position the bracket and hard drive on the chassis braces
and align the screw holes.
7. Insert and tighten the two screws to secure the bracket to
the chassis braces.
8. Connect the device cables (see "Connecting Device
Cables" and "IDE Drive Cabling").
9. Replace the system unit cover (see "Replacing the Small
Desktop or Desktop Cover").
10. Run the Setup program to set the new configuration (see
"CMOS Setup Utility" in Chapter 3).
C – Hard Drive Screws
D – Chassis Braces
Installing Options 5-91
