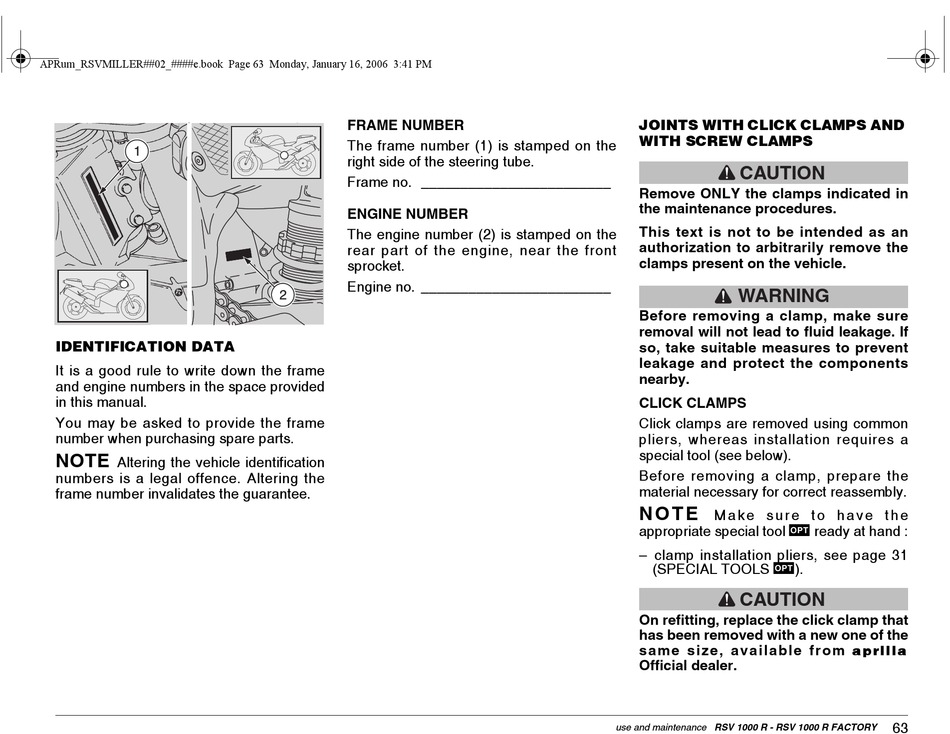

IDENTIFICATION DATA

It is a good rule to write down the frame
and engine numbers in the space provided
in this manual.
You may be asked to provide the frame
number when purchasing spare parts.
NOTE
Altering the vehicle identification
numbers is a legal offence. Altering the
frame number invalidates the guarantee.
FRAME NUMBER
The frame number (1) is stamped on the
right side of the steering tube.
Frame no. ________________________
ENGINE NUMBER
The engine number (2) is stamped on the
rear part of the engine, near the front
sprocket.
Engine no. ________________________
JOINTS WITH CLICK CLAMPS AND
WITH SCREW CLAMPS
CAUTION
Remove ONLY the clamps indicated in
the maintenance procedures.
This text is not to be intended as an
authorization to arbitrarily remove the
clamps present on the vehicle.
WARNING
Before removing a clamp, make sure
removal will not lead to fluid leakage. If
so, take suitable measures to prevent
leakage and protect the components
nearby.
CLICK CLAMPS
Click clamps are removed using common
pliers, whereas installation requires a
special tool (see below).
Before removing a clamp, prepare the
material necessary for correct reassembly.
N O T E
M a k e s u r e t o h a v e t h e
appropriate special tool  ready at hand :
√ clamp installation pliers, see page 31
(SPECIAL TOOLS ).
CAUTION
On refitting, replace the click clamp that
has been removed with a new one of the
same size, available from
Official dealer.
