ACCESSORIES

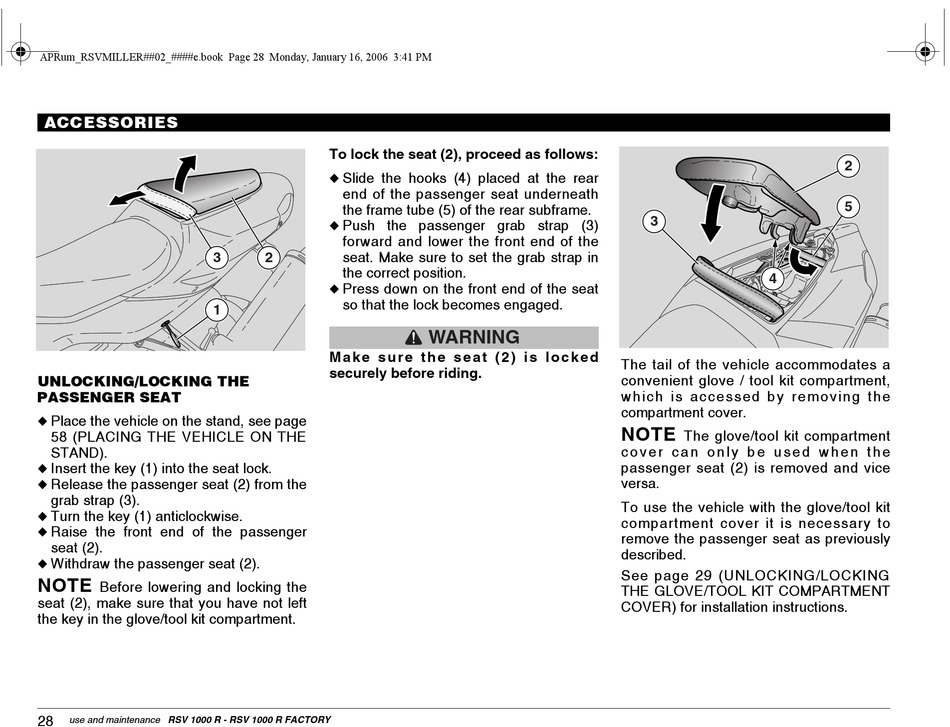

UNLOCKING/LOCKING THE
PASSENGER SEAT
Place the vehicle on the stand, see page
u
58 (PLACING THE VEHICLE ON THE
STAND).
Insert the key (1) into the seat lock.
u
Release the passenger seat (2) from the
u
grab strap (3).
Turn the key (1) anticlockwise.
u
Raise the front end of the passenger
u
seat (2).
Withdraw the passenger seat (2).
u
NOTE
Before lowering and locking the
seat (2), make sure that you have not left
the key in the glove/tool kit compartment.
28
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
To lock the seat (2), proceed as follows:
Slide the hooks (4) placed at the rear
u
end of the passenger seat underneath
the frame tube (5) of the rear subframe.
Push the passenger grab strap (3)
u
forward and lower the front end of the
seat. Make sure to set the grab strap in
3 2
the correct position.
Press down on the front end of the seat
u
so that the lock becomes engaged.
1
M a k e s u r e t h e s e a t ( 2 ) i s l o c k e d
securely before riding.
WARNING
3
4
The tail of the vehicle accommodates a
convenient glove / tool kit compartment,
which is accessed by removing the
compartment cover.
NOTE
The glove/tool kit compartment
c o v e r c a n o n l y b e u s e d w h e n t h e
passenger seat (2) is removed and vice
versa.
To use the vehicle with the glove/tool kit
compartment cover it is necessary to
remove the passenger seat as previously
described.
See page 29 (UNLOCKING/LOCKING
THE GLOVE/TOOL KIT COMPARTMENT
COVER) for installation instructions.
