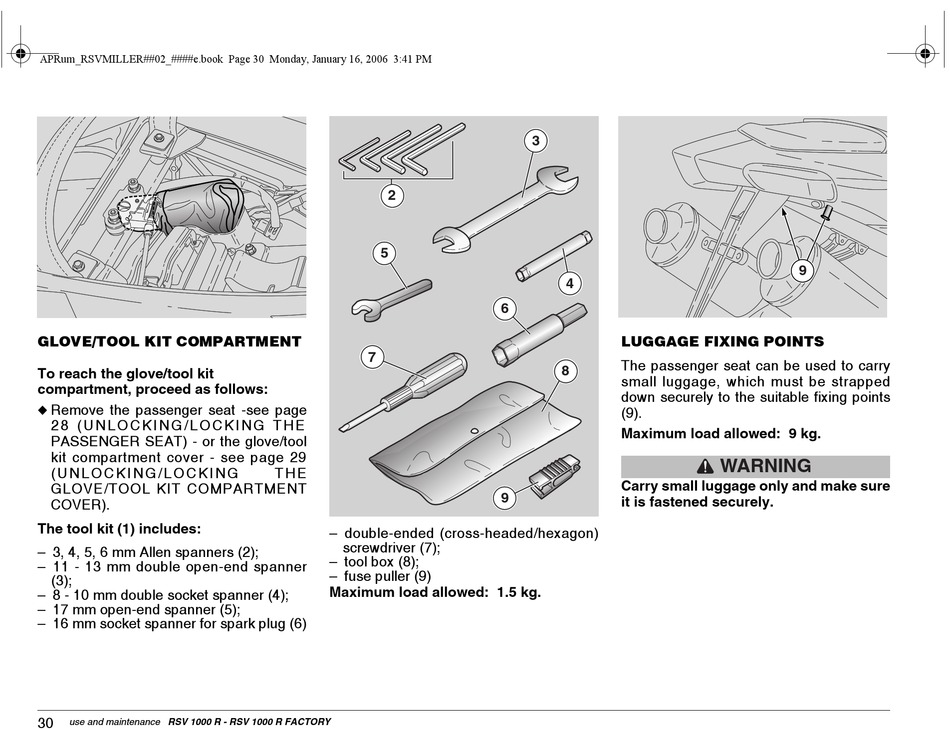

GLOVE/TOOL KIT COMPARTMENT

To reach the glove/tool kit
compartment, proceed as follows:
Remove the passenger seat -see page
u
2 8 ( U N L O C K I N G / L O C K I N G T H E
PASSENGER SEAT) - or the glove/tool
kit compartment cover - see page 29
( U N L O C K I N G / L O C K I N G
GLOVE/TOOL KIT COMPARTMENT
COVER).
The tool kit (1) includes:
√ 3, 4, 5, 6 mm Allen spanners (2);
√ 11 - 13 mm double open-end spanner
(3);
√ 8 - 10 mm double socket spanner (4);
√ 17 mm open-end spanner (5);
√ 16 mm socket spanner for spark plug (6)
30
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
2
5
7
T H E
√ double-ended (cross-headed/hexagon)
screwdriver (7);
√ tool box (8);
√ fuse puller (9)
Maximum load allowed: 1.5 kg.
3
4
6

LUGGAGE FIXING POINTS

The passenger seat can be used to carry
8
small luggage, which must be strapped
down securely to the suitable fixing points
(9).
Maximum load allowed: 9 kg.
Carry small luggage only and make sure
9
it is fastened securely.
9
WARNING
