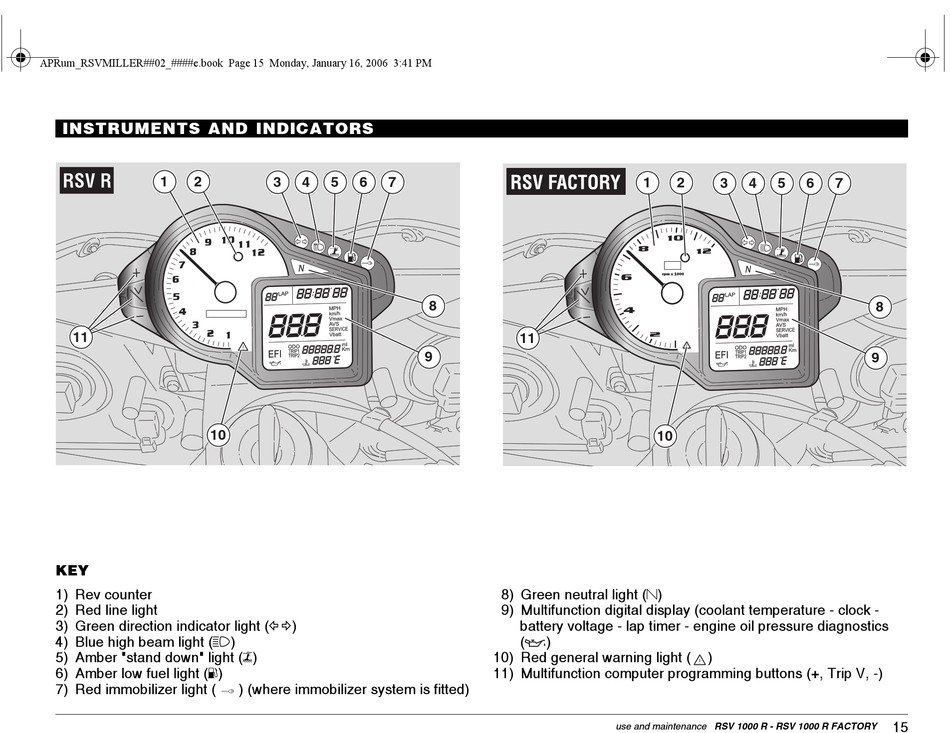

INSTRUMENTS AND INDICATORS

1 2
11
10
KEY
1) Rev counter
2) Red line light
3) Green direction indicator light ()
4) Blue high beam light ()
5) Amber "stand down" light ()
6) Amber low fuel light ()
7) Red immobilizer light (
3 4 5 6 7
) (where immobilizer system is fitted)
8
11
9
8) Green neutral light ()
9) Multifunction digital display (coolant temperature - clock -
battery voltage - lap timer - engine oil pressure diagnostics
()
10) Red general warning light (
11) Multifunction computer programming buttons (+, Trip V, -)
1 2 3 4 5
10
)
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
6 7
8
9
15
