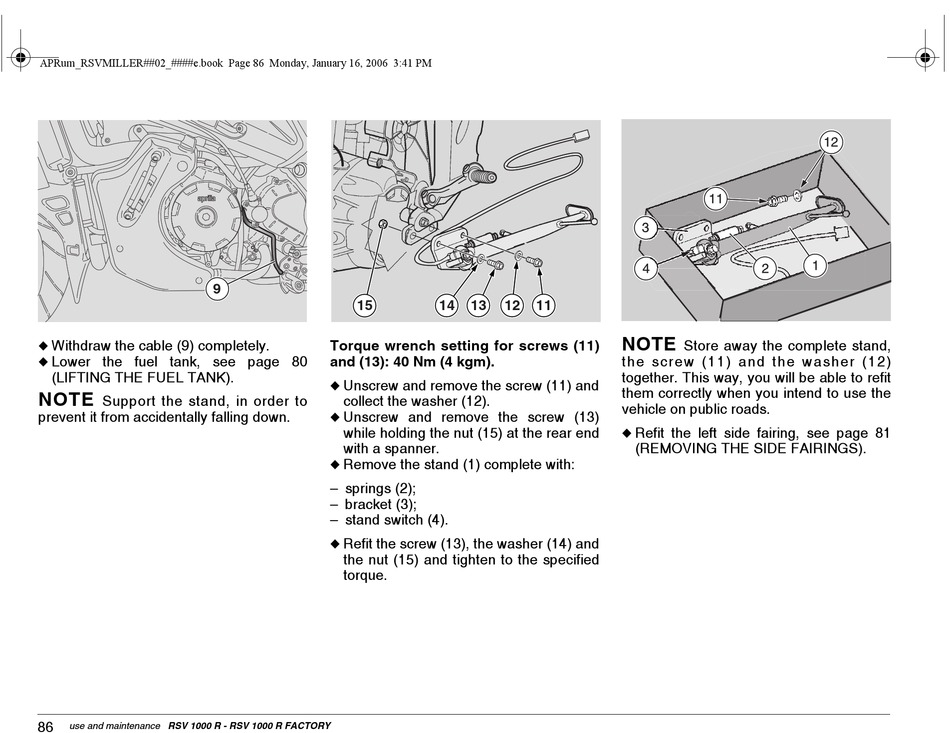

APRILIA RSV 1000 R FACTORY Manual page 86

Withdraw the cable (9) completely.
u
Lower the fuel tank, see page 80
u
(LIFTING THE FUEL TANK).
NOTE
Support the stand, in order to
prevent it from accidentally falling down.
86
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
9
15
Torque wrench setting for screws (11)
and (13): 40 Nm (4 kgm).
Unscrew and remove the screw (11) and
u
collect the washer (12).
Unscrew and remove the screw (13)
u
while holding the nut (15) at the rear end
with a spanner.
Remove the stand (1) complete with:
u
√ springs (2);
√ bracket (3);
√ stand switch (4).
Refit the screw (13), the washer (14) and
u
the nut (15) and tighten to the specified
torque.
14 13 12 11
NOTE
Store away the complete stand,
the screw (11) and the washer (12)
together. This way, you will be able to refit
them correctly when you intend to use the
vehicle on public roads.
Refit the left side fairing, see page 81
u
(REMOVING THE SIDE FAIRINGS).
