CAUTION
Never pull on the wiring to disconnect a
bulb connector.
PARKING LIGHT BULB
Remove the front fairing, see page 84
u
(REMOVING THE FRONT FAIRING).
CAUTION
Never pull on the wiring to extract a
bulb holder.
Grasp the parking light bulb holder (6)
u
and pull to extract.
Remove the bulb and fit a new bulb of
u
equal rating.
NOTE
Ensure that the bulb locates
correctly into the bulb holder.
1
6

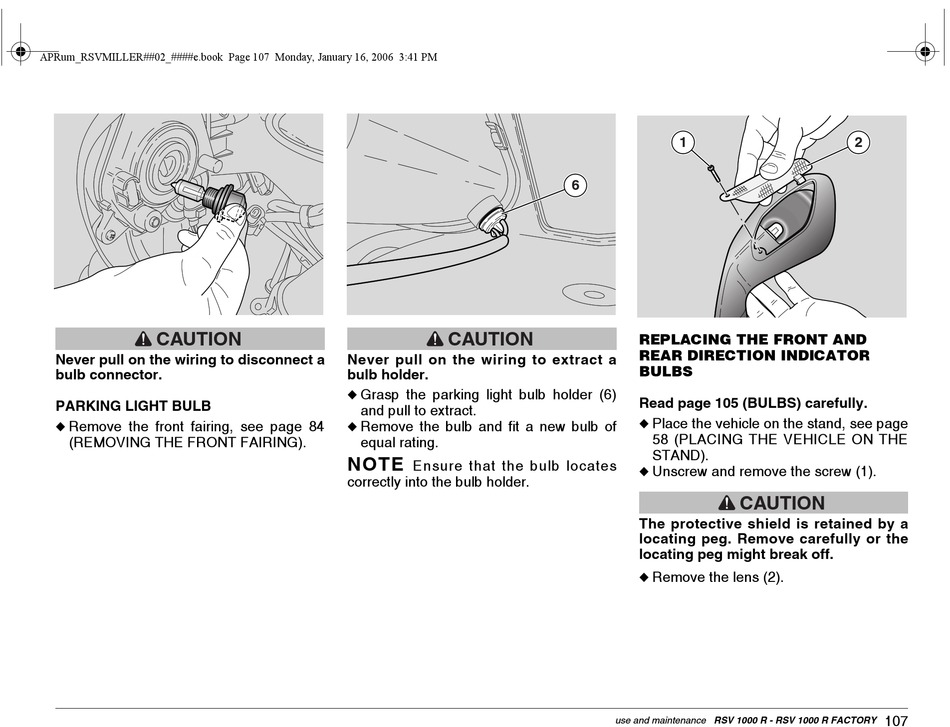

REPLACING THE FRONT AND
REAR DIRECTION INDICATOR
BULBS
Read page 105 (BULBS) carefully.
Place the vehicle on the stand, see page
u
58 (PLACING THE VEHICLE ON THE
STAND).
Unscrew and remove the screw (1).
u
CAUTION
The protective shield is retained by a
locating peg. Remove carefully or the
locating peg might break off.
Remove the lens (2).
u
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
2
107
