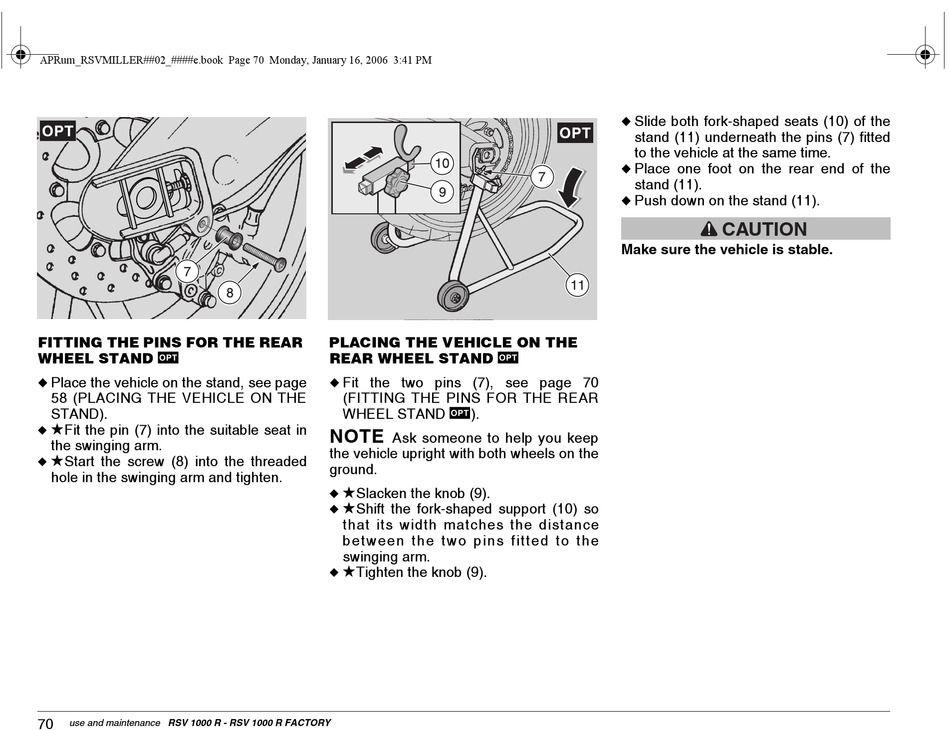

FITTING THE PINS FOR THE REAR
WHEEL STAND
Place the vehicle on the stand, see page
u
58 (PLACING THE VEHICLE ON THE
STAND).
Fit the pin (7) into the suitable seat in
the swinging arm.
Start the screw (8) into the threaded
hole in the swinging arm and tighten.
70
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
PLACING THE VEHICLE ON THE
REAR WHEEL STAND
Fit the two pins (7), see page 70
u
(FITTING THE PINS FOR THE REAR
WHEEL STAND ).
NOTE
Ask someone to help you keep
the vehicle upright with both wheels on the
ground.
Slacken the knob (9).
Shift the fork-shaped support (10) so
that its width matches the distance
between the two pins fitted to the
swinging arm.
Tighten the knob (9).
Slide both fork-shaped seats (10) of the
u
stand (11) underneath the pins (7) fitted
to the vehicle at the same time.
Place one foot on the rear end of the
u
stand (11).
Push down on the stand (11).
u
CAUTION
Make sure the vehicle is stable.
