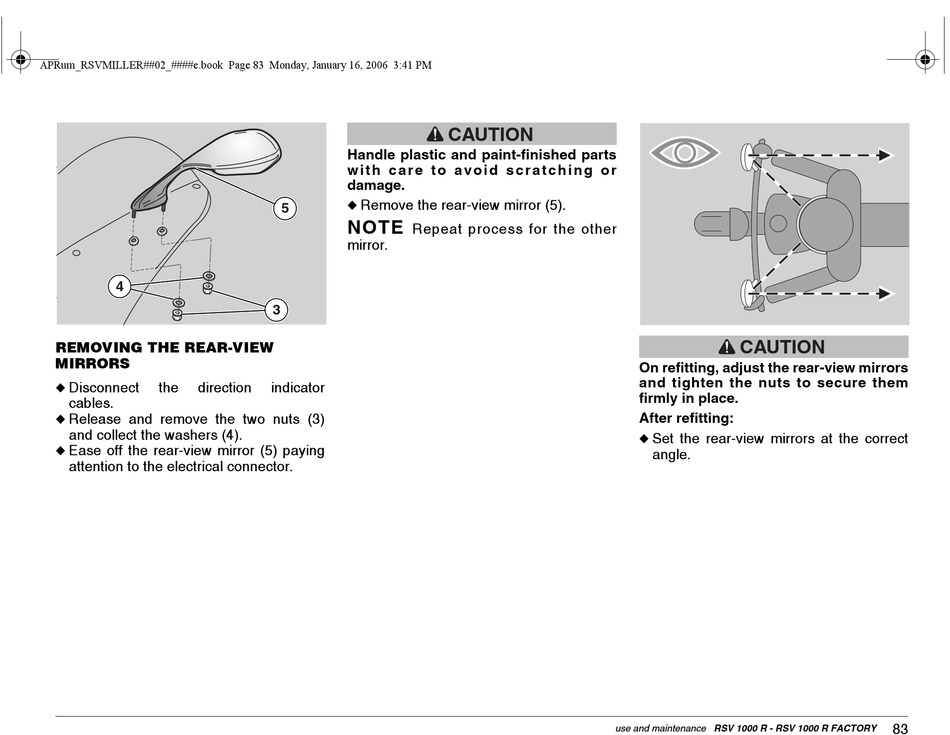

REMOVING THE REAR-VIEW
MIRRORS
Disconnect the direction
u
cables.
Release and remove the two nuts (3)
u
and collect the washers (4).
Ease off the rear-view mirror (5) paying
u
attention to the electrical connector.
Handle plastic and paint-finished parts
w i t h c a r e t o a v o i d s c r a t c h i n g o r
damage.
Remove the rear-view mirror (5).
u
5
NOTE
Repeat process for the other
mirror.
3
indicator
CAUTION
use and maintenance RSV 1000 R - RSV 1000 R FACTORY
CAUTION
On refitting, adjust the rear-view mirrors
and tighten the nuts to secure them
firmly in place.
After refitting:
Set the rear-view mirrors at the correct
u
angle.
