4-3-2 Operation Screens

This section explains the functions available on the CX-Programmer main window.
For details on using CX-Programmer, refer to CX-Programmer Operation Manual
(W446).

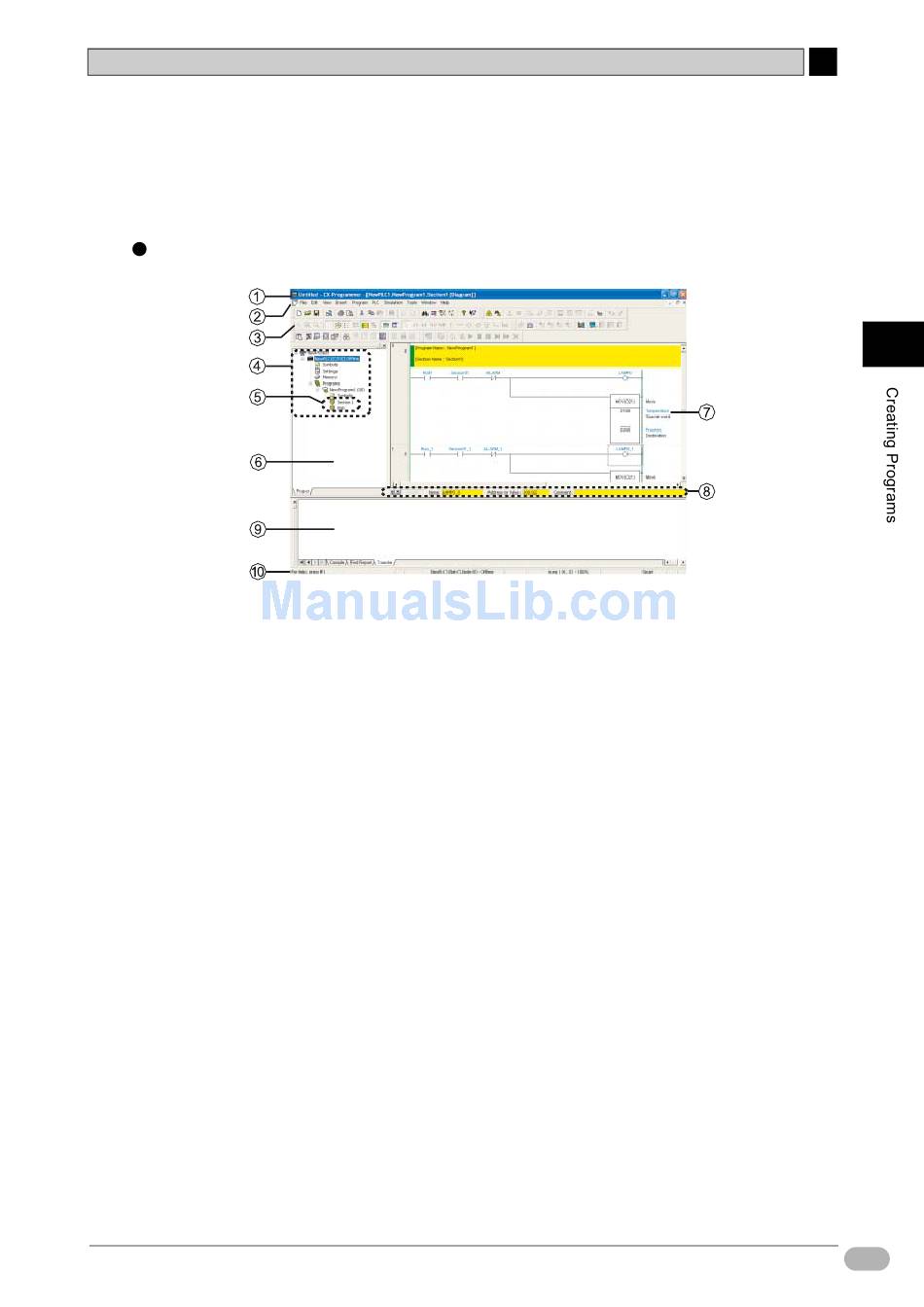

Main Window
(1) Title bar
(2) Main menu
(3) Toolbars
(4) Project tree / (6) Project workspace
(5) Section
(7) Diagram workspace
(8) I/O comment bar
Displays the data file name, created in CX-Programmer.
Used to select CX-Programmer functions.
Displays icons for frequently used functions. Place the mouse cursor over an
icon to display the corresponding function name.
Select View - Toolbars from the main menu to show/hide toolbars. Drag the
toolbars to change their position.
Used to manage programs and settings. Drag & drop items to copy the data.
Select [View] - [Windows] - [Workspace] from the main menu to show/hide the
workspace.
Programs can be split into and managed as multiple parts.
Used to create and edit ladder programs.
Displays the name, address/value, and I/O comment for the variable selected
by the mouse cursor.
