A-4 CP1L Programming Examples
PLC Setup
A
154
SYSMAC CP1L/CP1E Introduction Manual
Configure serial port 1.
1.

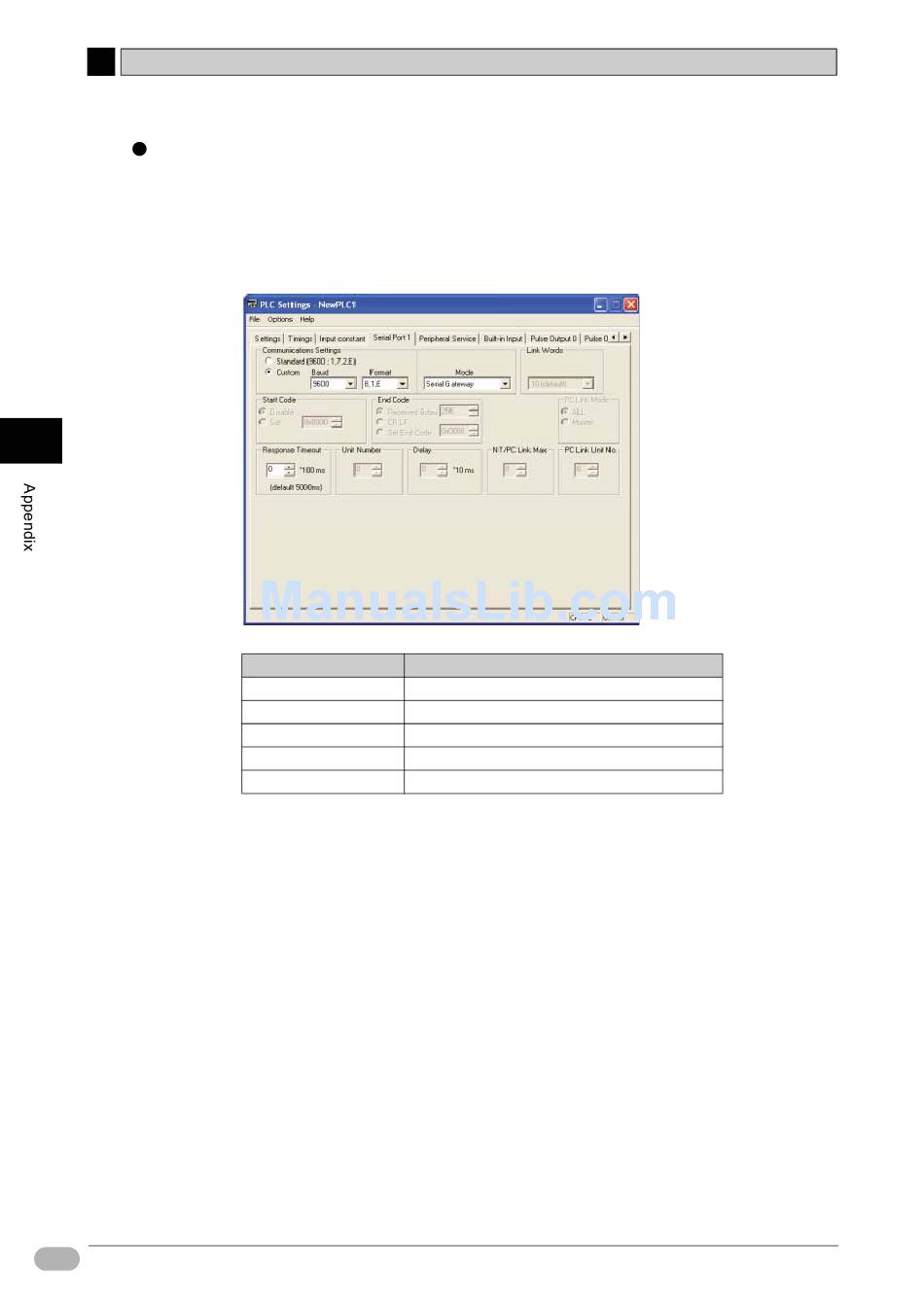

Open the PLC Settings dialog box.
2.
Click the Serial Port 1 tab (CP1E: Built-in RS232C Port tab).
3.
Set the following settings.
Item
Communication Settings
Baud
Format
Mode
Response Timeout
4.
Close the PLC Settings dialog box.
Setting
Custom
9600bps
8, 1, E
Serial Gateway Mode (CP1E: Modbus Easy Master)
0 (Default)
