Programming Example

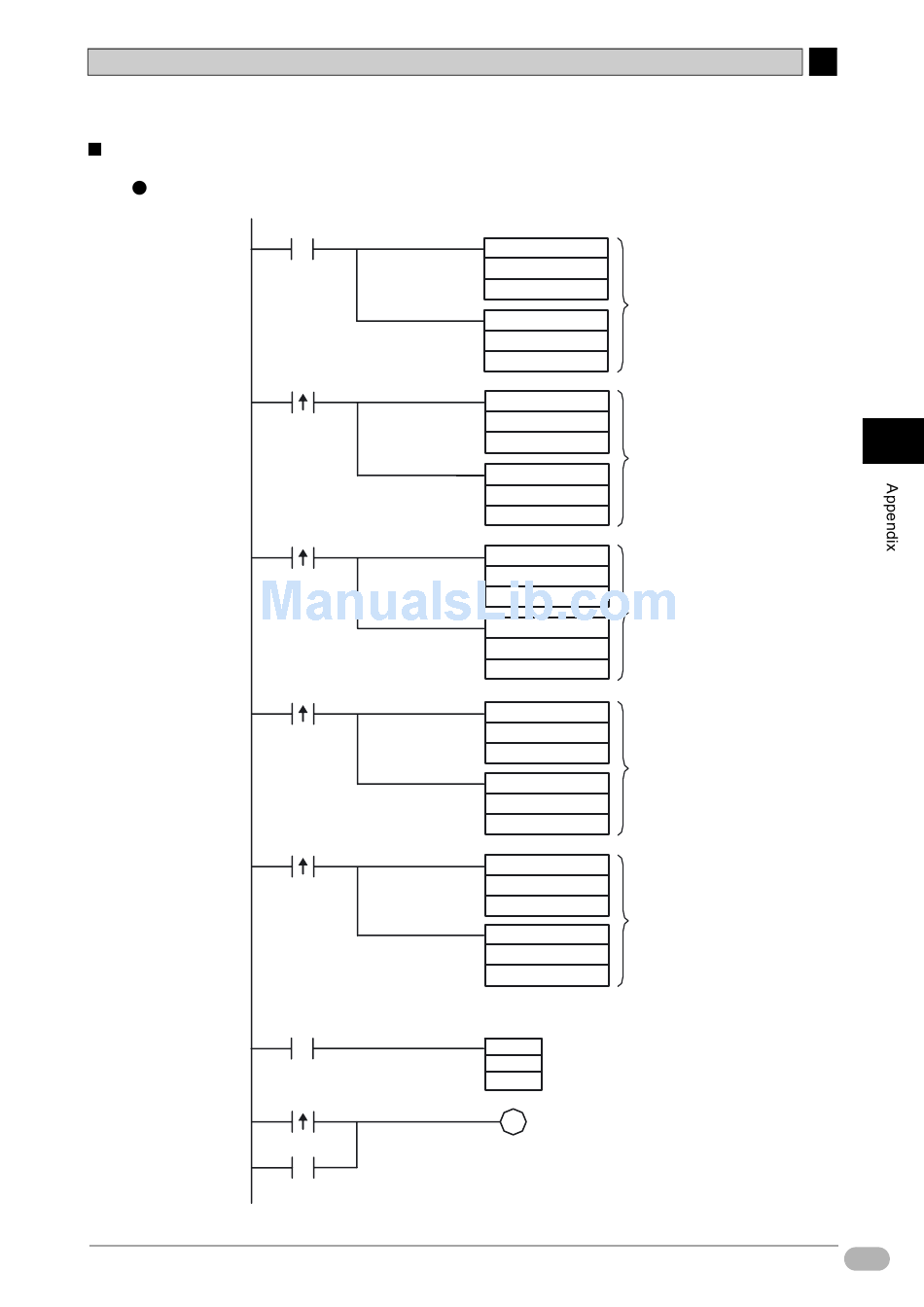

Ladder Program
P_First_Cycle
Contact C
Start Modbus communication 1 second after executing ladder program.
Continue Modbus communication.
Modbus-RTU easy master function execution normal flag
W0.00
Contact A
W0.01
Contact B
W0.02
W0.15
Contact Z
P_On
TIM0
Modbus-RTU easy master function execution bit
A640.01
A-4 CP1L Programming Examples
MOV(021)
#0000
D32306 (CP1E: D1206)
Stop operation when communication
starts. Operation command (0: Stop)
MOV(021)
Frequency command 00.00Hz
#0000
D32307 (CP1E: D1207)
MOV(021)
#0117
D32306 (CP1E: D1206)
Operation command (1: Start)
Frequency command
MOV(021)
60.00Hz (1770 Hex)
#7000
D32307 (CP1E: D1207)
MOV(021)
#0115
D32306 (CP1E: D1206)
Operation command (1: Start)
Frequency command
MOV(021)
55.00Hz (157C Hex)
#7C00
D32307 (CP1E: D1207)
MOV(021)
#0113
D32306 (CP1E: D1206)
Operation command (1: Start)
Frequency command
MOV(021)
50.00Hz (1388 Hex)
#8800
D32307 (CP1E: D1207)
MOV(021)
#0000
D32306 (CP1E: D1206)
Operation command (0: Stop)
Frequency command 00.00Hz
MOV(021)
#0000
D32307 (CP1E: D1207)
TIM
0
#0010
A640.00
