Wirecast Configuration

Automate VX uses Wirecast® streaming software to change live shots, layouts, and output.
During initial setup, changes may need to be made to the Wirecast document to customize the system,
such as setting custom layouts with logos. The Wirecast document is located within C:\Program Files\1
Beyond\Automate Project.wcst.
NOTE: The Wirecast document uses a specific naming convention for shots that must be followed
for the Automate VX to function properly. These naming conventions are described in the sections
that follow.
The project provides basic shots for a layout A, including side-by-side shots, as well as a layout B with an
alternative appearance.

Configure Basic Shots

A basic shot is labeled with the input number and the layout it is associated with (for example, A_Cam 1,
A_Cam 2, A_Cam 3, B_Cam 1, B_Cam 2, B_Cam 3, and so forth).
NOTE: The naming convention above must be used for the Automate VX to function properly.

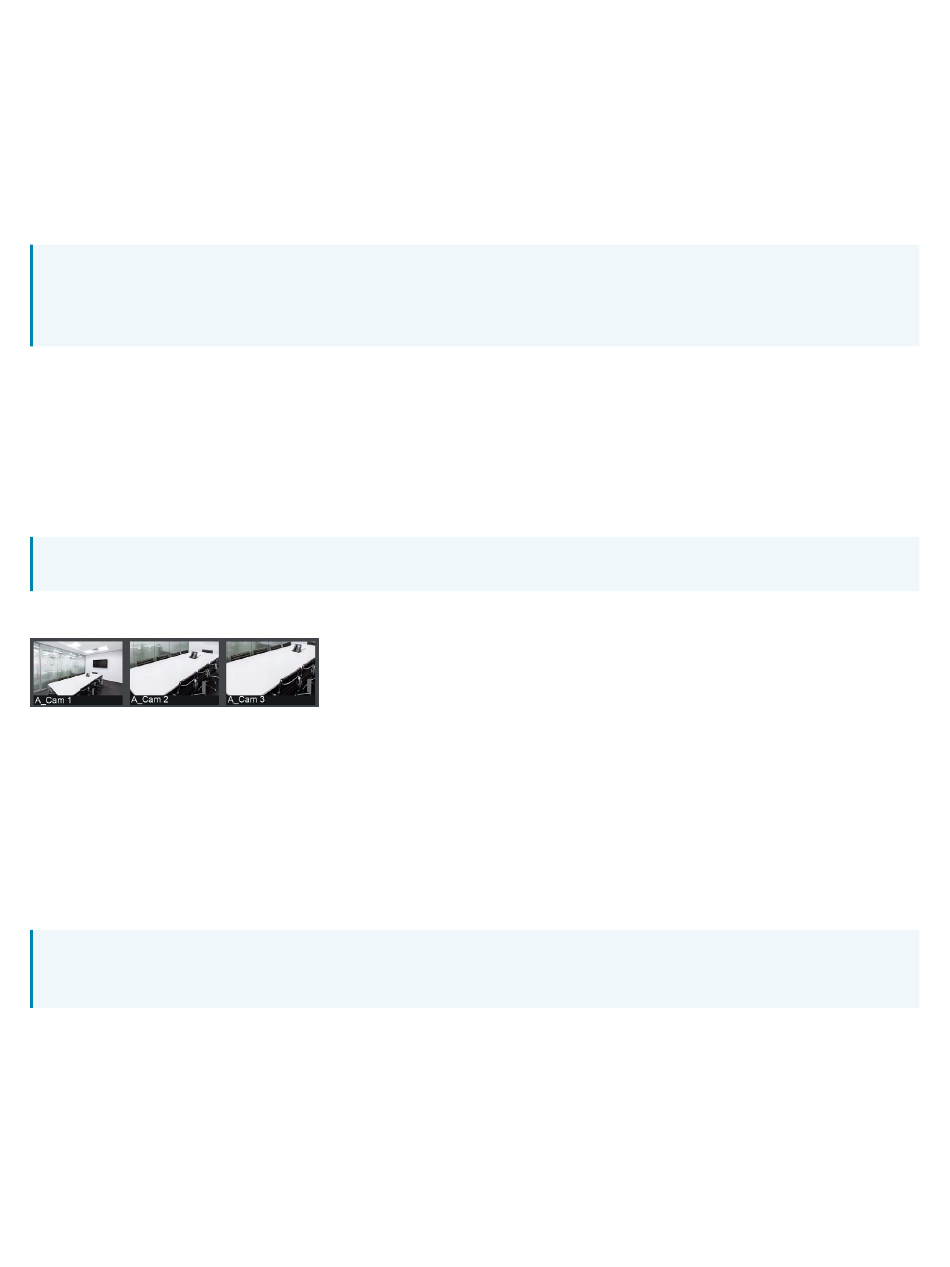

Basic Wirecast Shots
If using less than three inputs on the IV-SAM-VXS-1B or less than seven inputs on the IV-SAM-VXS-1B,
any unused basic shots can be removed by right-clicking the shot and then selecting Delete Shot.

Create Side-by-Side Shots

When side-by side shots are turned on, two active speaking participants are shown simultaneously. The
labeling convention for side-by-side shots is similar to basic shots with the second camera added to the
end (for example, A_Cam 1_2, A_Cam 1_3, A_Cam 2_3, and so forth).
NOTE: Not every camera permutation is required, and the lower camera number will always be used
first. For example, A_Cam 1_2 is used, but A_Cam 2_1 is not.
