- Page 1 Crestron Adagio™ Entertainment System User Interface Devices Out-Of-The-Box Functionality Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2006 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron Adagio™ Entertainment System Contents User Interface Devices: APAD & C2N-DBF12 Introduction ... 1 Using the APAD Wall Mount Controller ... 2 Basic Settings ... 2 Selecting/Controlling Sources ... 3 Selecting/Controlling Rooms ... 6 Using the C2N-DBF12 Keypad ... 8 Selecting Sources ... -
Page 5: User Interface Devices: Apad & C2N-Dbf12
Introduction Features and Functions The information in this guide assumes that the APAD Wall Mount LCD Controller and the C2N-DBF12 keypad have been installed and connected to an Adagio Entertainment system as directed in the latest version of the Adagio Entertainment System QuickStart Guide (Doc. -
Page 6: Using The Apad Wall Mount Controller

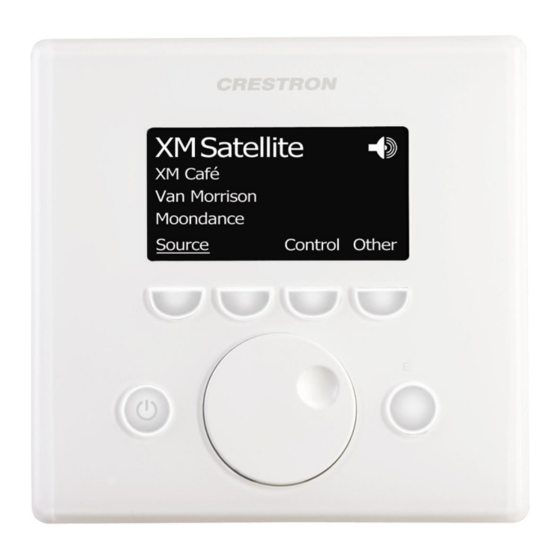

2 • Adagio Entertainment System: User Interface Devices Crestron Adagio™ Entertainment System With an APAD installed in a room, a user can select and control sources that are connected to the Adagio Entertainment System (AES) or Adagio Audio Distribution System (AADS) as well as control the volume in the room. -
Page 7: Selecting/Controlling Sources
Selecting/Controlling Sources The tuner status screen shown to the left is a typical default display for the room where the APAD is located. You can: • Press the Source soft button and use the Nav Wheel to scroll through the available sources. - Page 8 Controlling an iPod ® An Apple iPod can be controlled from the APAD using an optional CEN-IPOD iPod Connect. The following assumes that the CEN-IPOD has been installed and that an iPod has been connected as described in the latest version of the CEN-IPOD guide (Doc.
- Page 9 Controlling an Adagio Audio Server (AAS) An AAS can be controlled from the APAD. The following assumes that the AAS has been installed and connected as described in the AAS guide (Doc. 6465).
-
Page 10: Selecting/Controlling Rooms
Use the Nav Wheel to scroll through the rooms in the system; use the Nav Wheel soft button to enter the room selection. • If the display indicates that the room’s status is “Off,” press the APAD Power button to turn the room on. Out-Of-The Box Functionality Guide – DOC. 6493... - Page 11 Note that the “Room 2 Exit” soft button shown in the figure to the left indicates that you are not controlling the default room for the APAD you are using. Pressing this soft button returns you to the default room.
-
Page 12: Using The C2N-Dbf12 Keypad
Depending on the source that is selected, the control buttons on the C2N-DBF12 will have different functions. 8 • Adagio Entertainment System: User Interface Devices Crestron Adagio™ Entertainment System • To raise the volume in the room, press the VOL K button. -
Page 13: Problem Solving
Crestron Adagio™ Entertainment System Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. Interface Troubleshooting Out-Of-The Box Functionality Guide – DOC. 6493 TROUBLE POSSIBLE... -
Page 14: Reference Documents
For assistance in your local time zone, refer to the Crestron website (http://www.crestron.com/) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. - Page 15 Crestron Adagio™ Entertainment System User Interface Devices This page intentionally left blank. Adagio Entertainment System: User Interface Devices • 11 Out-Of-The Box Functionality Guide – DOC. 6493...
- Page 16 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6493 15 Volvo Drive Rockleigh, NJ 07647 (2015226) Tel: 888.CRESTRON 05.06 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
