Main Touch Screen Display - Interlogix Simon XTi-5 User Manual

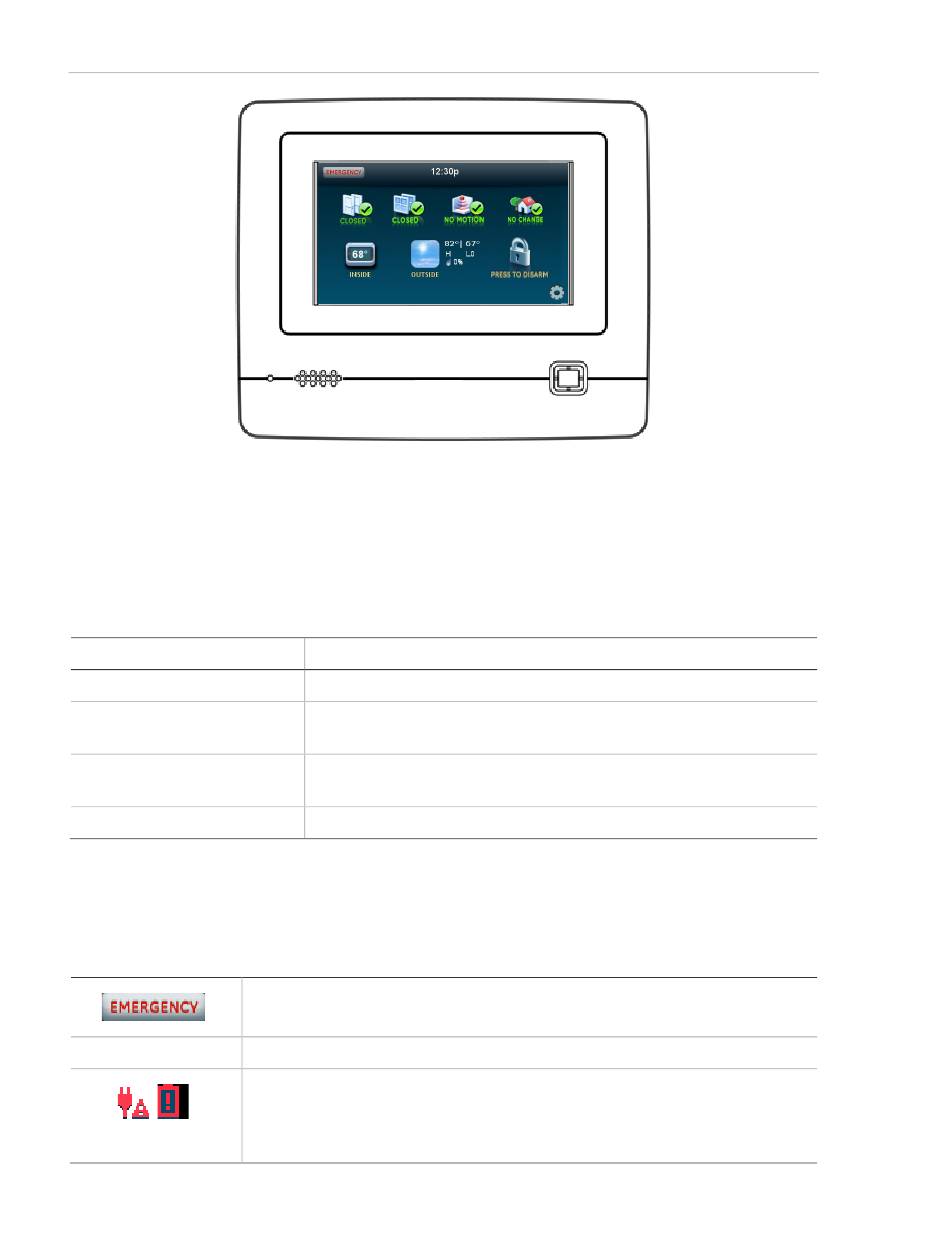

Figure 1: Simon XTi-5 controls
Note: The touch screen in Figure 1 above is an example. Your touch screen and
system may be configured differently.
Table 3 below provides a description of the panel's graphical user interface and
audio.
Table 3: Panel features
Control
Piezo siren
Touch screen
Microphone
Speaker

Main touch screen display

While the panel is idle, the screen displays:
Table 4: Main screen icons
Access the emergency screen to select the appropriate emergency icon
(Panic, Police, or Fire).
Time The current system time
These icons only appear in red on the main screen if the backup battery is
not fully charged or the AC power is not working correctly. It is
recommended that the backup battery be replaced every 3-5 years.
Contact your installer to replace the backup battery.
4
Description
Provides alarm beeps and status beeps.
Provides a graphical user interface for programming and system
operation.
Used to communicate with the central monitoring station after an
alarm.
Provides voice output and sounds key beeps.
Simon XTi-5 User Manual
