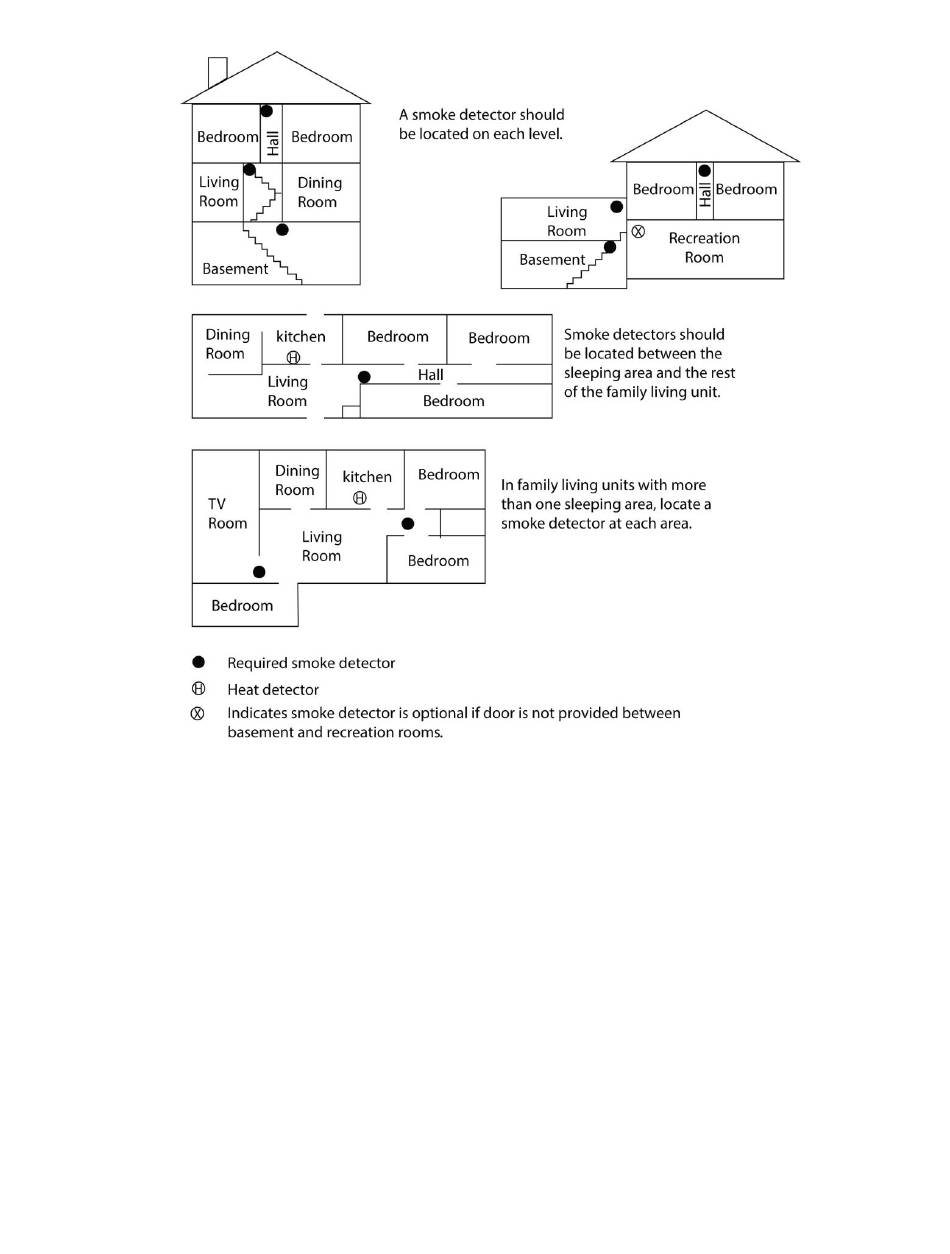

Figure 4: Smoke Detector Placement
Note: Ceiling-mounted smoke detectors should be located in the center of the room or hall, or not less than 4 inches from the wall. When the
detector is mounted on the wall, the top of the detector should be 4 to 12 inches from the ceiling.
Note: Do not install smoke detectors where normal ambient temperatures are above 100°F or below 40°F. Also, do not locate detectors in front of
AC/Heat registers or other locations where normal air circulation will keep smoke from entering the detector.
Note: Additional information on household fire warning is available at nominal cost from: The National Fire Protection Association, Batterymarch
Park, Quincy, MA 02269. Request Standard No. NFPA74.
Your Floor Plan
Use the following guidelines when drawing your floor plan:

Show all building levels.

Show exits from each room (two per room are
recommended).

Show the location of all security system components.

Show the location of any fire extinguishers.
P/N 466-5437 • REV A • 16OCT18

Cleaning the Touch Screen

If necessary, use a soft cloth to clear smudges on the touch
screen; do not use glass cleaner on the touch screen.
Disposal
Dispose of all equipment is accordance with local
requirements. Contact your security provider for more
information.
9 / 10
