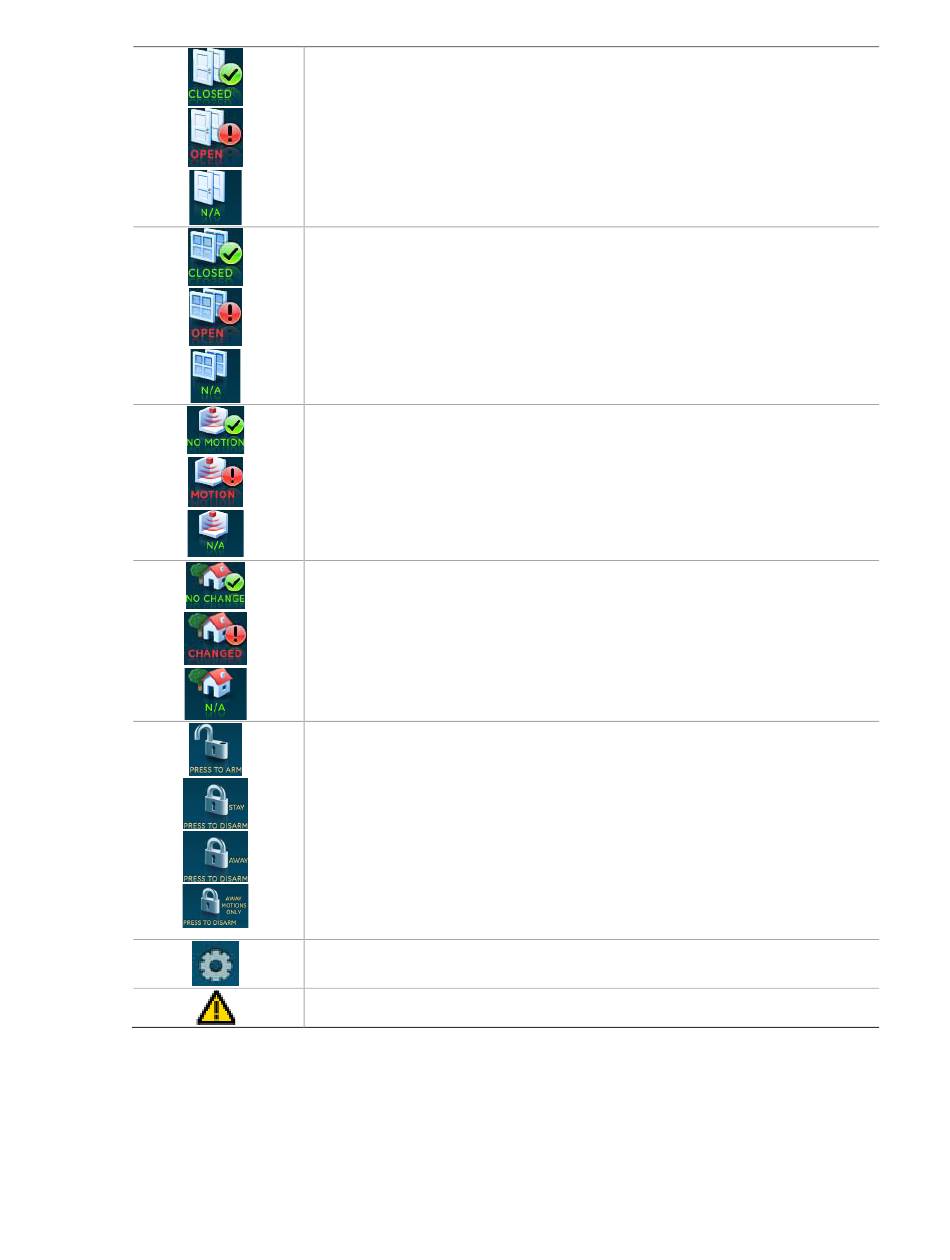

Depicts monitored door status. A green check indicates all monitored
doors are closed. A red exclamation point indicates one or more doors are
open. N/A indicates your system is not configured to support door
sensors.
Depicts monitored window status. A green check indicates all monitored
windows are closed. A red exclamation point indicates one or more
windows are open. N/A indicates your system is not configured to support
window sensors.
Depicts motion detected by the motion sensors in your home. A green
check indicates no recent motion detected. A red exclamation point
indicates motion was detected within the last 10 minutes. A typical use for
this feature would be to have a Simon two-way talking touch screen in the
garage to see if movement is detected in the home before you enter the
home. N/A indicates your system is not configured to support motion
sensors.
Depicts other changes to protected property in your system. For example
activation of a water sensor, freeze sensor, or the movement of protected
items. A green check indicates no change since the last time you visited
(for movement of a protected item) and all sensors are closed (water or
freeze sensors). A red exclamation point indicates either a sensor is
tripped or there is unacknowledged activity. N/A indicates your system is
not configured to support property sensors.
Depending on the current arming state of your machine, one of these
icons will be displayed. Press the ARM icon to access the Arming Screen.
Press a DISARM icon, and provide a valid access code, to disarm your
system.
Note: When disarming the system, only intrusion/burglary sensors are
disarmed. Environmental sensors, such as smoke and carbon monoxide
detectors, stay active at all times.
Note: Depending on your configuration, the Motions Only icon may not
appear.
Press to access the settings screen.
This yellow triangle indicates faults within the system.
