Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series
17. Place the color chart on the backing board as shown in
scanning ruler, and then click [OK]. (Use Premium Glossy Photo Paper instead
if no backing board is available.) i1Pro2 is used for explanation in the
following figures.
Measurement start point

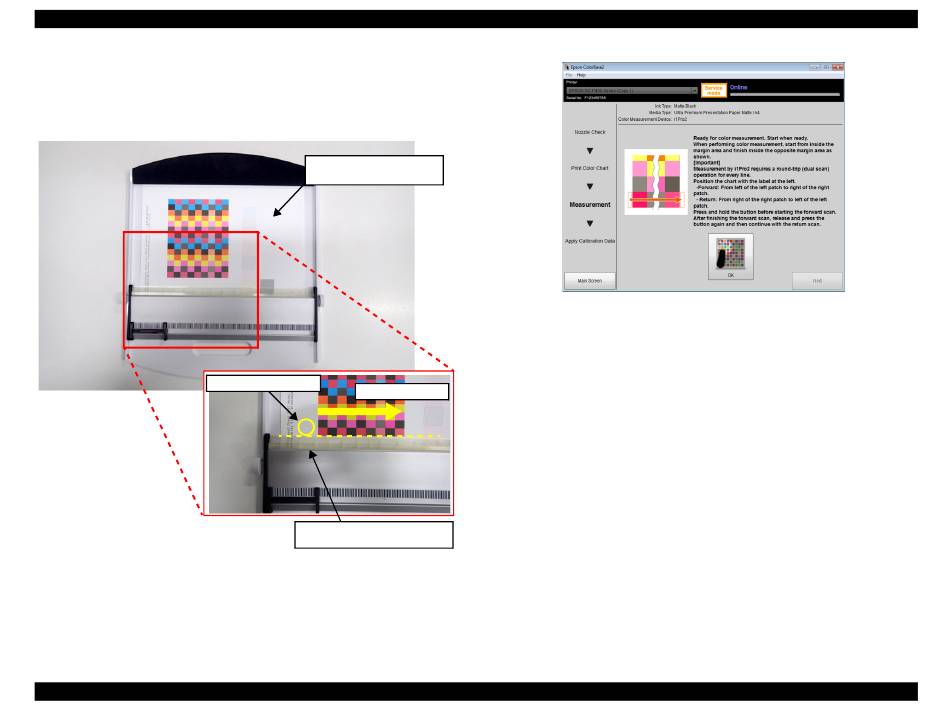

Figure 9-16. Color chart setting
SC-P400 Series
and set the
Figure 9-16
Place the chart with the nozzle
check pattern to the right.
Measuring direction
Align the edge of scale with the first
row of the calibration patches.
Adjustment
Figure 9-17. Preparation for calibration
Revision I
