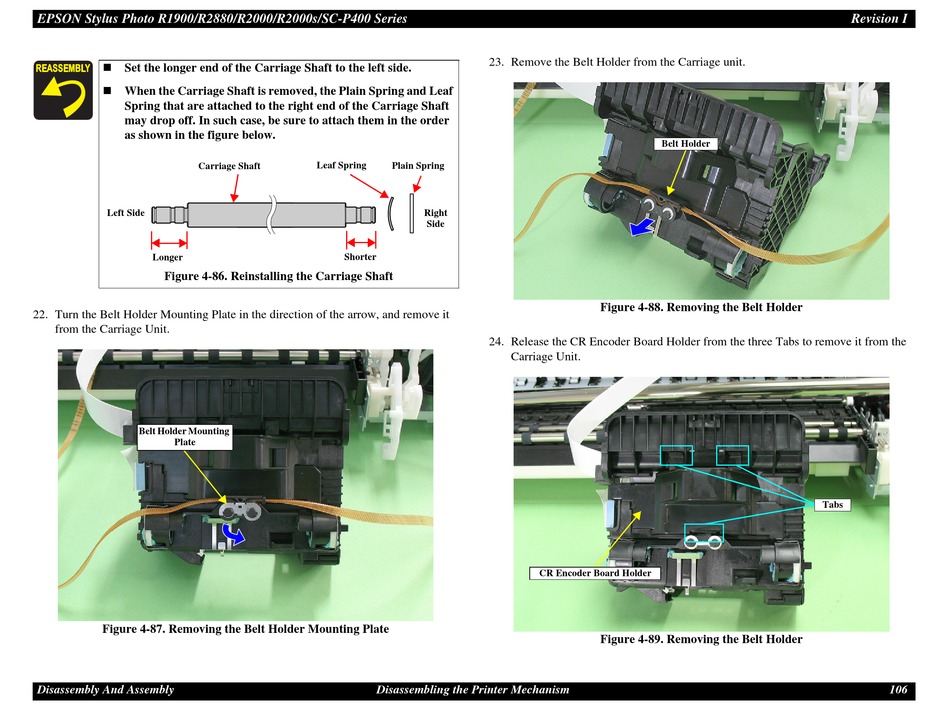

Epson Stylus Photo R2000s Series Service Manual page 106

EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

Set the longer end of the Carriage Shaft to the left side.

When the Carriage Shaft is removed, the Plain Spring and Leaf
Spring that are attached to the right end of the Carriage Shaft
may drop off. In such case, be sure to attach them in the order
as shown in the figure below.
Carriage Shaft
Left Side
Longer
Figure 4-86. Reinstalling the Carriage Shaft
22. Turn the Belt Holder Mounting Plate in the direction of the arrow, and remove it
from the Carriage Unit.
Belt Holder Mounting
Plate
Figure 4-87. Removing the Belt Holder Mounting Plate
Disassembly And Assembly
23. Remove the Belt Holder from the Carriage unit.
Leaf Spring Plain Spring
Right
Side
Shorter
24. Release the CR Encoder Board Holder from the three Tabs to remove it from the
Disassembling the Printer Mechanism
Belt Holder
Figure 4-88. Removing the Belt Holder
Carriage Unit.
CR Encoder Board Holder
Figure 4-89. Removing the Belt Holder
Revision I
Tabs
