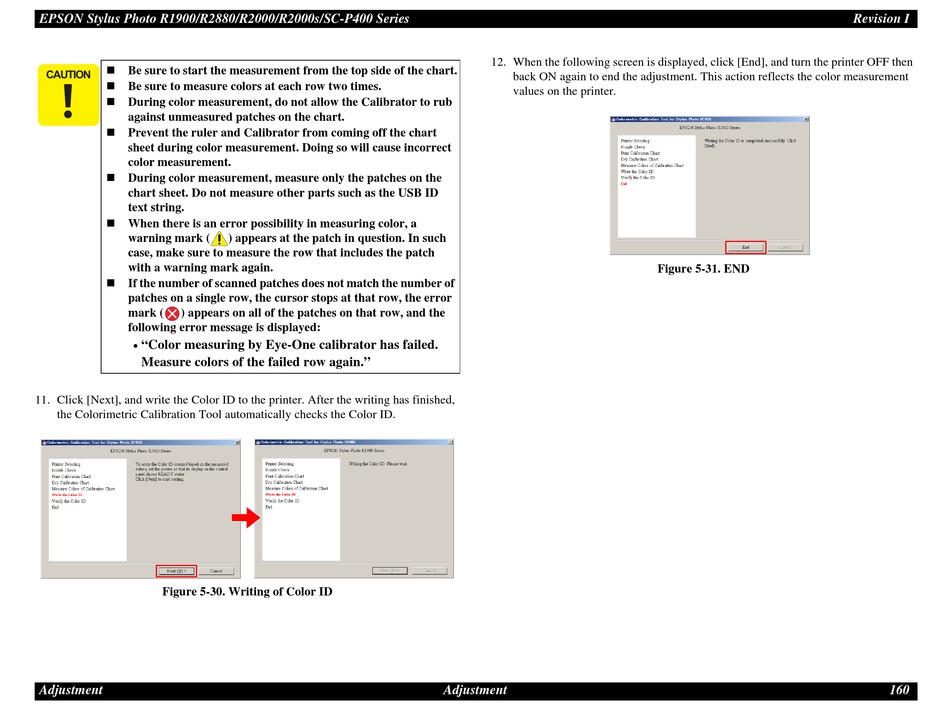

EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

Be sure to start the measurement from the top side of the chart.
C A U T I O N

Be sure to measure colors at each row two times.

During color measurement, do not allow the Calibrator to rub
against unmeasured patches on the chart.

Prevent the ruler and Calibrator from coming off the chart
sheet during color measurement. Doing so will cause incorrect
color measurement.

During color measurement, measure only the patches on the
chart sheet. Do not measure other parts such as the USB ID
text string.

When there is an error possibility in measuring color, a
warning mark (
case, make sure to measure the row that includes the patch
with a warning mark again.

If the number of scanned patches does not match the number of
patches on a single row, the cursor stops at that row, the error
mark ( ) appears on all of the patches on that row, and the
following error message is displayed:
•
"Color measuring by Eye-One calibrator has failed.
Measure colors of the failed row again."
11. Click [Next], and write the Color ID to the printer. After the writing has finished,
the Colorimetric Calibration Tool automatically checks the Color ID.
Figure 5-30. Writing of Color ID
Adjustment
) appears at the patch in question. In such
12. When the following screen is displayed, click [End], and turn the printer OFF then
back ON again to end the adjustment. This action reflects the color measurement
values on the printer.
Adjustment
Figure 5-31. END
