EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series
When performing the following procedure, pay attention to the
C A U T I O N
following points.

Prevent the coated surface of the PF Roller Shaft from being
scratched.

Do not touch the coated surface of the PF Roller Shaft with
bare hands.

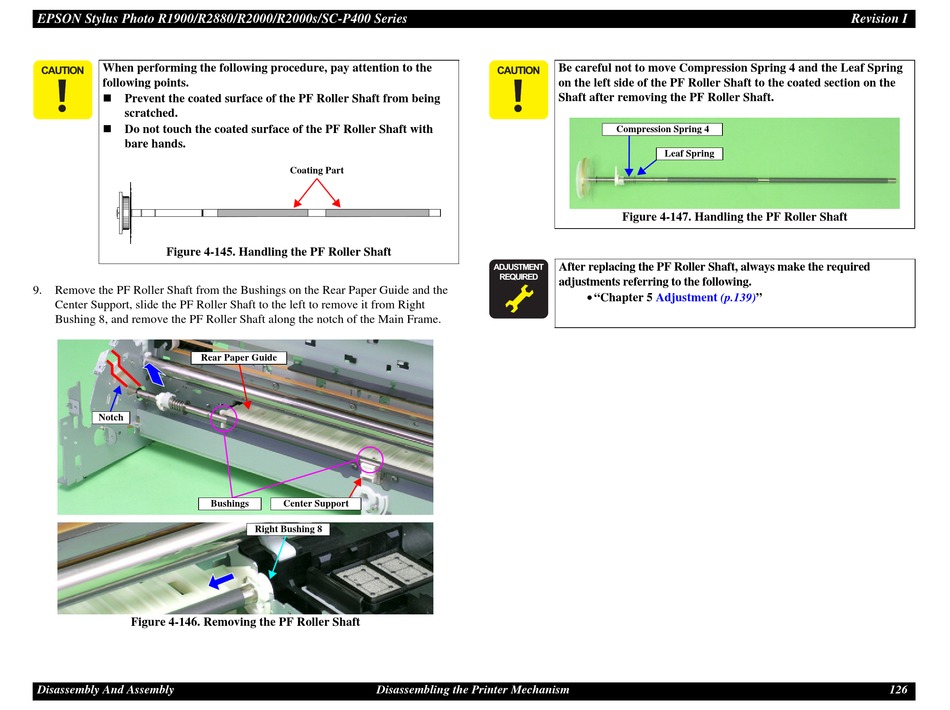

Figure 4-145. Handling the PF Roller Shaft
9. Remove the PF Roller Shaft from the Bushings on the Rear Paper Guide and the
Center Support, slide the PF Roller Shaft to the left to remove it from Right
Bushing 8, and remove the PF Roller Shaft along the notch of the Main Frame.
Rear Paper Guide
Notch
Bushings
Figure 4-146. Removing the PF Roller Shaft
Disassembly And Assembly
Coating Part
Center Support
Right Bushing 8
Disassembling the Printer Mechanism
Be careful not to move Compression Spring 4 and the Leaf Spring
C A U T I O N
on the left side of the PF Roller Shaft to the coated section on the
Shaft after removing the PF Roller Shaft.
Compression Spring 4
Leaf Spring
Figure 4-147. Handling the PF Roller Shaft
A D J U S T M E N T After replacing the PF Roller Shaft, always make the required
R E Q U I R E D
adjustments referring to the following.
• "Chapter 5
Adjustment
Revision I
(p.139)"
126
