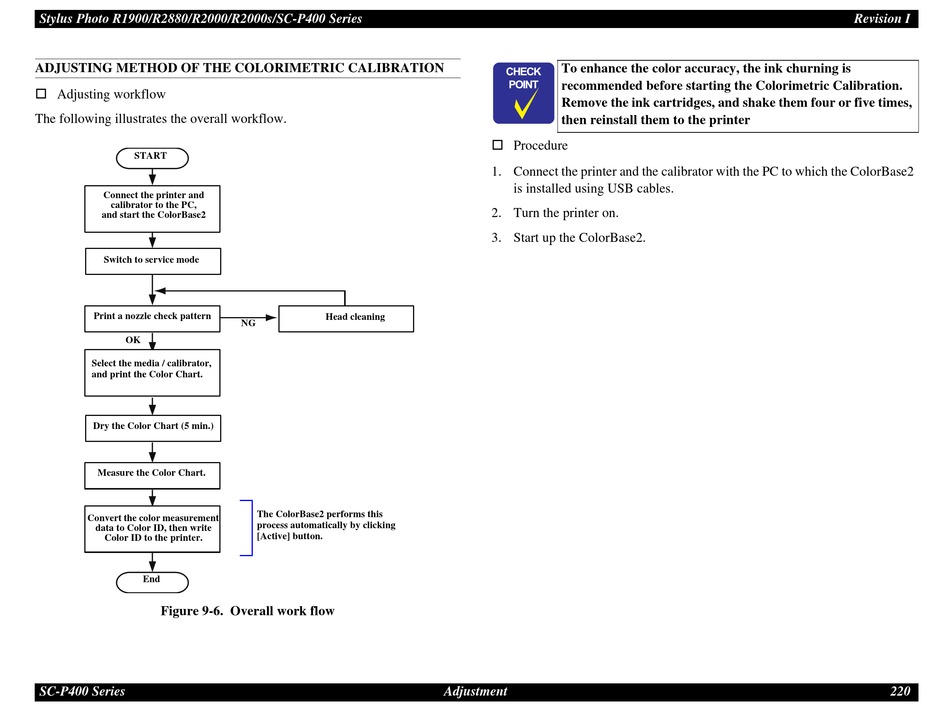

ADJUSTING METHOD OF THE COLORIMETRIC CALIBRATION
 Adjusting workflow
The following illustrates the overall workflow.
START
Connect the printer and
calibrator to the PC,
and start the ColorBase2
Switch to service mode
Print a nozzle check pattern
OK
Select the media / calibrator,
and print the Color Chart.
Dry the Color Chart (5 min.)
Measure the Color Chart.
Convert the color measurement
data to Color ID, then write
Color ID to the printer.
End
Figure 9-6. Overall work flow
SC-P400 Series
Head cleaning
NG
The ColorBase2 performs this
process automatically by clicking
[Active] button.
To enhance the color accuracy, the ink churning is
C H E C K
P O I N T
recommended before starting the Colorimetric Calibration.
Remove the ink cartridges, and shake them four or five times,
then reinstall them to the printer
 Procedure
1. Connect the printer and the calibrator with the PC to which the ColorBase2
is installed using USB cables.
2. Turn the printer on.
3. Start up the ColorBase2.
Adjustment
