Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

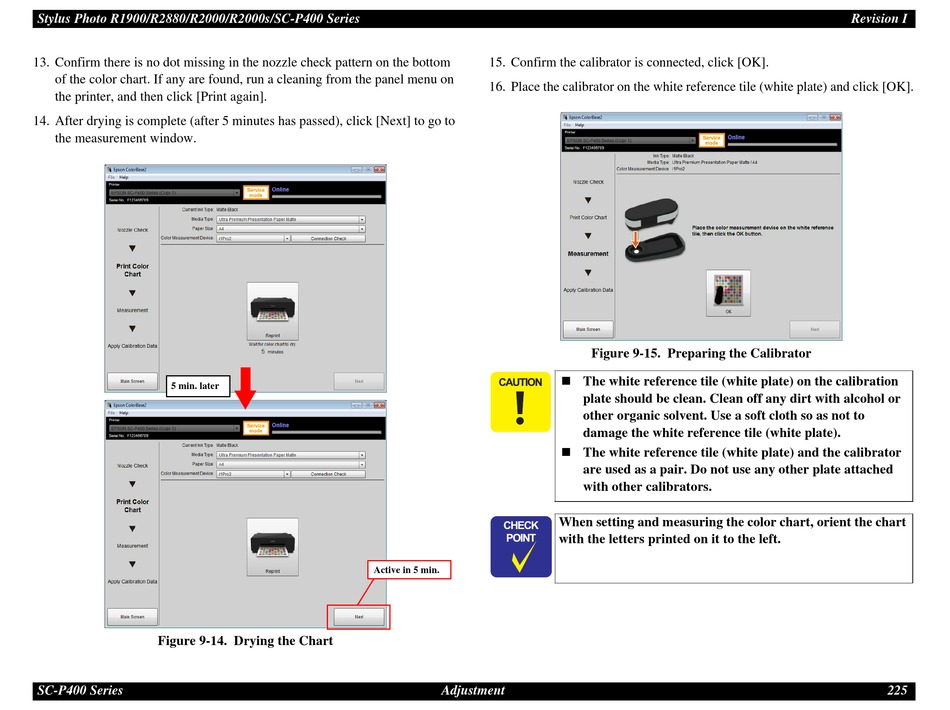

13. Confirm there is no dot missing in the nozzle check pattern on the bottom
of the color chart. If any are found, run a cleaning from the panel menu on
the printer, and then click [Print again].
14. After drying is complete (after 5 minutes has passed), click [Next] to go to
the measurement window.
5 min. later
Figure 9-14. Drying the Chart
SC-P400 Series
15. Confirm the calibrator is connected, click [OK].
16. Place the calibrator on the white reference tile (white plate) and click [OK].
C A U T I O N
C H E C K
P O I N T
Active in 5 min.
Adjustment
Figure 9-15. Preparing the Calibrator
 The white reference tile (white plate) on the calibration
plate should be clean. Clean off any dirt with alcohol or
other organic solvent. Use a soft cloth so as not to
damage the white reference tile (white plate).
 The white reference tile (white plate) and the calibrator
are used as a pair. Do not use any other plate attached
with other calibrators.
When setting and measuring the color chart, orient the chart
with the letters printed on it to the left.
