Ethernet management port (10/100/1000BASE-T).
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
Front panel USB port.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.
•
Four rear slots for fan modules with front-to-back or back-to-front airflow.

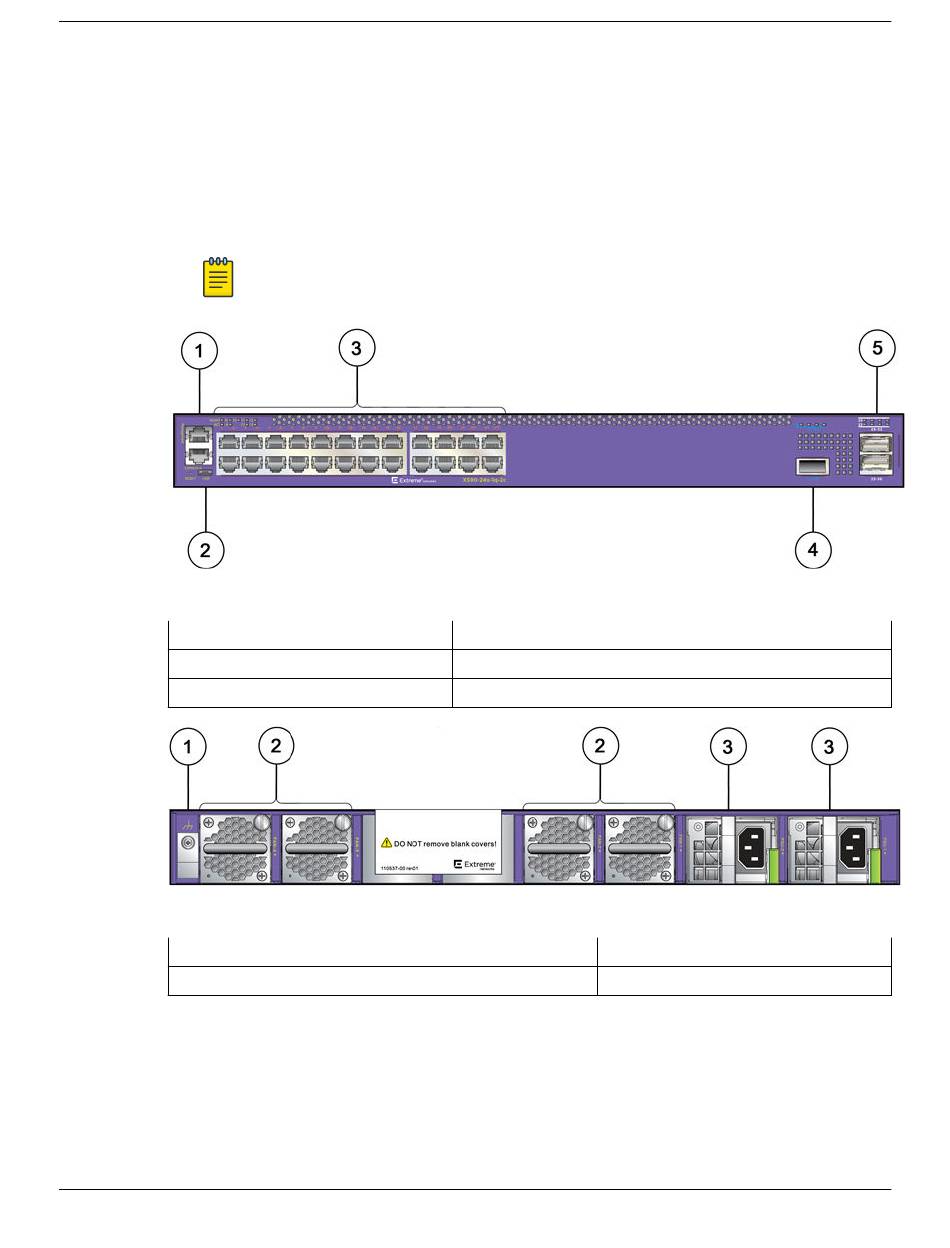

Figure 86: X590-24x-1q-2c Front Panel
1 = Console/management port
2 = USB port
3 = 1 Gb/10GBASE-X SFP+ ports
Figure 87: X590-24x-1q-2c Rear Panel
1 = Grounding lug
2 = Replaceable fan modules

ExtremeSwitching X590 Series Switch LEDs

The following tables describe the meanings of the LEDs on the front panel of the X590 series switch.
Note
Two additional fan slots are unused. Do not remove the cover plate from the unused slots.
ExtremeSwitching X590 Series Switch LEDs
4 = 10Gb/40Gb QSFP+ port
5 = 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports
3 = AC power input
