Expansion Modules
•
VIM-2x Ethernet Module with 2x10GSFP+ ports
•
TM-CLK Clock Module to support SyncE and 1588
Note
Optional VIM and clock modules for the X460-G2 series switches are not compatible with
X460 series switches.
Caution
The switch must be powered off before you install any interface module options (VIMs or
clock modules). The interface module options are not hot swappable.

VIM-2q Port Option Card

The VIM-2q Ethernet Module option card allows you to add one or two 40 gigabit QSFP+ optical ports
to the VIM (Versatile Interface Module) slot on the rear panel of an X460-G2 series switch. The VIM-2q
option card supports QSFP+ optical modules.
The ports on the VIM-2q option card can be configured as high speed stacking ports in a SummitStack
configuration with a stack link speed of 40G. For more information about stacking ExtremeSwitching
switches, see
Note
40G ports on the VIM-2q cannot be partitioned into four 10G ports.
Caution
VIM modules are not hot swappable. You must power down the switch before installing any
VIM modules.
Summit X460-G2 VIM-2q
4 0 Gb E QS FP +
1

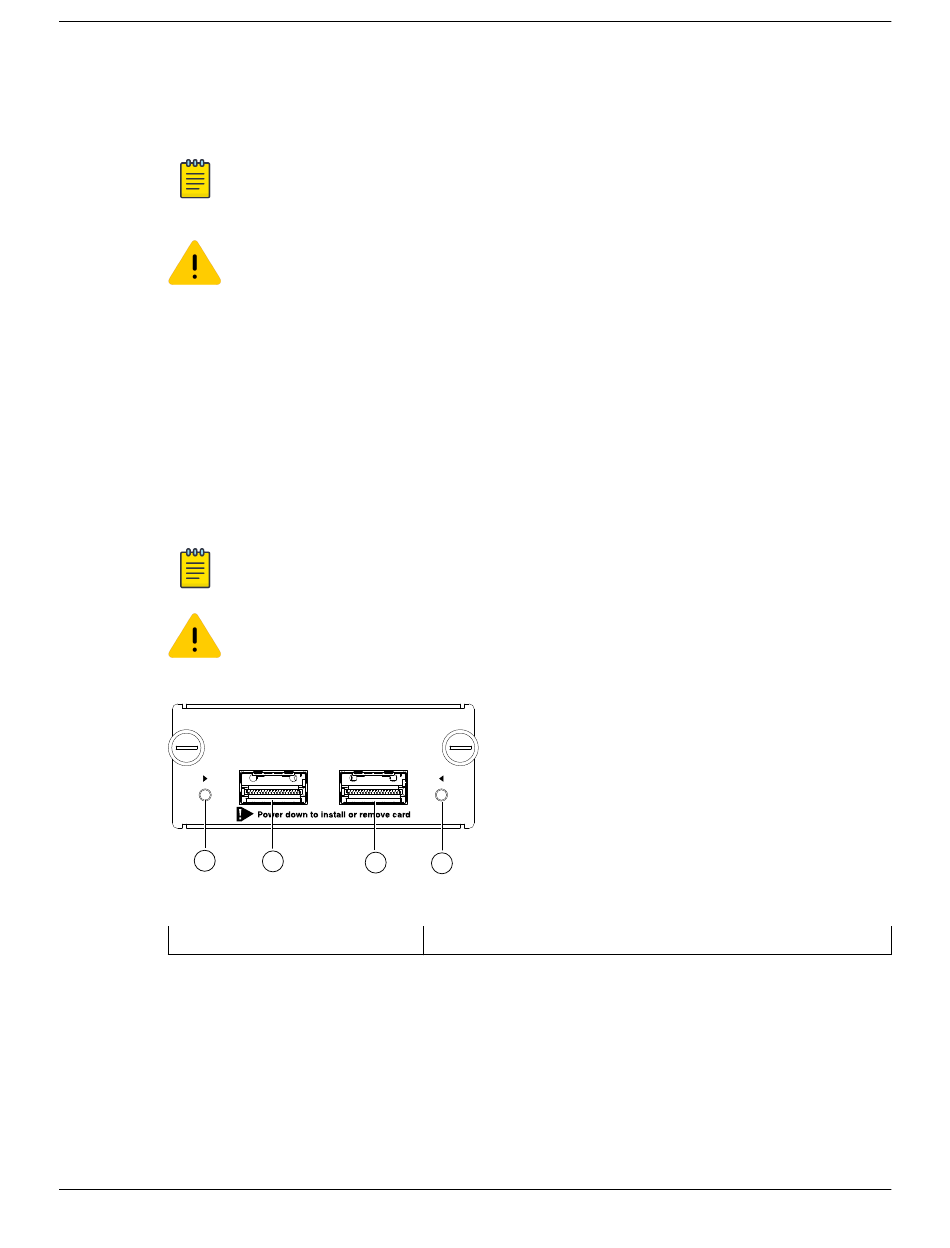

Figure 141: VIM-2q Port Option Card
1 = LEDs
For current information about compatible QSFP+ modules and the minimum required software, refer to
the most recent version of the
Matrices.
For more information about QSFP+ modules, refer to the
Installation
Building Stacks on page 179.
TM
Solid ON=Link
Blinking=Activity
S1 S2
2
2
Extreme Hardware/Software Compatibility and Recommendation
Guide.
1
2 = QSFP+ Ports
Extreme Networks Pluggable Transceivers
ExtremeSwitching Hardware Installation Guide
VIM-2q Port Option Card
