ExtremeSwitching X435-8P-4S Switch Features

Figure 2: X435-8T-4S Switch Rear Panel
ExtremeSwitching X435-8P-4S Switch Features
The front panel of the X435-8P-4S switch includes:
•
Eight 10/100/1000BASE-T PoE+ ports that provide 8Gbps of high-density copper connectivity. In
addition, all of these ports (ports 1-8) support the POE protocol IEEE802.3af and PoE+ protocol
IEEE802.3at standard.
All X435 PoE models can provide up to 15.4W by using PoE protocol, and provide up to 30W by
using PoE+ protocol on a single port.
•
Four unpopulated 1/2.5G SFP ports that support fiber connectivity
•
One RJ-45 console port
•
One USB A port
•
LEDs to indicate port status and switch operating conditions
For a description of the LEDs and their operation, see
page 28

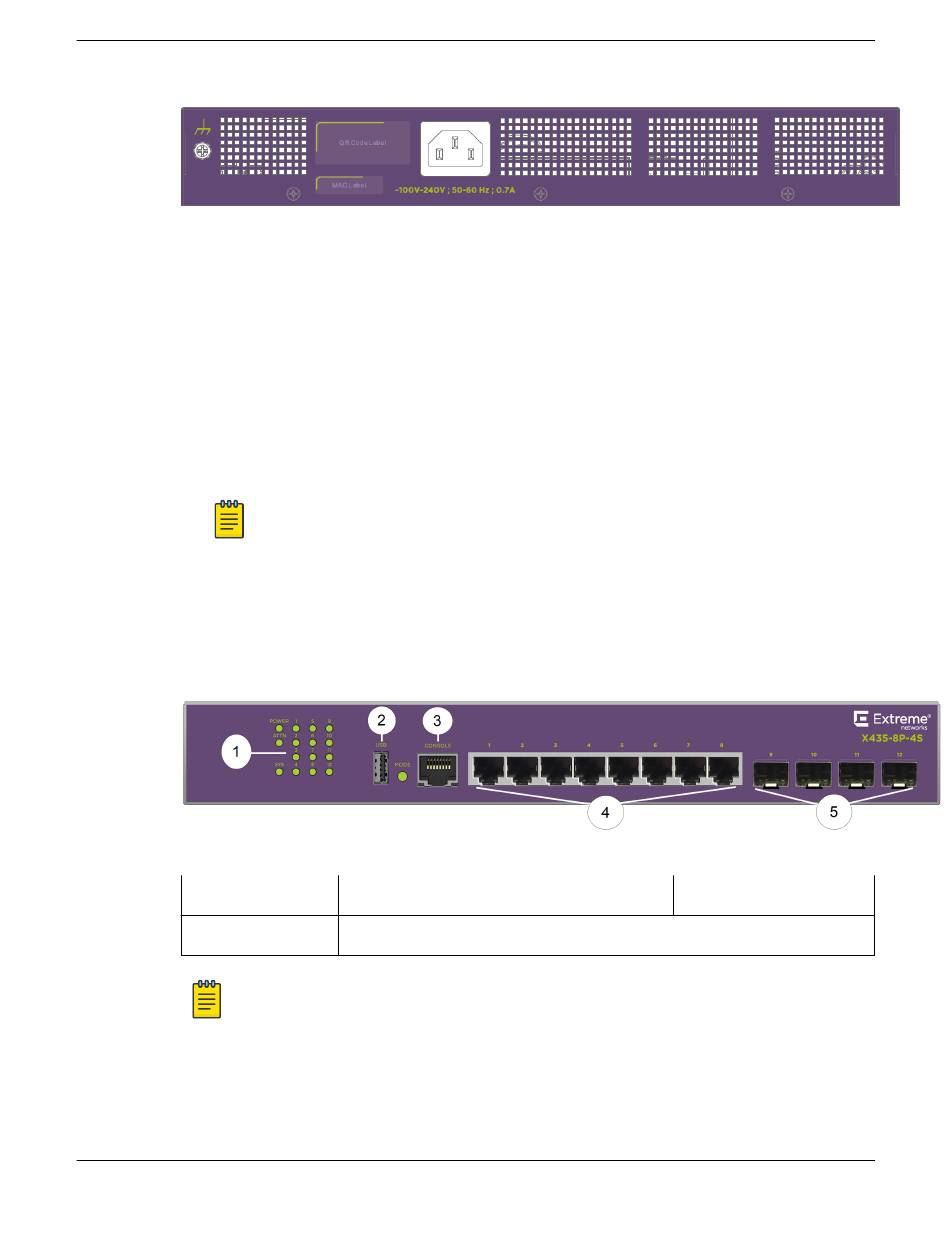

Figure 3: X435-8P-4S Front Panel
1 = System LEDs
2 = USB A port
Note
*2.5Gb uplink support is a future capability
The rear panel of the X435-8P-4S switch includes:
•
AC power input socket
The internal AC power supply operates from 100VAC to 240VAC.
24 ExtremeSwitching Hardware Installation Guide
Note
2.5Gb uplink support is a future capability
3 = RJ-45 console port
4 = 10/100/1000BASE-T PoE+ ports
ExtremeSwitching Switches
ExtremeSwitching X435 Series Switch LEDs
5 = 1/2.5G SFP ports*
on
