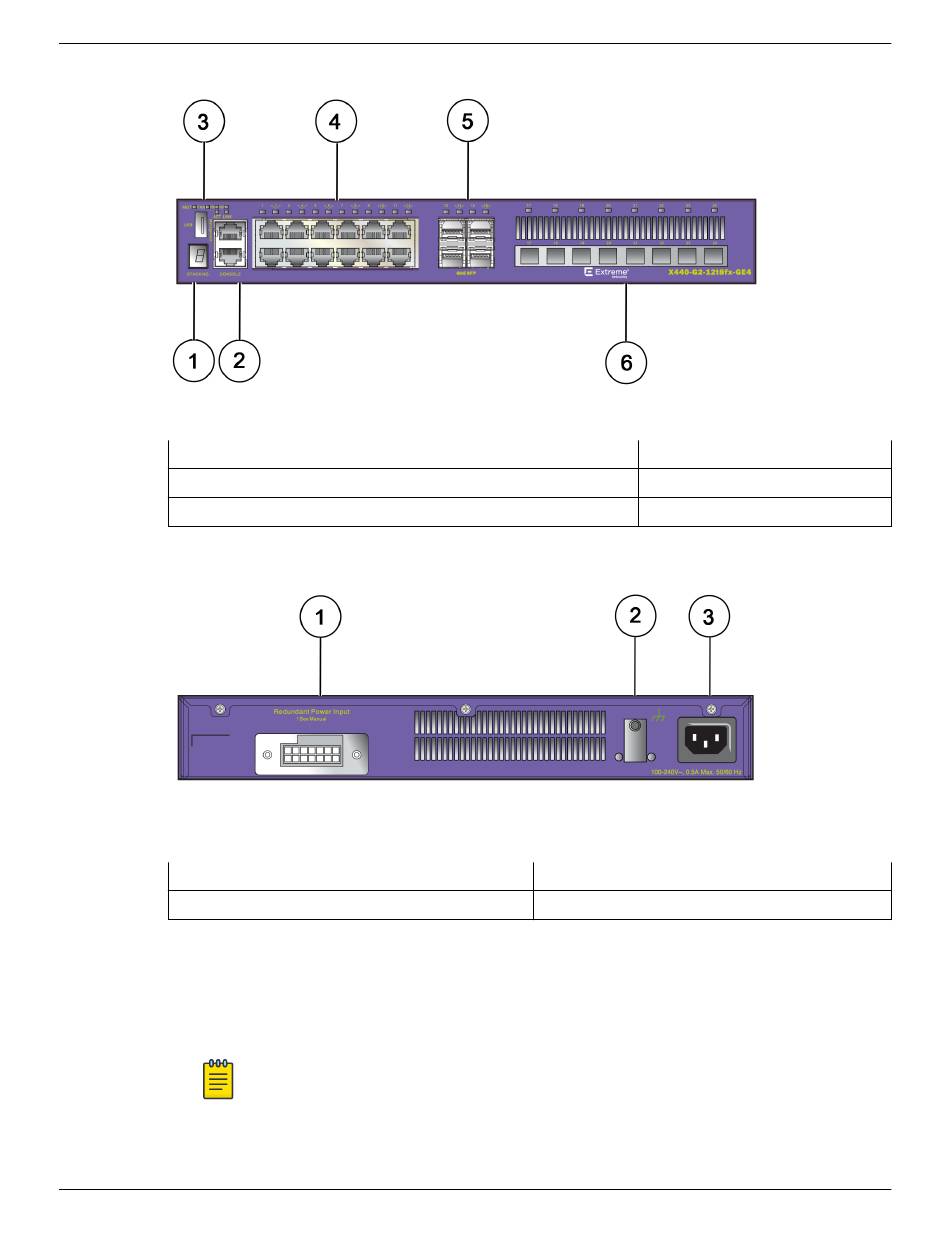

Figure 32: ExtremeSwitching X440-G2-12t8fx-GE4 Front Panel
1 = Stack number indicator
2 = Console port/Ethernet management port
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 33: ExtremeSwitching X440-G2-12t8fx-GE4 Rear Panel
1 = Redundant power input
2 = Grounding lug

ExtremeSwitching X440-G2-24fx-GE4 Switch Ports and Slots

The ExtremeSwitching X440-G2-24fx-GE4 switch ports and slots include:
•
24 front panel 100BASE-FX LC connectors.
•
Four unpopulated front panel 1GBASE-X SFP ports.
Note
The LC connectors are transceivers with an LC interface.
ExtremeSwitching X440-G2-24fx-GE4 Switch Ports and
4 = 10/100/1000BASE-T ports
5 = 1GBASE-X SFP ports
6 = 100BASE-FX LC connectors
3 = AC power input socket
