ExtremeSwitching X460-G2-24p-24hp-10GE4 Switch
Ports and Slots
1
MGT FAN P1 P2 S1 S2
CLK ACT LINK
USB
2 3

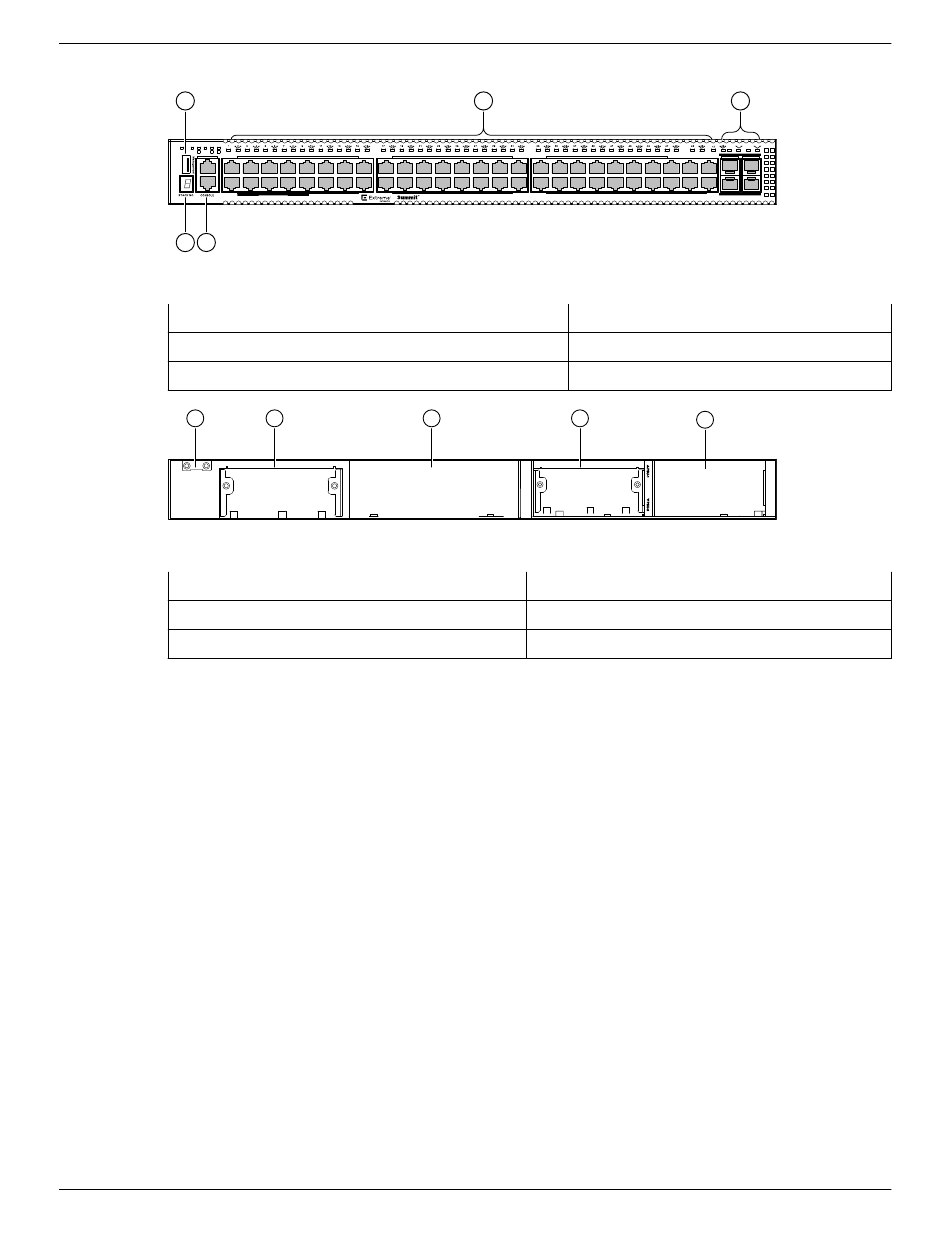

Figure 74: X460-G2-48p-10GE4 Front Panel
1 = USB port
2 = Stack number indicator
3 = Console port/Ethernet management port
1
Figure 75: X460-G2-48p-10GE4 Rear Panel
1 = TM-CLK (clock) slot cover
2 = VIM slot cover
3 = Fan module slot

ExtremeSwitching X460-G2-24p-24hp-10GE4 Switch Ports and Slots

X460-G2-24p-24hp-10GE4 switch ports and slots include:
•
24 front panel PoE+ ports of 10/100/1000BASE-T (ports 1-24) that support full-duplex
communication only
•
24 front panel PoE+ ports of 10/100/1000BASE-T (ports 25-48) that support full-duplex
communication and support half-duplex communication at speeds less than 1 Gb
•
Four ports of 10GBASE-X SFP+ (ports 49-52, with two of these ports configurable to be stacking
ports).
•
One front panel USB port.
•
Ethernet management port 1 x 10/100/1000BASE-T.
•
Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
•
One rear panel VIM slot.
•
One rear panel TM-CLK (clock) slot.
•
Rear dual PSU power slots with front-to-back or back-to-front airflow.
•
One rear slot for fan module with front-to-back or back-to-front airflow.
70 ExtremeSwitching Hardware Installation Guide
X4 6 0 -G2 -4 8 p-10GE4
SYNC-E Input Ports
2 3
4
4 = PoE+ 10/100/1000BASE-T ports
5 = SFP+ 10GBASE-X ports
4
4 = Blank power supply cover
5 = Power supply slot
ExtremeSwitching Switches
5
49 50 51 52
SYNC-E Inputs 1 0 Gb E SFP +
5
