Install the TX Matrix Plus Router Using a Lift

14

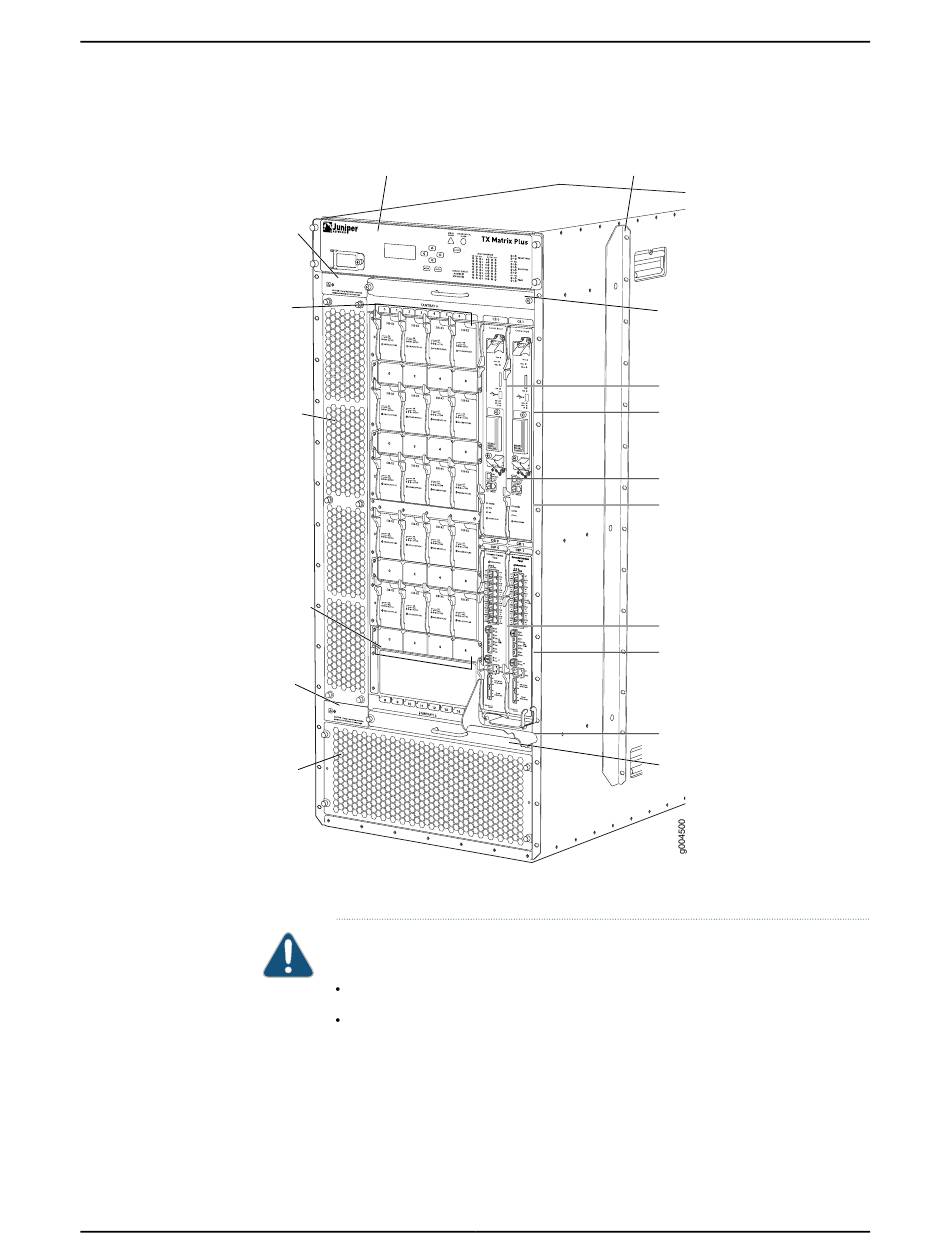

Figure 6: Front of the TX Matrix Plus router
Craft interface panel
ESD
point
TXP-F2
SIBs
Air
intake
(2 air
filters)
TXP-F2
SIBs
ESD
point
Air
intake
(air filter)
CAUTION: Before installing the TX Matrix Plus router:
Read the safety information in TX Matrix Plus Installation Safety Guidelines.
Ensure that a mechanical lift and Phillips (+) screwdriver, number 2 are
available for the installation. Because of the TX Matrix Plus router's size
and weight—up to 925 lb (420 kg) depending on configuration—you must
use a lift to install the TX Matrix Plus router.
Center-mounting bracket
Fan tray 0
RE 0
RE 1
CB 0
CB 1
CIP 0
CIP 1
Front cable
manager
Fan tray 1
