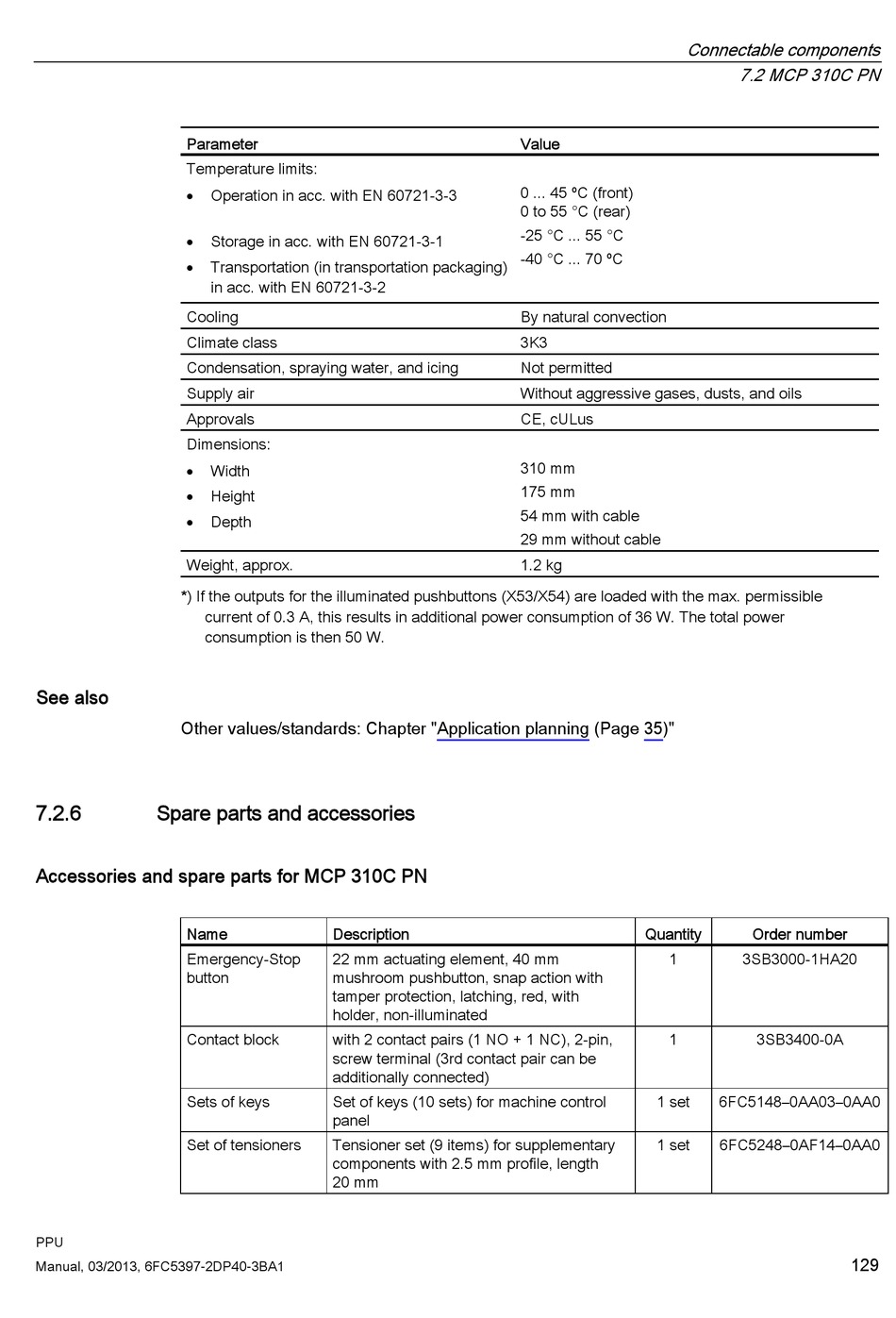

Spare Parts And Accessories - Siemens SINUMERIK 828D Manual

Parameter
Temperature limits:



Cooling
Climate class
Condensation, spraying water, and icing
Supply air
Approvals
Dimensions:



Weight, approx.
*) If the outputs for the illuminated pushbuttons (X53/X54) are loaded with the max. permissible
See also
Other values/standards: Chapter "Application planning (Page 35)"
7.2.6

Spare parts and accessories

Accessories and spare parts for MCP 310C PN
Name
Emergency-Stop
button
Contact block
Sets of keys
Set of tensioners
PPU
Manual, 03/2013, 6FC5397-2DP40-3BA1
Operation in acc. with EN 60721-3-3
Storage in acc. with EN 60721-3-1
Transportation (in transportation packaging)
in acc. with EN 60721-3-2
Width
Height
Depth
current of 0.3 A, this results in additional power consumption of 36 W. The total power
consumption is then 50 W.
Description
22 mm actuating element, 40 mm
mushroom pushbutton, snap action with
tamper protection, latching, red, with
holder, non-illuminated
with 2 contact pairs (1 NO + 1 NC), 2-pin,
screw terminal (3rd contact pair can be
additionally connected)
Set of keys (10 sets) for machine control
panel
Tensioner set (9 items) for supplementary
components with 2.5 mm profile, length
20 mm
Connectable components
Value
0 ... 45 ºC (front)
0 to 55 °C (rear)
-25 °C ... 55 °C
-40 °C ... 70 ºC
By natural convection
3K3
Not permitted
Without aggressive gases, dusts, and oils
CE, cULus
310 mm
175 mm
54 mm with cable
29 mm without cable
1.2 kg
Quantity
1
1
1 set
1 set
7.2 MCP 310C PN
Order number
3SB3000-1HA20
3SB3400-0A
6FC5148–0AA03–0AA0
6FC5248–0AF14–0AA0
