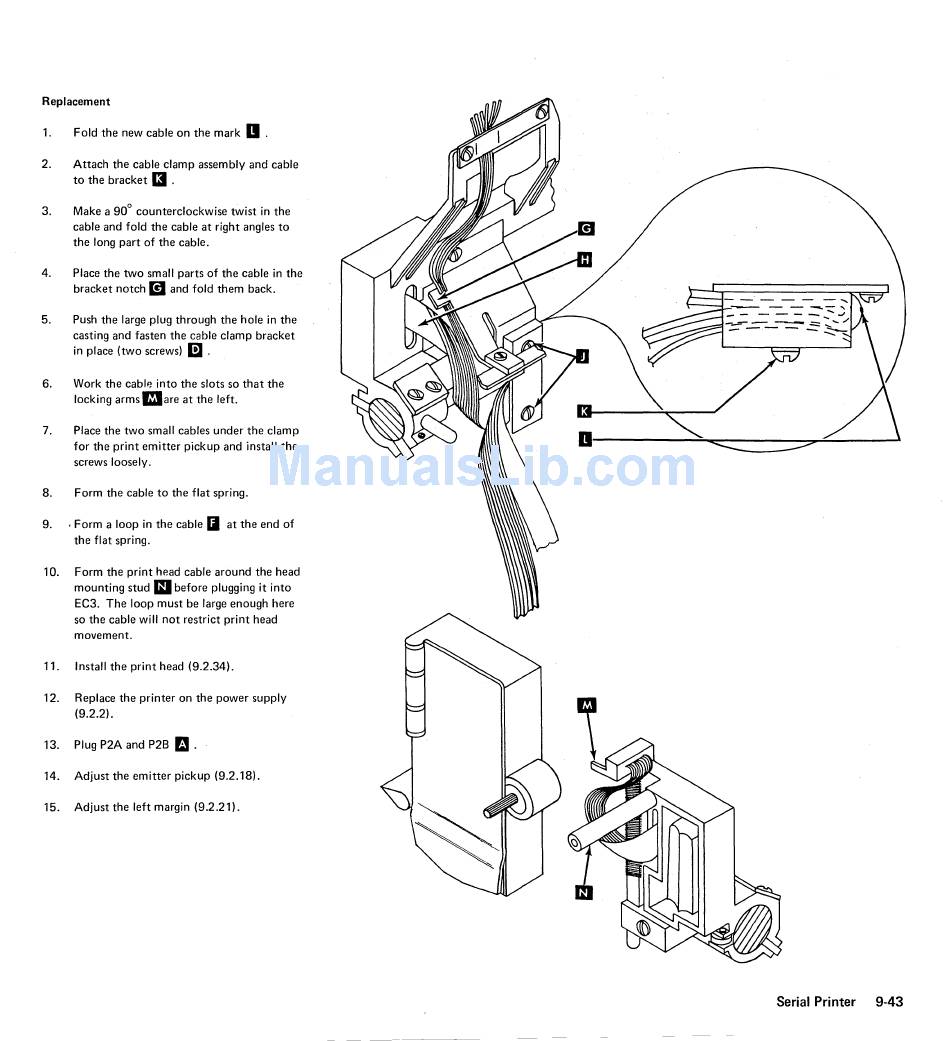

Replacement
1.
Fold the new cable on the mark
D .
2.
Attach the cable clamp assembly and cable
to the bracket
13 .
3.
Make a 90° counterclockwise twist in the
cable and fold the cable at right angles to
the long part of the cable.
4.
Place the two small parts of the cable in the
bracket notch
Ii)
and fold them back.
5.
Push the large plug through the hole in the
casting and fasten the cable clamp bracket
in place (two screws)
m .
6.
Work the cable into the slots so that the
locking arms mare at the left.
7.
Place the two small cables under the clamp
for the print emitter pickup and install the
screws loosely.
8.
Form the cable to the flat spring.
9.
. Form a loop in the cable
Ii
at the end of
the flat spring.
10.
Form the print head cable around the head
mounting stud
III
before plugging it into
EC3. The loop must be large enough here
so the cable will not restrict print head
movement.
11.
Install the print head (9.2.34).
12.
Replace the printer on the power supply
(9.2.2).
13.
Plug P2A and P28
E1 .
14.
Adjust the emitter pickup (9.2.18).
15.
Adjust the left margin (9.2.21).
D--------~~------~~----~
Serial Printer
9-43
