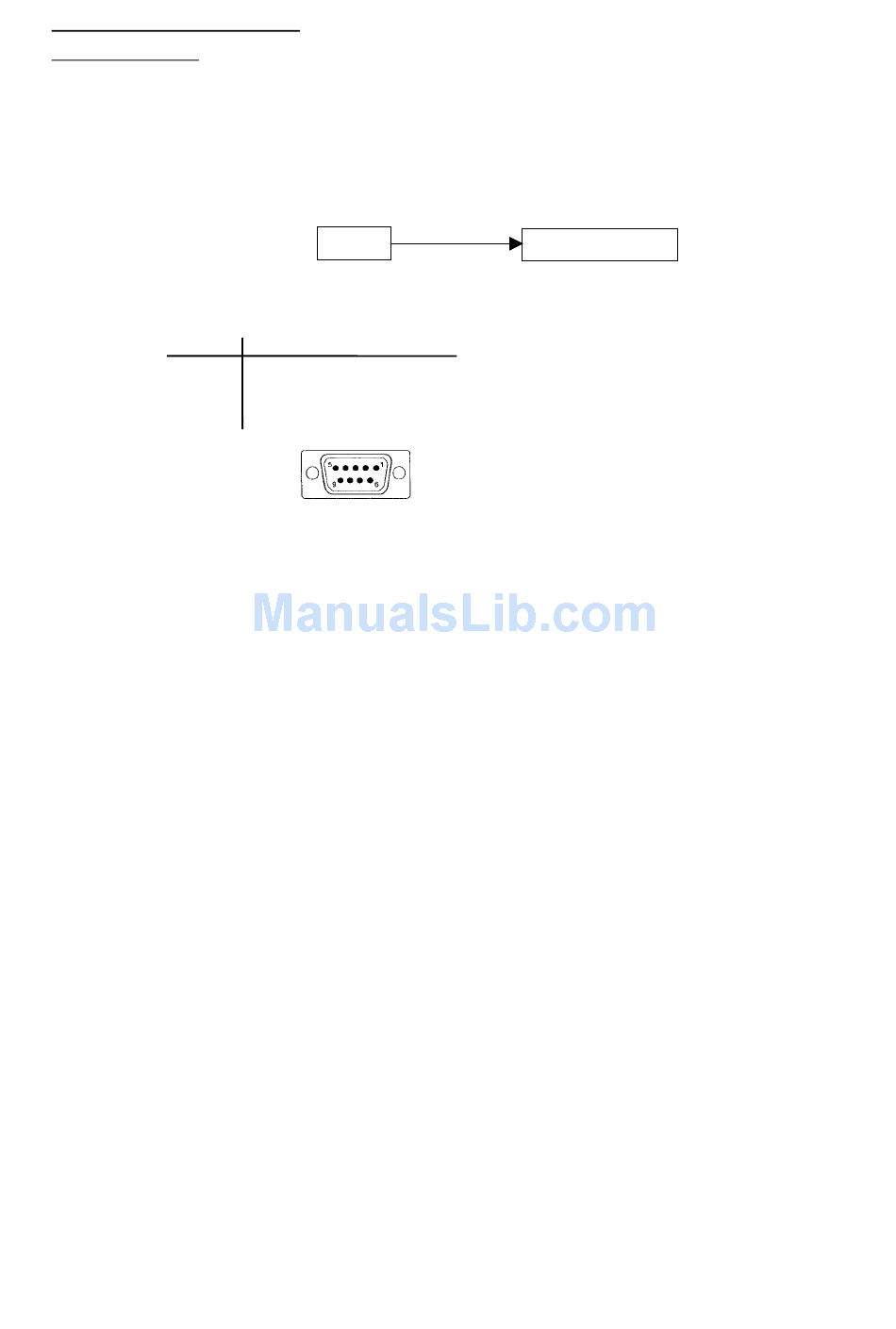

9) REMOTE CONTROL RS-232
9-1) CONNECTION
•
CONNECTING THE RS-232
• Connect the serial port of your Controlling Device (computer) to the REMOTE CONTROL
(RS-232) connector (DB 9 F) of the SMART SCALER™ with a straight cable (DB 9 Female / DB 9 Male).
•
PIN-OUT
Pin #
2
3
5
•
SPEED TRANSMISSION : 9600 Bauds, 8 Data bits, 1 Stop bit, No Parity bit.
PC
Functions
TRANSMIT DATA (Tx)
RECEIVE DATA (Rx)
GROUND (Gnd)
DB 9 female
(Rear panel of the SMART SCALER™)
SMS100 - ED 07/01
SMS100
ANALOG WAY
PAGE 19
