SmartVu LE - SVU200

QUICK START

Thank you for choosing Analog Way and the SmartVu LE. By following these simple steps, you

should be able to setup and use your powerfull scaler/switcher within minutes. Discover the SmartVu

LE extensive capabilities and intuitive interface while configuring your first show, and unleash your

creativity for a new experience in show and event management by Analog Way.

What's in the box

1 x SmartVu LE seamless scaler/switcher

1 x Power supply cord

1 x HD15 to 5 BNC cable

1 x Ethernet crossover cable

1 x Set of 3 audio 5 pin screw terminals

1 x RCS CD-ROM (PC only)

1 x User manual CD-ROM (Mac and PC)

1 x Quick Start guide

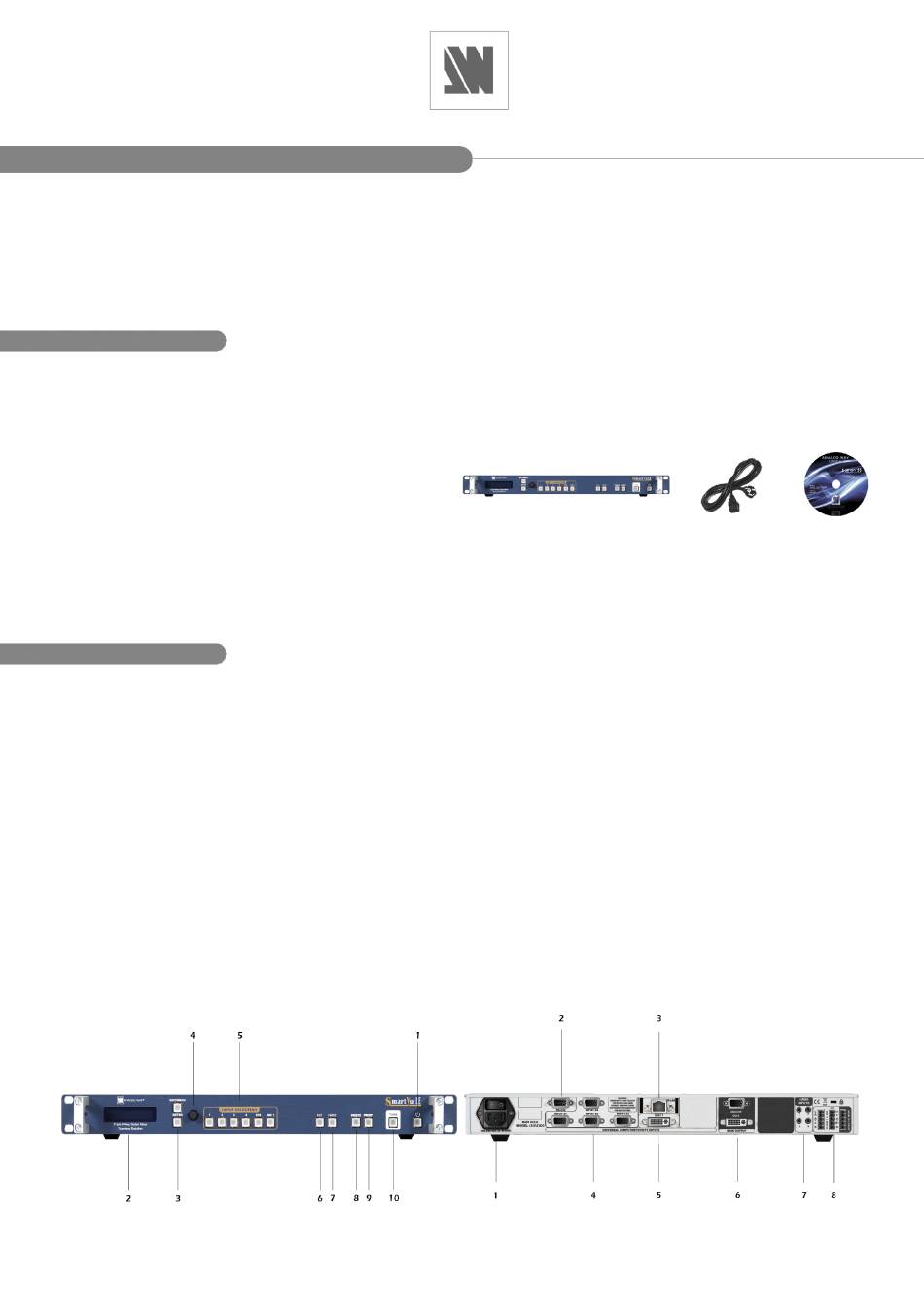

SmartVu LE Overview

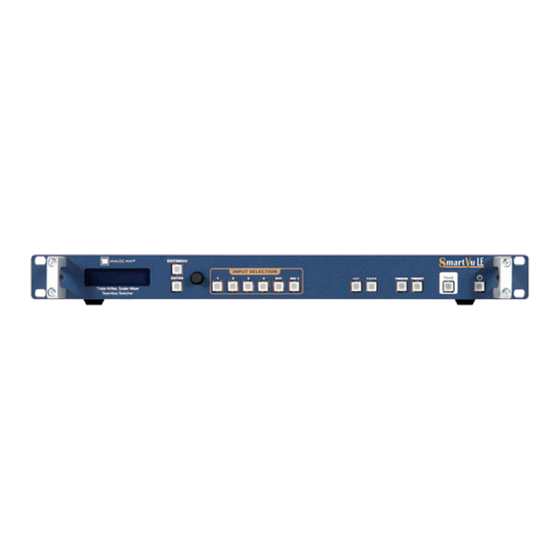

The SmartVu LE front panel is comprised of several sections, each carefully labeled and self

explanatory, corresponding to all of the machine's versatile functions.

The STANDBY button (1) will allow users to turn the device on and off once the main outlet switch

(11) is turned on. The menu screen (2), Control section (3), and menu scroll knob (4) will give

users access to the SmartVu LE menu. The Input Selection section (5), determines which of the 6

available input sources will be used. The CUT and FADE buttons (6 and 7), are front panel shortcuts

to the transitions available in the Layer menu of the SmartVu LE. The FREEZE button (8) allows

users to take a snapshot of the displayed image, and the PRESET button (9) is a shortcut to the

SmartVu LE menu Presets function. The TAKE button (10) of the SmartVu LE will let you take a

selected source to the Main output. The rear panel of the SmartVu LE will let you connect all of your

input sources and outputs to the device. Plug universal analog sources (14) or DVI-I sources (15),

audio inputs and outputs (17 and 18), and a remote controller to the IP/LAN connector (13) of your

SmartVu LE.

Need help?

Do you have a question about the SmartVu LE and is the answer not in the manual?

Page 1 SmartVu LE menu Presets function. The TAKE button (10) of the SmartVu LE will let you take a selected source to the Main output. The rear panel of the SmartVu LE will let you connect all of your input sources and outputs to the device. Plug universal analog sources (14) or DVI-I sources (15), audio inputs and outputs (17 and 18), and a remote controller to the IP/LAN connector (13) of your SmartVu LE.
Page 2 Connect the supplied AC power cord to the unit, then connect the other end of the cord to a grounded AC outlet. Power up the SmartVu LE by pressing the I/0 button at the rear of the unit, and wait for the menu to run its startup sequence.
Page 3 Your SmartVu LE is now set up and ready to work with. SmartVu LE layers The SmartVu LE offers only one type of layer to work with : Live Background. To work with a live background, simply select a live input source (1-5) from the Input Selection section of the SmartVu LE.
Page 4 The Menu Tree of the SmartVu LE (p.30 of the User Manual), was designed to be printed for easy reference of all of the machine’s numerous functions.
