Analog way SMS100 Smart Scaler Operating Manual page 11

6) LCD MENU & CONTROL (continued)
6-2) LCD MENUS (continued)

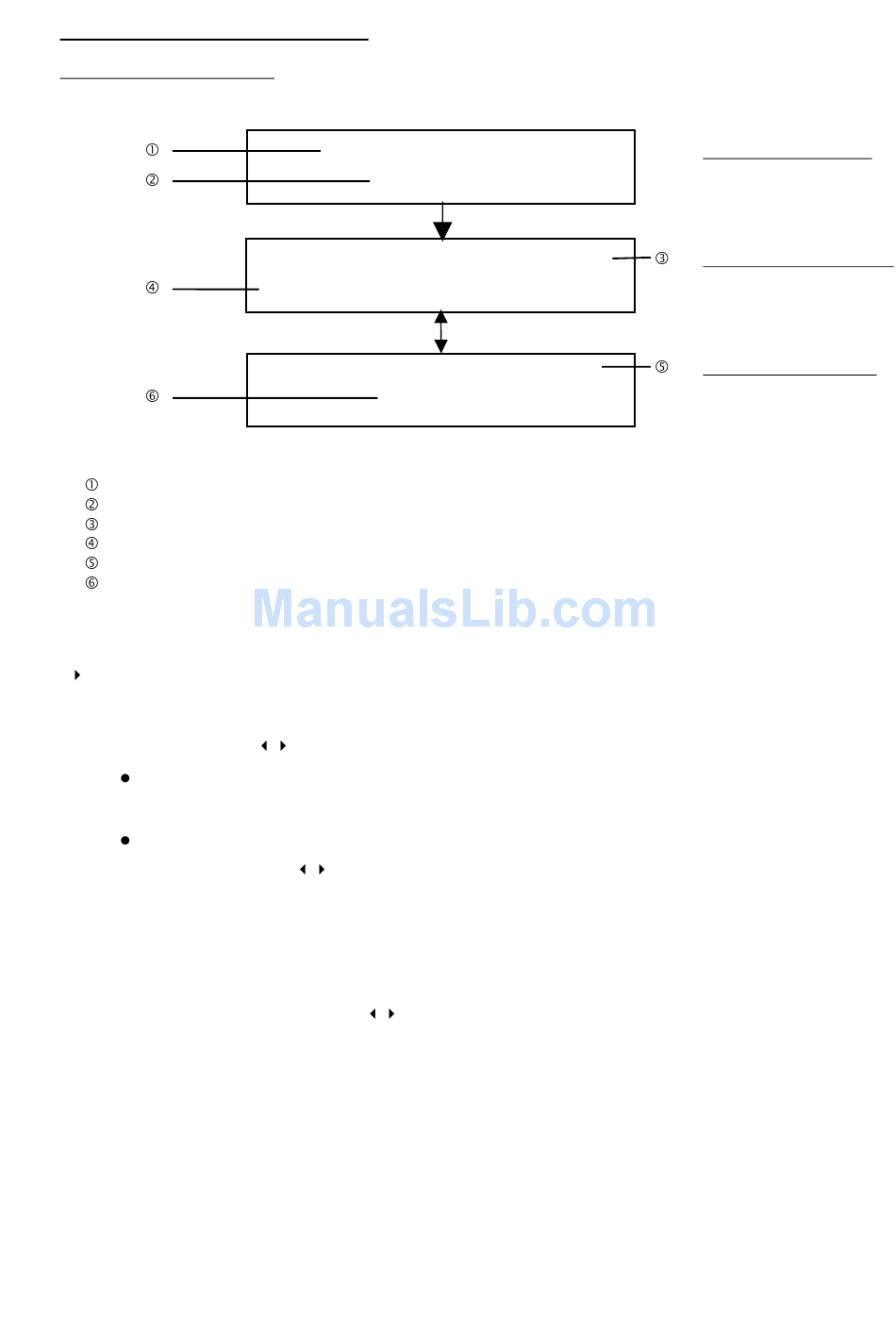

• LCD STATUS MENUS
PRODUCT NAME
PRODUCT MODEL
OUTPUT SYNC TYPE (H&V = H &V Separate Sync, COMP = Composite Sync)
OUTPUT FORMAT
DISPLAYED INPUT
VIDEO STANDARD OF THE DISPLAYED INPUT
• LCD CONTROL MENUS
[INPUT MENU] + ENTER
1
1-1 [VIDEO STANDARD] + ENTER
Select an item with
[AUTO] = Automatic recognition of the video standard for all inputs.
PAL / NTSC / SECAM / Black & White are detected automatically; if not, please use the [MANUAL] setting.
[MANUAL] = Manual selection of the video standard for each input.
1. Select an input with
• [C.VIDEO 1]
• [C.VIDEO 2]
• [S.VIDEO 1]
• [S.VIDEO 2]
2. Select the video standard with
• [AUTO] = Automatic recognition.
• [NTSC] = NTSC detection only.
• [PAL] = PAL detection only.
• [SECAM] = SECAM detection only.
• [Black & White] = Black and White detection only.
SMART SCALER
SMS 100
OUTPUT
800 X 600 L
INPUT
NTSC (auto)
+ ENTER
+ ENTER
+ ENTER
ANALOG WAY
SMS100 - ED 07/01
SYNC= H&V
S.VIDEO 1
MAIN STATUS MENU
OUTPUT STATUS MENU
INPUT STATUS MENU
PAGE 11
