Removing and Replacing the Handle or Handle PCB

You need the following parts to replace the handle PCB or handle assembly:
•
Handle PCB (P/N 072372S-001 (PDT) or 072373S-001 (Standard))
•
Handle assembly (P/N 070324-001 (PDT) or 067050-003 (Standard))
•
Kapton tape (if replacing handle PCB)
To replace the handle assembly or the handle PCB, you must first remove the handle
from the 1555. To remove the handle you need the following tools:
•
Torque driver with a #10 Torx bit
To remove the handle or handle PCB
1. For a PDT 1555, remove the battery pack and then remove the extender wedge as
described on page 2-3.
For a standard 1555, start with the next step.
2. Remove the Caution label on the handle base.
3. Remove the three Torx screws on the handle base.

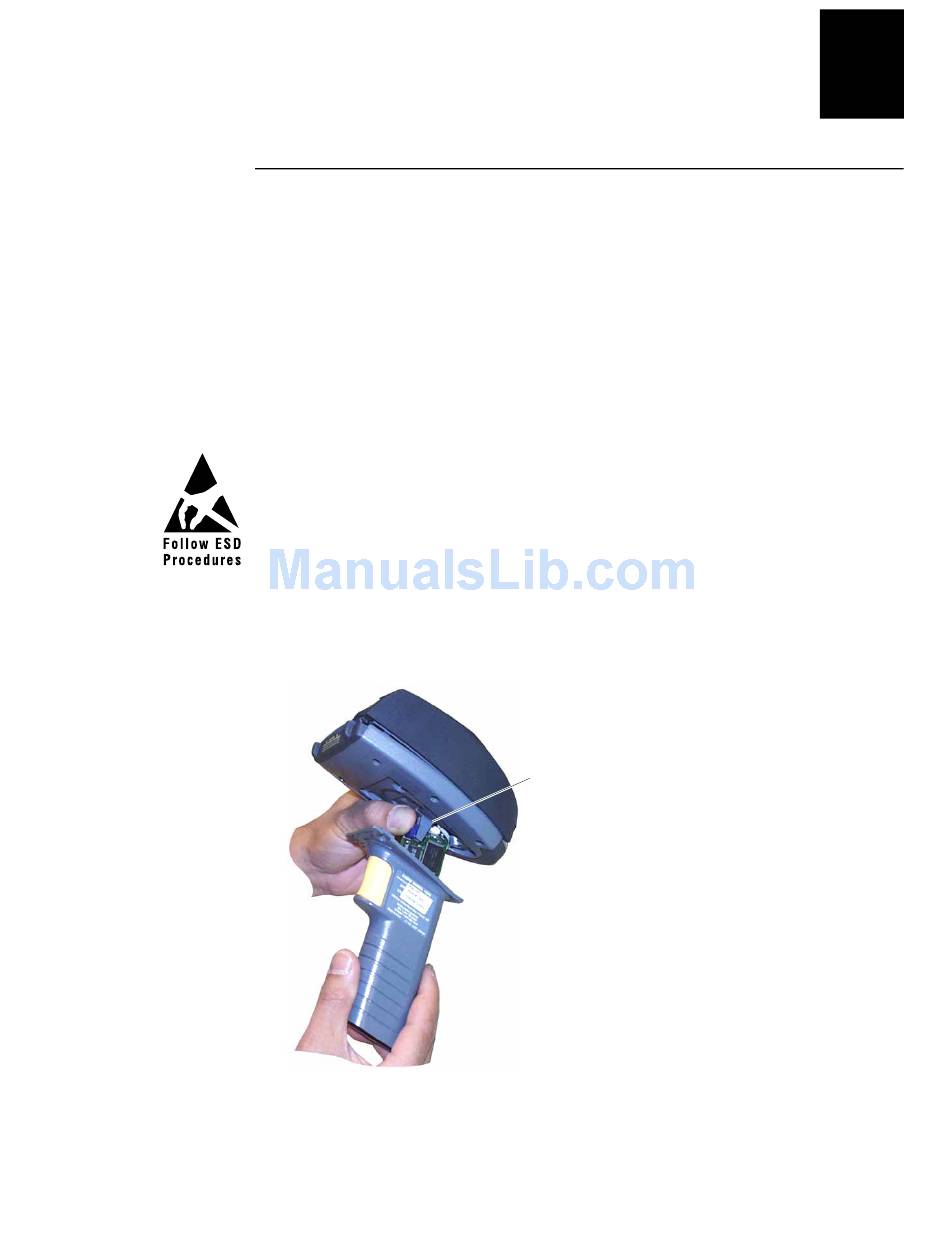

4. Slide the handle part way off the handle PCB, and hold the handle PCB in place
with your thumb by pressing the trigger against the PCB brace.
5. Slide the handle assembly all the way off the handle PCB.
Replacing Parts in the 1555
PCB brace
