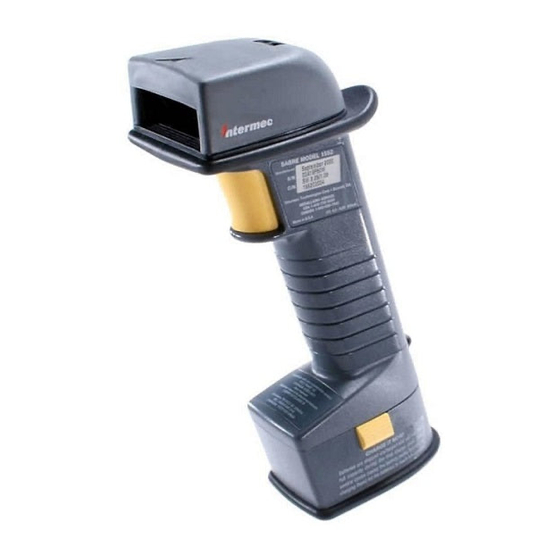

Sabre 1552 Bar
Code Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sabre 1552 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec Sabre 1552

Summary of Contents for Intermec Sabre 1552

  • Page 1 User's Guide Sabre 1552 Bar Code Scanner...
  • Page 2 U.S. media supplies ordering information: 1-800-227-9947 Canadian service and technical support: 1-800-668-7043 Canadian media supplies ordering information: 1-800-268-6936 Outside U.S.A and Canada: Contact your local Intermec service supplier. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service...

  • Page 3: Table Of Contents

    1233* Contents Overview of the Sabre 1552 Scanner 5 Unpacking the Scanner 7 Understanding the Features 8 Light 8 Beeps 9 Electrical Rating 9 Associating the Scanner to the MicroBar 9745 Base Station 10 Operating the Scanner 11 Configuring the Marker Beam 13...
  • Page 4 1233* blank...

  • Page 5: Overview Of The Sabre 1552 Scanner

    1233* Overview of the Sabre 1552 Scanner The Intermec Sabre 1552 Scanner delivers quick, effortless bar code scanning. The following table lists the different scanner configurations, giving the optics and radio frequency (RF) configurations by country. Scanner Configuration 1552C0003 A standard-range optics scanner with RF for Europe, except France and Spain.
  • Page 6 A linear imager scanner with RF for France, Mexico, and Spain. Configurations are continually being added to this list; consequently, some of the most recent additions may not be shown here. Contact your local Intermec representative for a current list.

  • Page 7: Unpacking The Scanner

    • Sabre 1552 Bar Code Scanner User’s Guide • Important 1552 Information manual supplement If any of these items are missing or damaged, please contact your local Intermec representative. Retain the shipping box in case you need to ship the scanner. Sabre 1552 Scanner...

  • Page 8: Understanding The Features

    The scanner successfully scanned and transmitted a 5 seconds programming bar code. Flashing green for The scanner is out of the range of the base or not 2 seconds associated with the base. Flashing green for The scanner unsuccessfully scanned a programming 5 seconds bar code.

  • Page 9: Beeps

    1233* Beeps The scanner emits these beeps to indicate either a successful scan or a situation that requires your attention. Beep Sequence Description No beep No scanning, scanning, or low battery (trigger pulled) 1 beep Successful decode and communication. Clicking, then 1 Successful reassociation.

  • Page 10: Associating The Scanner To The Microbar 9745 Base Station

    To associate the scanner to the base 1. Connect the base to your network. For help, see the Sabre 1552 Scanner and MicroBar 9745 Base Station System Manual (Part No. 070086).

  • Page 11: Operating The Scanner

    • All cable connections from the base station are secure. To scan bar codes 1. Aim the scanner at a slight angle or pitch to the bar code and press the trigger. To help you center the scan beam on the correct bar...
  • Page 12 Vertical reading angles (pitch) 1552QRG.008 2. If you did not get a good read, adjust the scanner distance from the bar code and the position of the scan beam to make sure you scan every bar and space. *HI* *HI*...

  • Page 13: Configuring The Marker Beam

    1233* Configuring the Marker Beam You may want to configure a marker beam on advanced long-range, long-range, and high-visibility laser scanners. To turn the marker beam off and on • Scan one of the following bar codes.

  • Page 14: Troubleshooting The Scanner

    If you are still unable to scan, make sure the bar code symbology you are scanning is enabled. For help, see the Sabre 1552 Scanner and MicroBar 9745 Base Station System Manual. Scanner does not read...
  • Page 15 An error has occurred. beeps. The scanner is not communicating with the base. Make sure that the scanner is in range and that the scanner is associated to the base. The scanner does not recognize the programming bar code scanned. Make sure you are scanning the...

  • Page 16: Maintaining The Scanner

    Intermec representative. Maintaining the Scanner Water or grime on the window of the scanner will distort the scan beam and impair performance. Moving from one temperature extreme to another causes condensation to form on the optical surfaces that affects scanner performance.

  • Page 17: Accessories For The Scanner

    Intermec representative. Holster and Belt Part No. 068174 You can store your scanner on you when it is not in use. The holster can be used with the belt provided or with any regular belt. Wall-Mount Scanner Holder Part No.
  • Page 18 Accessories (continued) 1552QRG.010 AC Power Cords for the Charge Strips Country or Region Part No. Chile and Italy 586282 Denmark and Greenland 586283 Europe 586267 Liechtenstein and 586276 Switzerland North and Central America 586105 South Pacific 586281 United Kingdom 586266 2-Bay Charge Strip Part No.

  • Page 19: More Information

    You may need additional information when working with the Sabre 1552 Scanner in your data collection system. Please visit our Web site at www.intermec.com to download many of our current manuals in PDF format. To order printed versions of the Intermec manuals, contact your local Intermec representative.
  • Page 20 Corporate Headquarters 6001 36th Avenue West Everett, Washington 98203 tel 425.348.2600 fax 425.355.9551 www.intermec.com Sabre 1552 Bar Code Scanner User's Guide *067049-004* *067049-004*...
