Intermec Sabre 1400 Quick Start Manual

Hand-held scanner
Hide thumbs Also See for Sabre 1400:
Table of Contents

Advertisement

Quick Links

Quick Start Guide
Sabre 1400
Hand-held Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sabre 1400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec Sabre 1400

Summary of Contents for Intermec Sabre 1400

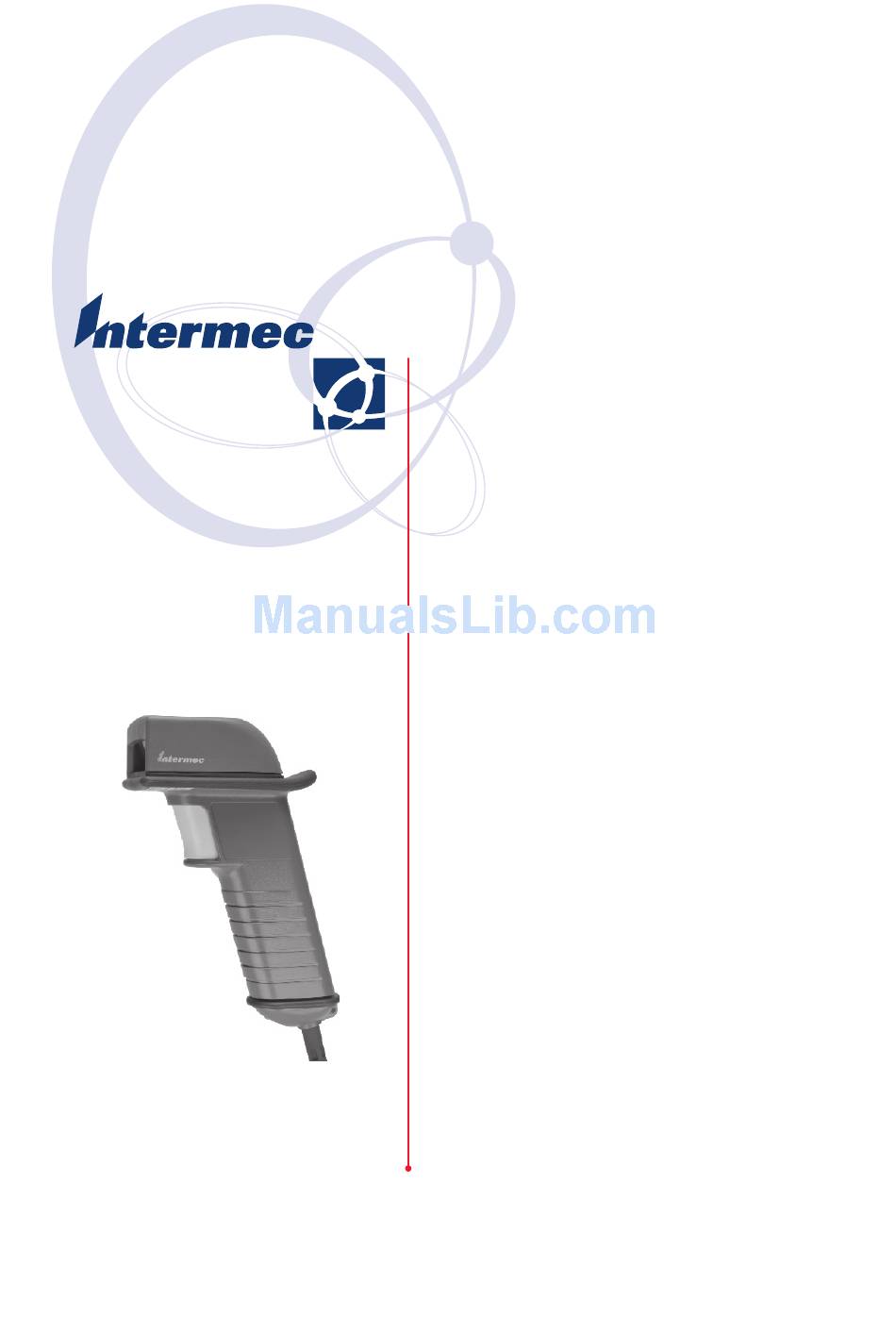

  • Page 1 Quick Start Guide Sabre 1400 Hand-held Scanner...
  • Page 2 Introduction Use this Quick Start Guide to set up the Sabre 1400 for most terminal connections and symbologies. If necessary, use the EasySet setup software for additional configuration possibilities and terminal connections. Full setup Configuración completa Configuration complète Vollständige Konfiguration Configurazione completa Configuração completa...
  • Page 3 Connect scanner cable With the Sabre 1400 : - Do not use Sabre 1551A, B, or C cables. - Do not use DEC VT 220 cable for Sabre 1551E (3-604037-11) (may damage the Sabre 1400). Cables accessories Scanner cable depends on...
  • Page 4 Keyboard wedge (for PC) System power OFF Connect cables Din/mini-Din adaptor cable PC wedge cable P/N 3-604037-21 power supply (normally not required) System power ON Select keyboard QWERTY US English AZERTY French QWERTZ German QWERTZ Swiss / French...
  • Page 5 QWERTY Swedish / Finnish QWERTY Italian QWERTY Norwegian QWERTY Danish QWERTY Spanish QWERTY Portuguese Customize parameters (optional) (*) = default value Postamble = Enter (*) Postamble = Carriage Return Postamble = none Postamble = Tab...
  • Page 6 RS-232 C System power OFF Connect cables Scanner power ON System power ON Read this code (standard RS-232 C PC serial port compatible) Standard RS-232 C cable P/N 3-604032-18 9600 baud, 7 data bits, even parity, 2 stop bits postamble = carriage return + line feed...
  • Page 7 Customize parameters (optional) (*) = default value 9600 baud (*) 19200 baud 7 data bits (*) 8 data bits Even parity (*) Odd parity No parity Postamble = Carriage Return + Line Feed (*) Postamble = Carriage Return Postamble = none...

  • Page 8: Wand Emulation

    Wand emulation System power OFF Connect cable Wand emulation cable P/N 3-606031-13 System power ON Wand emulation Digital wand emulation Analog wand emulation - Intermec interface, white high...
  • Page 9 Symbology Disable all symbologies Select symbology Code 39 Code 128 / EAN 128 UPC-A, UPC-E, EAN-8, EAN-13 UPC-A, UPC-E, EAN-8, EAN-13 (UPC-A -> EAN-13) (UPC-A -> UPC-A)

  • Page 10: Default Setup

    Test symbology Default setup...
  • Page 11 Full setup with EasySet System power OFF Connect RS-232 C cable (P/N 3-604032-18) Scanner power ON System power ON Read this code Start EasySet software EasySet setup...

  • Page 12: Operation

    Operation "beep" "beep" scanner stand P/N 068484...

  • Page 13: Reading Distance

    Reading distance 2 cm - 30 cm (0.8" - 11.8") Typical average reading distance...

  • Page 14: Regulatory Statements

    Regulatory statements Intermec hereby declares that the Sabre 1400 has been tested and found compliant with the below listed standards as required by the EMC Directive 89/336/EEC as amended by 92/31/EEC and by the Low Voltage Directive 73/23/EEC as amended by 93/68/EEC: EN55022, EN55024, EN60950, EN 60825-1. This device is TÜV GS certified for safety: EN 60950 and EN 60825-1.
  • Page 16 1 800 668 7043 Europe / Middle East / Africa • Sovereign House, Vastern Road, Reading RG1 8BT, England • Tel: +44 (0)118 987 9400 Fax: +44 (0)118 987 9401 Internet: http://www.intermec.com E-mail: info@intermec.com P/N 3-650049-01 Rev. D...
