Summary of Contents for Intermec Sabre 1545

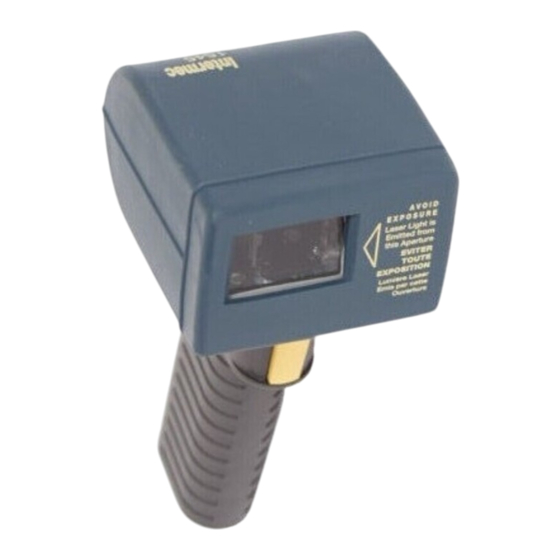

- Page 1 User’s Guide 1545 Bar Code Laser Scanner 6001 36th Avenue West PO Box 4280 Everett, WA 98203-9280 Phone (206) 348-2600 P/N 057286-003 P/N 057286-003...
-
Page 2: Specifications
UL Listed with Class 2 outputs. Patent Information This scanner is the subject of patents applied for by Intermec. This scanner is also protected by one or more of the following U.S. patents and equivalent foreign patents: 4,334,301... -
Page 3: Regulatory Statements
(such as a printer, external modem, etc.) must be shielded and the cable shield grounded as specified by Intermec. Caution: Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment. Industry Canada Compliance... -
Page 4: Installation
Installation Connect cable to scanner (cable sold separately). Connect cable to reader (scanner plug to reader socket). 1545UG.007 97XX Reader Unpack the scanner and inspect it for physical damage. 1545UG-003 1545UG-006 IEC ENGLISH JAPANESE LASER LIGHT - DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT 1.0mW - 650/670nm... -
Page 5: Laser Safety Information
Laser Safety Information The following additional labels are provided with the 1545 when the product is used outside of the USA or Canada. One of these labels is intended to be placed over the existing label. See the 1545 Label Application Instruction Sheet for correct orientation and placement of the label. - Page 6 Cables The type of cable used with the 1545 Laser Scanner depends on the type of reader to which it is attached. Compatible Intermec readers include: 944X Portable Readers 946X Portable Readers 9450 RF Vehicle Mount Readers 95XX Wedge/Network Readers...
-
Page 7: Troubleshooting
1. Try scanning printed bar code that is known to be machine readable. 2. Clean the scanner window. Use a dry, soft cloth, but do not use water, solvents, or cleaning agents; doing so will damage the scanner window. Follow the scanning tips described in this quick reference guide. -
Page 8: Operation
Start out close to the bar code and move back from there. If you fail to get a quick read, try moving the scanner to a point where it is less sensitive to poorly printed or distorted bar code. Maintenance...
