2.1 System Description

Before beginning the UTC-318 system setup, users are advised to familiarize them-
selves with the locations and functions of the controls, drivers, connectors, and ports,
as shown in the figures below.
The front panel of the UTC-318 is shown in Figure 2.1.
The UTC-318 rear cover and I/O are shown in Figure 2.2. (The system features rich I/
O, including serial, Ethernet, USB, HDMI, line-out, mic-in, and DC-in ports, as well as
a power button.)
UTC-318 User Manual

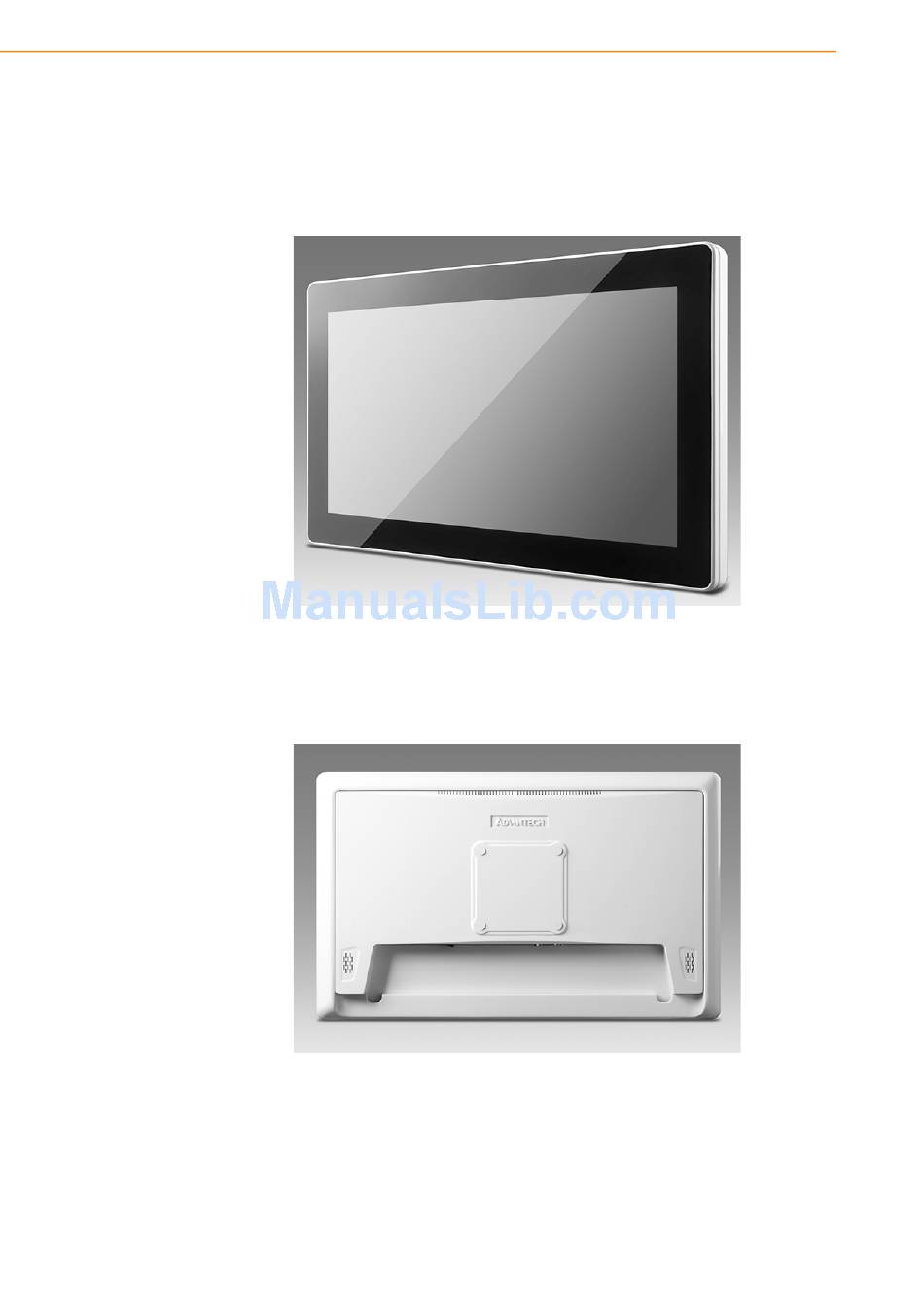

Figure 2.1 UTC-318 Front View
Figure 2.2 UTC-318 Rear View
